GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

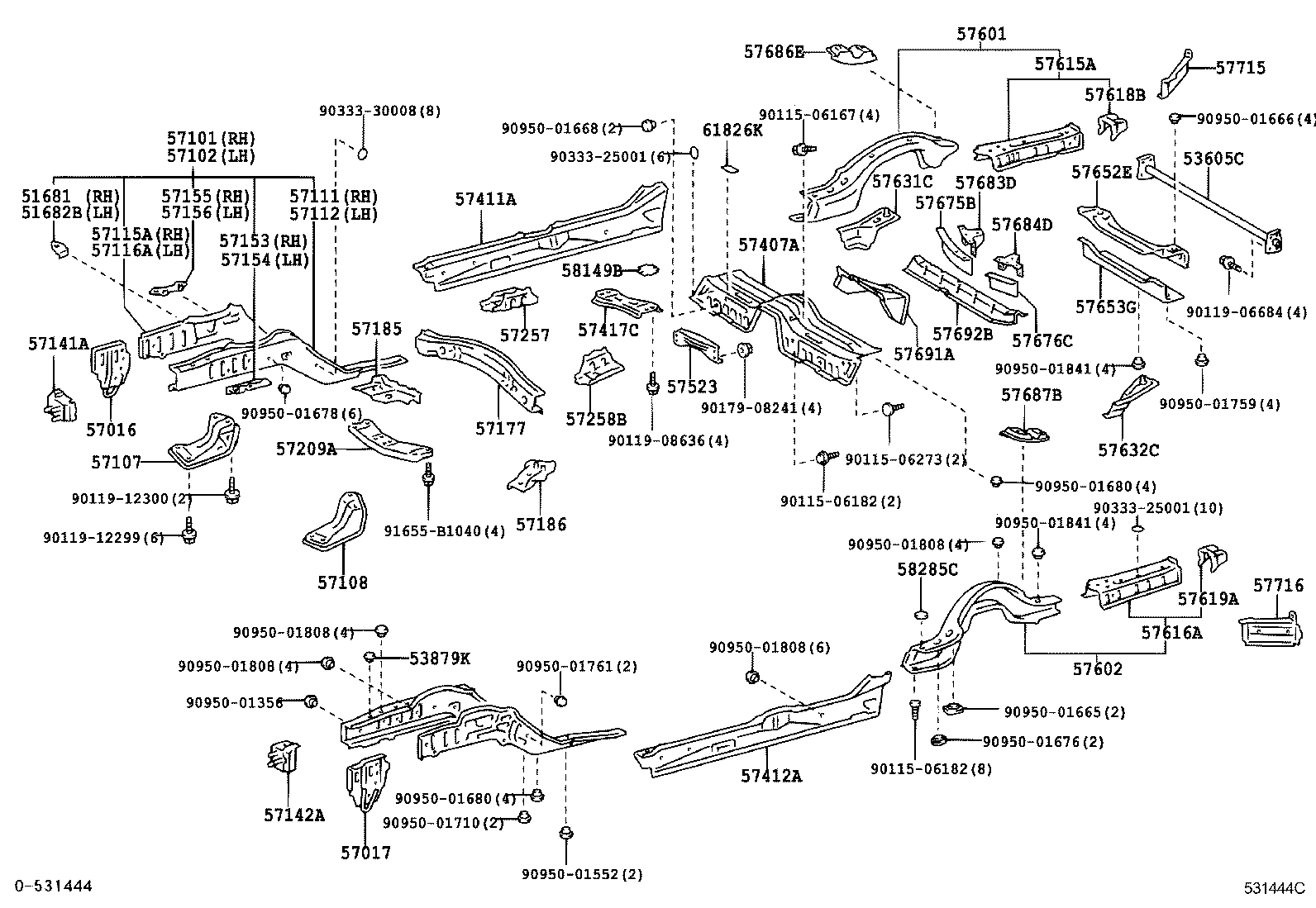

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-50030 |
GZG50 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-50030 |
GZG50 |
1 | ||
| 53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER | ||||
| 53605-40010 |
GZG50 |
1 | ||
| 53879K - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
GZG50 |
6 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-40010 |
GZG50 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-40010 |
GZG50 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-40030 |
GZG50 |
1 | ||
| 57101-40010 |
GZG50 |
1 | ||
| 57101-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-40030 |
GZG50 |
1 | ||
| 57102-40010 |
GZG50 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-40020 |
GZG50 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-40020 |
GZG50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-40010 |
GZG50 |
1 | ||
| 57111-40030 |
GZG50 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-40030 |
GZG50 |
1 | ||
| 57112-40010 |
GZG50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-40010 |
GZG50 |
1 | ||
| 57115-40010 |
GZG50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-40010 |
GZG50 |
1 | ||
| 57116-40010 |
GZG50 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-40010 |
GZG50 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-40010 |
GZG50 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-50010 |
GZG50 |
1 | ||
| 57155-50010 |
GZG50 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-50010 |
GZG50 |
1 | ||
| 57156-50010 |
GZG50 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57177-40010 |
GZG50..4FC |
1 | ||
| 57185 - REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH | ||||
| 57185-40010 |
GZG50 |
1 | ||
| 57185-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 57186 - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER LH | ||||
| 57186-40010 |
GZG50 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-40010 |
GZG50 |
1 | ||
| 57257 - BRACKET, ENGINE REAR SUPPORT MEMBER | ||||
| 57257-50020 |
GZG50 |
1 | ||
| 57258B - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-50020 |
GZG50 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-40021 |
GZG50 |
1 | ||
| 57407-40020 |
GZG50 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-40010 |
GZG50 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-40010 |
GZG50 |
1 | ||
| 57417C - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-50020 |
GZG50 |
1 | ||
| 57523 - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-40010 |
GZG50 |
1 | ||
| 57523-50020 |
GZG50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 57601-40030 |
GZG50 |
1 | ||
| 57601-40031 |
GZG50 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-40031 |
GZG50 |
1 | ||
| 57602-40030 |
GZG50 |
1 | ||
| 57602-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-40902 |
GZG50 CNGｼﾔ |
1 | ||
| 57615-40901 |
GZG50 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-40901 |
GZG50 |
1 | ||
| 57616-40902 |
GZG50 CNGｼﾔ |
1 | ||
| 57618B - REINFORCEMENT, REAR BUMPER RETAINER, RH | ||||
| 57618-40010 |
GZG50 |
2 | ||
| 57619A - REINFORCEMENT, REAR BUMPER RETAINER, LH | ||||
| 57619-40010 |
GZG50 |
1 | ||
| 57631C - EXTENSION, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57631-40010 |
GZG50 |
1 | ||
| 57632C - EXTENSION, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57632-40010 |
GZG50 |
1 | ||
| 57652E - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50020 |
GZG50 |
1 | ||
| 57652-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 57652-50021 |
GZG50 |
1 | ||
| 57653G - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57605-50900 |
GZG50 |
1 | ||
| 57715 - REINFORCEMENT, REAR BUMPER STAY, RH | ||||
| 57715-40010 |
GZG50 |
1 | ||
| 57716 - REINFORCEMENT, REAR BUMPER STAY, LH | ||||
| 57716-40010 |
GZG50 |
1 | ||
| 58149B - PLATE, FRONT FLOOR REINFORCE NUT | ||||
| 58149-50010 |
GZG50 |
2 | ||
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 58285-50010 |
GZG50 |
2 | ||
| 61826K - PLATE, NOISE CONTROL | ||||
| 61826-22010 |
GZG50 |
2 | ||
| Common parts | ||||
| 58225-40040 | ||||
| 58245-40010 | ||||
| 58394-40010 | ||||
| 90115-06167 | ||||
| 90115-06182 | ||||
| 90115-06273 | ||||
| 90119-06684 | ||||
| 90119-08636 | ||||
| 90119-12299 | ||||
| 90119-12300 | ||||
| 90179-08241 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01356 | ||||
| 90950-01552 | ||||
| 90950-01665 | ||||
| 90950-01666 | ||||
| 90950-01668 | ||||
| 90950-01676 | ||||
| 90950-01678 | ||||
| 90950-01680 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01761 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 91631-B0818 | ||||
| 91655-B1040 | ||||
(0301-0501)

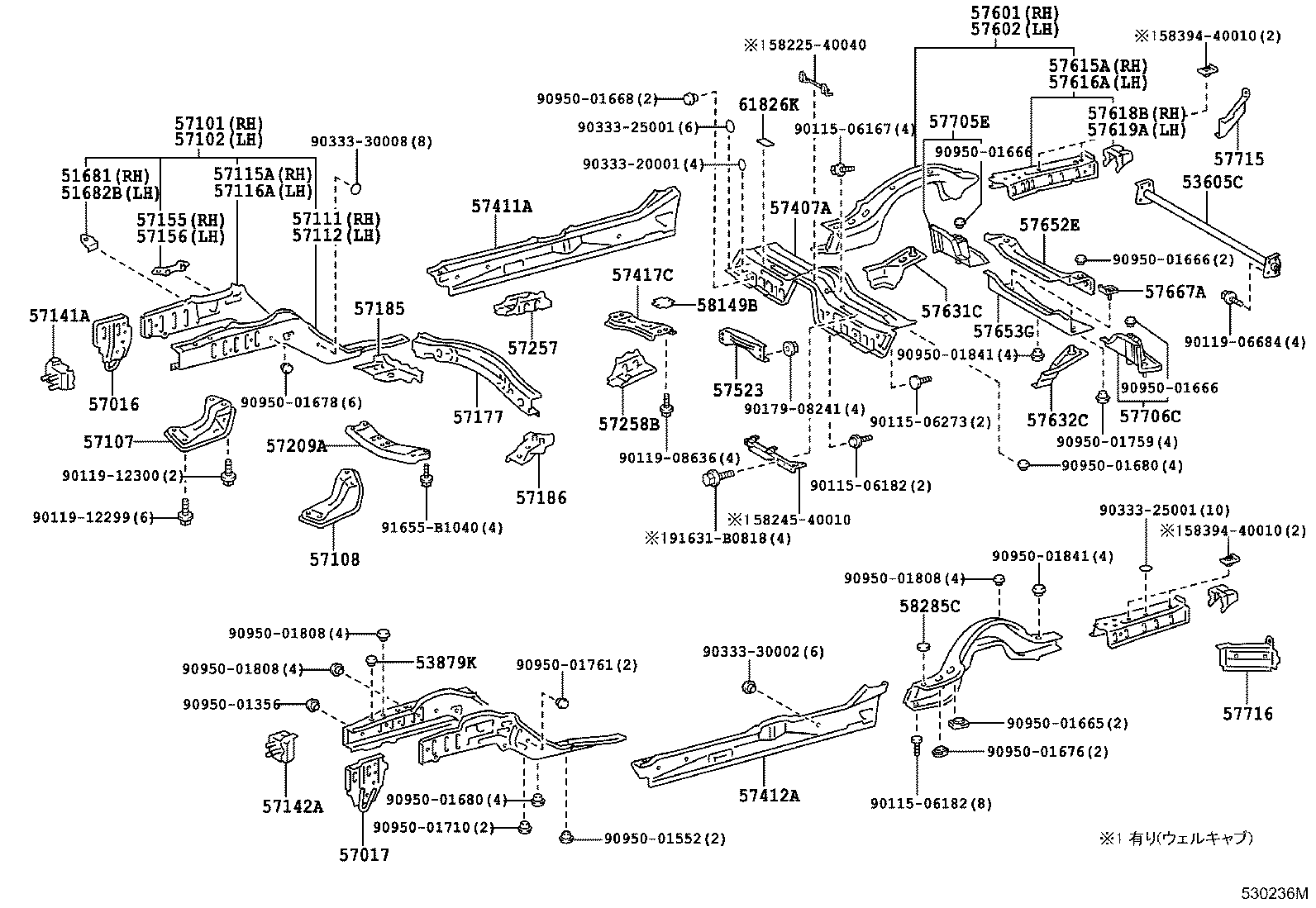

Click highlighted areas on diagram
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-50030 |
GZG50 |
1 | ||
| 53605C - BRACE SUB-ASSY, REAR FLOOR SIDE MEMBER | ||||
| 53605-40010 |
GZG50 |
1 | ||
| 53879K - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
GZG50 |
6 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-40010 |
GZG50 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-40010 |
GZG50 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-40030 |
GZG50 |
1 | ||
| 57101-40010 |
GZG50 |
1 | ||
| 57101-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-40030 |
GZG50 |
1 | ||
| 57102-40010 |
GZG50 |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-40020 |
GZG50 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-40020 |
GZG50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-40010 |
GZG50 |
1 | ||
| 57111-40030 |
GZG50 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-40030 |
GZG50 |
1 | ||
| 57112-40010 |
GZG50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-40010 |
GZG50 |
1 | ||
| 57115-40010 |
GZG50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-40010 |
GZG50 |
1 | ||
| 57116-40010 |
GZG50 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-40010 |
GZG50 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-40010 |
GZG50 |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-50020 |
GZG50 |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-50020 |
GZG50 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-50010 |
GZG50 |
1 | ||
| 57155-50010 |
GZG50 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-50010 |
GZG50 |
1 | ||
| 57156-50010 |
GZG50 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57177-40010 |
GZG50..4FC |
1 | ||
| 57185 - REINFORSEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER RH | ||||
| 57185-40010 |
GZG50 |
1 | ||
| 57185-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 57186 - REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 INNER LH | ||||
| 57186-40010 |
GZG50 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-40010 |
GZG50 |
1 | ||
| 57257 - BRACKET, ENGINE REAR SUPPORT MEMBER | ||||
| 57257-50020 |
GZG50 |
1 | ||
| 57258B - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-50020 |
GZG50 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-40021 |
GZG50 |
1 | ||
| 57407-40020 |
GZG50 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-40010 |
GZG50 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-40010 |
GZG50 |
1 | ||
| 57417C - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-50020 |
GZG50 |
1 | ||
| 57523 - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-40010 |
GZG50 |
1 | ||
| 57523-50020 |
GZG50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 57601-40030 |
GZG50 |
1 | ||
| 57601-40031 |
GZG50 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-40031 |
GZG50 |
1 | ||
| 57602-40030 |
GZG50 |
1 | ||
| 57602-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-40902 |
GZG50 CNGｼﾔ |
1 | ||
| 57615-40901 |
GZG50 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-40901 |
GZG50 |
1 | ||
| 57616-40902 |
GZG50 CNGｼﾔ |
1 | ||
| 57618B - REINFORCEMENT, REAR BUMPER RETAINER, RH | ||||
| 57618-40010 |
GZG50 |
2 | ||
| 57619A - REINFORCEMENT, REAR BUMPER RETAINER, LH | ||||
| 57619-40010 |
GZG50 |
1 | ||
| 57631C - EXTENSION, REAR FLOOR SIDE MEMBER, FRONT RH | ||||
| 57631-40010 |
GZG50 |
1 | ||
| 57632C - EXTENSION, REAR FLOOR SIDE MEMBER, FRONT LH | ||||
| 57632-40010 |
GZG50 |
1 | ||
| 57652E - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50020 |
GZG50 |
1 | ||
| 57652-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 57652-50021 |
GZG50 |
1 | ||
| 57653G - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57605-50900 |
GZG50 |
1 | ||
| 57675B - REINFORCEMENT, REAR FLOOR CROSS, NO.1 RH | ||||
| 57675-40010 |
GZG50 |
1 | ||
| 57676C - REINFORCEMENT, REAR FLOOR CROSS, NO.1 LH | ||||
| 57676-40010 |
GZG50 |
1 | ||
| 57683D - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-40010 |
GZG50 |
1 | ||
| 57684D - BRACKET, FUEL TANK MOUNTING, NO.2 | ||||
| 57684-40010 |
GZG50 |
1 | ||
| 57686E - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57686-40010 |
GZG50 |
1 | ||
| 57687B - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-40010 |
GZG50 |
1 | ||
| 57691A - BRACKET, FUEL TANK MOUNTING, FRONT CENTER | ||||
| 57691-40010 |
GZG50 |
1 | ||
| 57692B - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-40010 |
GZG50 |
1 | ||
| 57715 - REINFORCEMENT, REAR BUMPER STAY, RH | ||||
| 57715-40010 |
GZG50 |
1 | ||
| 57716 - REINFORCEMENT, REAR BUMPER STAY, LH | ||||
| 57716-40010 |
GZG50 |
1 | ||
| 58149B - PLATE, FRONT FLOOR REINFORCE NUT | ||||
| 58149-50010 |
GZG50 |
2 | ||
| 58285C - COVER, REAR FLOOR HOLE | ||||
| 58285-50010 |
GZG50 |
2 | ||
| 61826K - PLATE, NOISE CONTROL | ||||
| 61826-22010 |
GZG50 |
2 | ||
| Common parts | ||||
| 90115-06167 | ||||
| 90115-06182 | ||||
| 90115-06273 | ||||
| 90119-06684 | ||||
| 90119-08636 | ||||
| 90119-12299 | ||||
| 90119-12300 | ||||
| 90179-08241 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90950-01356 | ||||
| 90950-01552 | ||||
| 90950-01665 | ||||
| 90950-01666 | ||||
| 90950-01668 | ||||
| 90950-01676 | ||||
| 90950-01678 | ||||
| 90950-01680 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01761 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 91655-B1040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
