GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

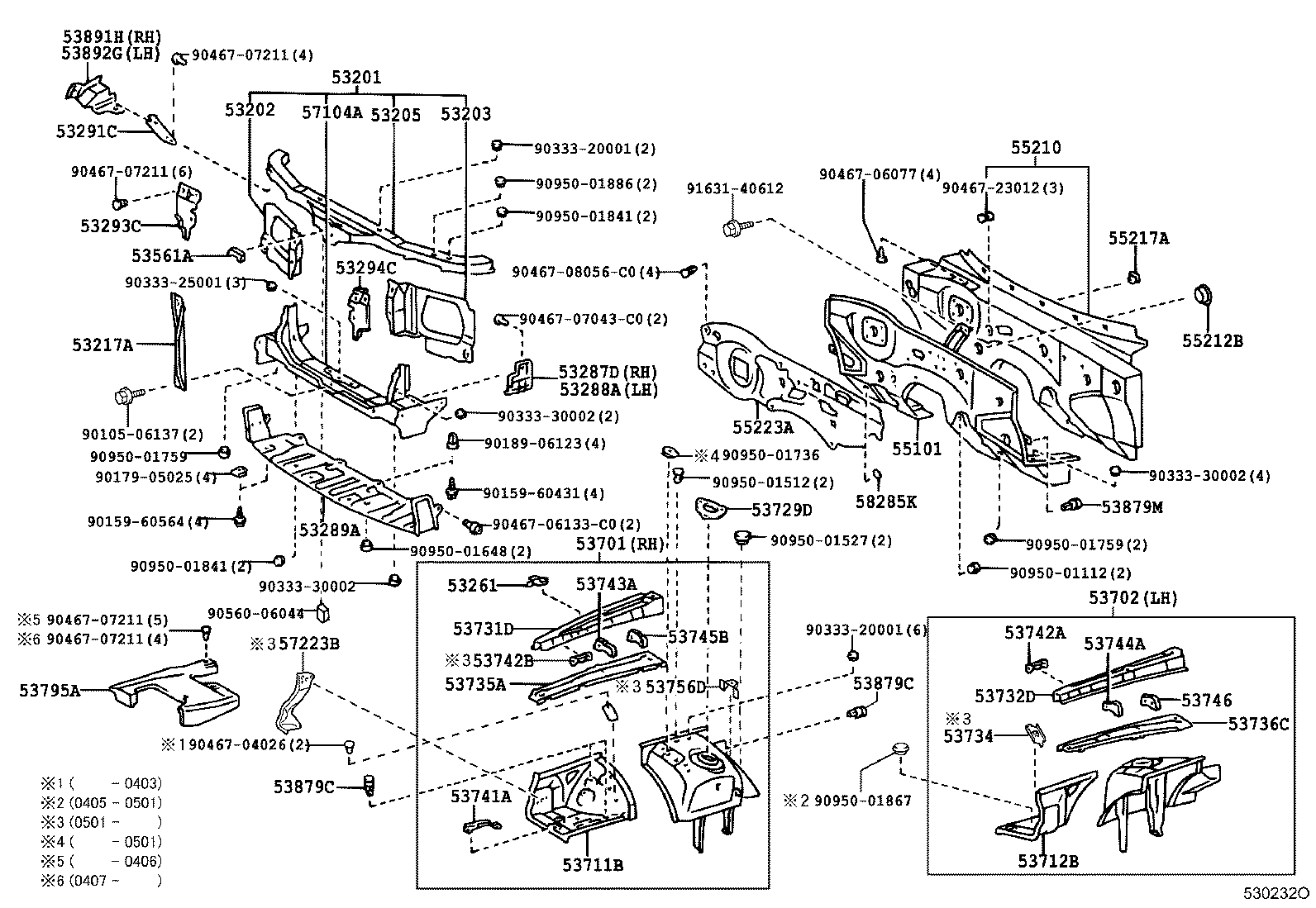

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-40030 |
GZG50 CNGｼﾔ |
1 | ||
| 53201-40010 |
GZG50 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-40010 |
GZG50 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-40020 |
GZG50 CNGｼﾔ |
1 | ||
| 53203-40010 |
GZG50 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-40030 |
GZG50 CNGｼﾔ |
1 | ||
| 53205-40010 |
GZG50 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-40010 |
GZG50 |
1 | ||
| 53261 - BRACKET, RADIATOR RESERVE TANK MOUNTING | ||||
| 53261-40010 |
GZG50 |
1 | ||
| 53287D - DUCT, COOL AIR INTAKE | ||||
| 53287-40010 |
GZG50 |
1 | ||
| 53288A - DUCT, COOL AIR INTAKE | ||||
| 53288-40010 |
GZG50 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-40010 |
GZG50 |
1 | ||
| 53291C - SEAL, RADIATOR SUPPORT TO FRAME | ||||
| 53291-40010 |
GZG50 |
2 | ||
| 53293C - DEFLECTOR, RADIATOR SIDE, RH | ||||
| 53293-40010 |
GZG50 |
1 | ||
| 53294C - DEFLECTOR, RADIATOR SIDE, LH | ||||
| 53294-40010 |
GZG50 |
1 | ||
| 53561A - GUIDE, HOOD AUXILIARY CATCH HOOK | ||||
| 53561-30010 |
GZG50 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-40050 |
GZG50 |
1 | ||
| 53701-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 53702-40020 |
GZG50 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-40020 |
GZG50 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 53712-40010 |
GZG50 |
1 | ||
| 53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3 | ||||
| 53729-40020 |
GZG50 |
2 | ||
| 53729-40021 |
GZG50 |
2 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-40020 |
GZG50 |
1 | ||
| 53731-40050 |
GZG50 CNGｼﾔ |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-40020 |
GZG50 |
1 | ||
| 53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH | ||||
| 53735-40020 |
GZG50 |
1 | ||
| 53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH | ||||
| 53736-40020 |
GZG50 |
1 | ||
| 53741A - PLATE, FENDER APRON REINFORCE, RH | ||||
| 53741-50020 |
GZG50 |
1 | ||
| 53742A - PLATE, FRONT FENDER APRON REINFORCEMENT | ||||
| 53742-40010 |
GZG50 |
1 | ||
| 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH | ||||
| 53743-40010 |
GZG50 |
1 | ||
| 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH | ||||
| 53744-40010 |
GZG50 |
1 | ||
| 53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH | ||||
| 53745-40010 |
GZG50 |
1 | ||
| 53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH | ||||
| 53746-40010 |
GZG50 |
1 | ||
| 53795A - COVER, ENGINE ROOM, SIDE | ||||
| 53795-40030 |
GZG50 |
1 | ||
| 53795-40010 |
GZG50 |
1 | ||
| 53879C - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
GZG50 |
6 | ||
| 53879C - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
GZG50 |
6 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 53879-50010 |
GZG50 |
2 | ||
| 53891H - SEAL, FRONT FENDER SPLASH SHIELD, FRONT RH | ||||
| 53891-40020 |
GZG50 |
1 | ||
| 53892G - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-40020 |
GZG50 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-40020 |
GZG50..4FC |
1 | ||
| 55101-40050 |
GZG50..4FC CNGｼﾔ |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-40010 |
GZG50 |
1 | ||
| 55212B - COVER, DASH PANEL INSULATOR, NO.2 | ||||
| 55212-40020 |
GZG50..4FC |
1 | ||
| 55217A - RETAINER, DASH PANEL SILENCER | ||||
| 55217-50020 |
GZG50 |
5 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-40040 |
GZG50 CNGｼﾔ |
1 | ||
| 55223-40010 |
GZG50 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-40010 |
GZG50 |
1 | ||
| 58285K - COVER, DASH PANEL HOLE | ||||
| 58285-50010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90159-60431 | ||||
| 90159-60564 | ||||
| 90179-05025 | ||||
| 90189-06123 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30002 | ||||
| 90467-04026 | ||||
| 90467-06077 | ||||
| 90467-06133C0 | ||||
| 90467-07043C0 | ||||
| 90467-07211 | ||||
| 90467-08056C0 | ||||
| 90467-23012 | ||||
| 90560-06044 | ||||
| 90950-01112 | ||||
| 90950-01512 | ||||
| 90950-01527 | ||||
| 90950-01648 | ||||
| 90950-01736 | ||||
| 90950-01759 | ||||
| 90950-01841 | ||||
| 90950-01867 | ||||
| 90950-01886 | ||||
| 91631-40612 | ||||
