GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

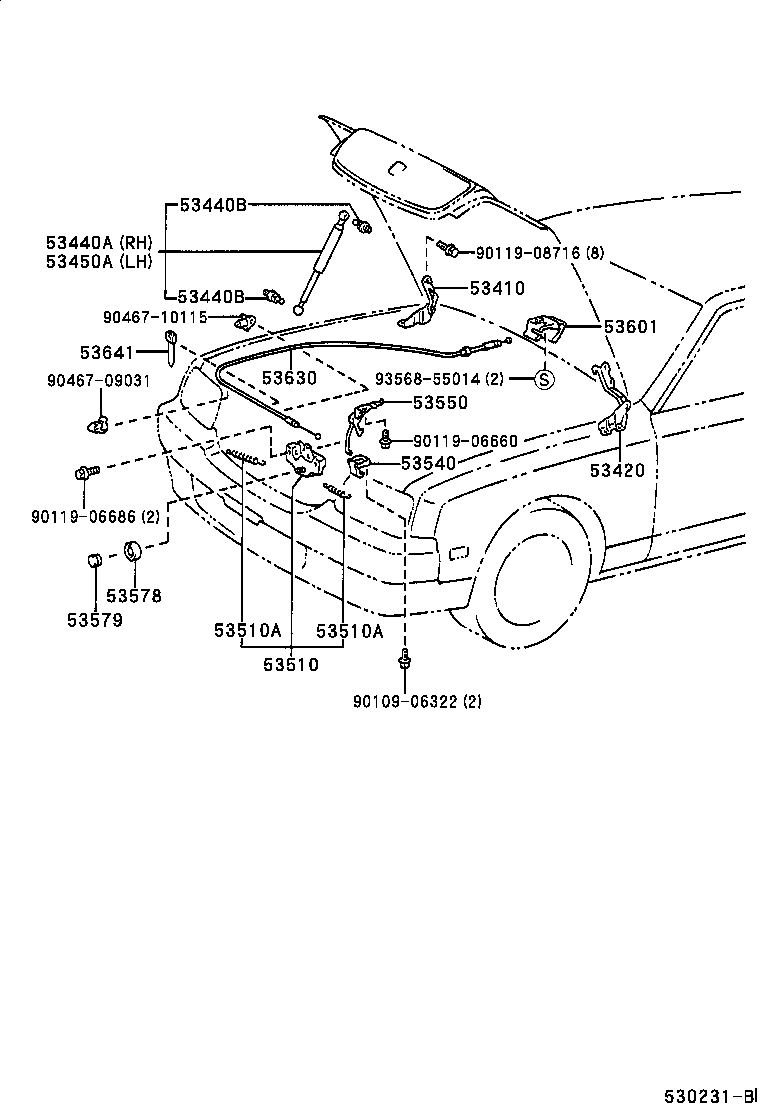

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440B 53450A 53510 53510A 53510A 53540 53550 53578 53579 53601 53630 53641 9010906322 9011906660 9011906686 9011908716 9046709031 9046710115 9356855014
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-40020

GZG50

CNGｼﾔ

 1
53410-40010

GZG50

 1
53420 - HINGE ASSY, HOOD, LH
53420-40020

GZG50

CNGｼﾔ

 1
53420-40010

GZG50

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-49105

GZG50

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

GZG50

 4
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

GZG50

 4
53450A - SUPPORT ASSY, HOOD, LH
53450-49075

GZG50

 1
53510 - LOCK ASSY, HOOD
53510-40020

GZG50

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GZG50

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18078

GZG50

線径=1.8,ｺｲﾙ巻数=18

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09050

GZG50

線径=0.9,ｺｲﾙ巻数=20.5

 1
90506-18078

GZG50

線径=1.8,ｺｲﾙ巻数=18

 1
53540 - LEVER ASSY, AUXILIARY CATCH RELEASE
53540-30020

GZG50

 1
53540-30010

GZG50

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-40011

GZG50

 1
53550-40010

GZG50

 1
53578 - NUT, HOOD LOCK
53578-50010

GZG50

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

GZG50

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-20060S4

GZG50

MD.GRAY,TRIM1#

 1
53601-20060E4

GZG50

ORCHID,TRIM4#

 1
53601-20060B2

GZG50

DK.BLUE GRAY,TRIM8#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-40030

GZG50

 1
53641 - CLAMP, HOOD LOCK CONTROL WIRE
90463-13003

GZG50

 1
Common parts
90109-06322
90119-06660
90119-06686
90119-08716
90467-09031
90467-10115
93568-55014
