GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

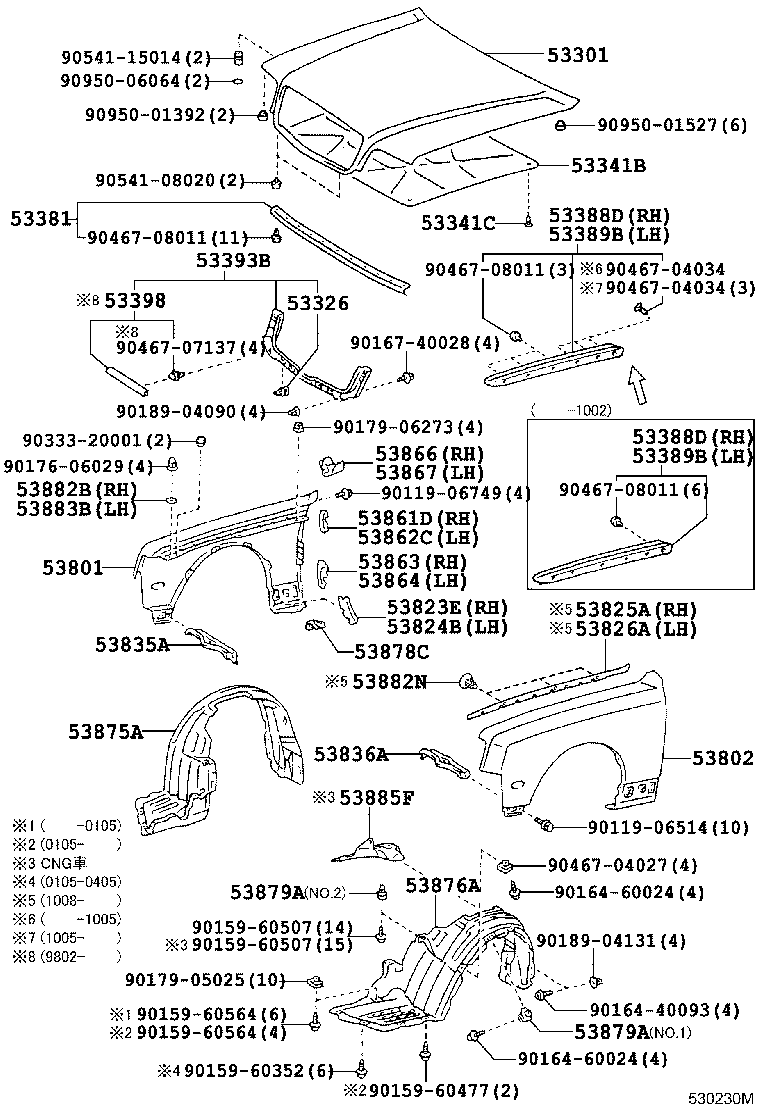

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-40080 |
GZG50 CNGｼﾔ |
1 | ||
| 53301-40020 |
GZG50 |
1 | ||
| 53326 - CLIP, HOOD PROTECTOR | ||||
| 53326-40010 |
GZG50 |
4 | ||
| 53326-40010 |
GZG50 |
4 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-40010 |
GZG50 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-08124 |
GZG50 |
18 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-40010 |
GZG50 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-40010 |
GZG50 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-40010 |
GZG50 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-40010 |
GZG50 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-40010 |
GZG50 |
1 | ||
| 53393B - PROTECTOR, HOOD, FRONT | ||||
| 53393-40010 |
GZG50 |
1 | ||
| 53393-40011 |
GZG50 |
1 | ||
| 53398 - SEAL, RADIATOR, LOWER | ||||
| 53398-40010 |
GZG50 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-40020 |
GZG50..4FC ｱﾘ(ﾄﾞｱﾐﾗ-) |
1 | ||
| 53801-40010 |
GZG50 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-40010 |
GZG50 |
1 | ||
| 53802-40020 |
GZG50..4FC ｱﾘ(ﾄﾞｱﾐﾗ-) |
1 | ||
| 53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-40010 |
GZG50 |
1 | ||
| 53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53823-40010 |
GZG50 |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-40010 |
GZG50 |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53836-40010 |
GZG50 |
1 | ||
| 53861D - SEAL, FRONT FENDER TO DOOR HINGE, UPPER RH | ||||
| 53861-40010 |
GZG50 |
1 | ||
| 53862C - SEAL, FRONT FENDER TO DOOR HINGE, UPPER LH | ||||
| 53862-40010 |
GZG50 |
1 | ||
| 53863 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH | ||||
| 53863-40010 |
GZG50 |
1 | ||
| 53864 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH | ||||
| 53864-40010 |
GZG50 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-40010 |
GZG50 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-40010 |
GZG50 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-40020 |
GZG50 |
1 | ||
| 53875-40070 |
GZG50 CNGｼﾔ |
1 | ||
| 53875-40050 |
GZG50 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-40040 |
GZG50 |
1 | ||
| 53876-40010 |
GZG50 |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-89102 |
GZG50 |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GZG50 NO.1 |
4 | ||
| 53879-50010 |
GZG50 CNGｼﾔ,NO.2 |
15 | ||
| 53879-50010 |
GZG50 NO.2 |
14 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GZG50 NO.1 |
4 | ||
| 53879-50010 |
GZG50 CNGｼﾔ,NO.2 |
15 | ||
| 53879-50010 |
GZG50 NO.2 |
14 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-50020 |
GZG50 |
4 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53882-50020 |
GZG50 |
4 | ||
| 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH | ||||
| 53885-40010 |
GZG50 CNGｼﾔ |
1 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90119-06749 | ||||
| 90159-60352 | ||||
| 90159-60477 | ||||
| 90159-60507 | ||||
| 90159-60564 | ||||
| 90164-40093 | ||||
| 90164-60024 | ||||
| 90167-40028 | ||||
| 90176-06029 | ||||
| 90179-05025 | ||||
| 90179-06273 | ||||
| 90189-04090 | ||||
| 90189-04131 | ||||
| 90333-20001 | ||||
| 90467-04027 | ||||
| 90467-04034 | ||||
| 90467-07137 | ||||
| 90467-08011 | ||||
| 90541-08020 | ||||
| 90541-15014 | ||||
| 90950-01392 | ||||
| 90950-01527 | ||||
| 90950-06064 | ||||
