GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

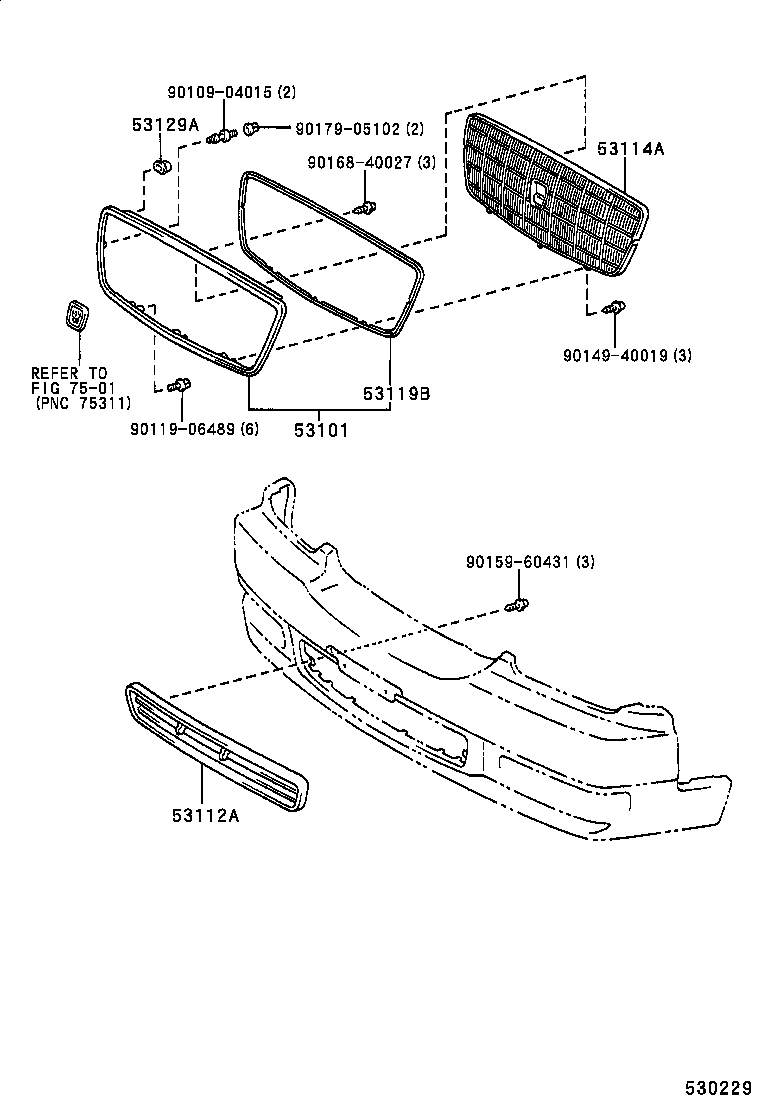

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-40010 |
GZG50 |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-40020 |
GZG50 |
1 | ||
| 53114A - GRILLE, RADIATOR, INNER | ||||
| 53114-40010 |
GZG50 |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-40010 |
GZG50 |
1 | ||
| 53129A - PIPE, RADIATOR GRILLE | ||||
| 53129-50010 |
GZG50 |
2 | ||
| Common parts | ||||
| 90109-04015 | ||||
| 90119-06489 | ||||
| 90149-40019 | ||||
| 90159-60431 | ||||
| 90168-40027 | ||||
| 90179-05102 | ||||
| Linked diagrams | ||||
| 7501 | ||||
