GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

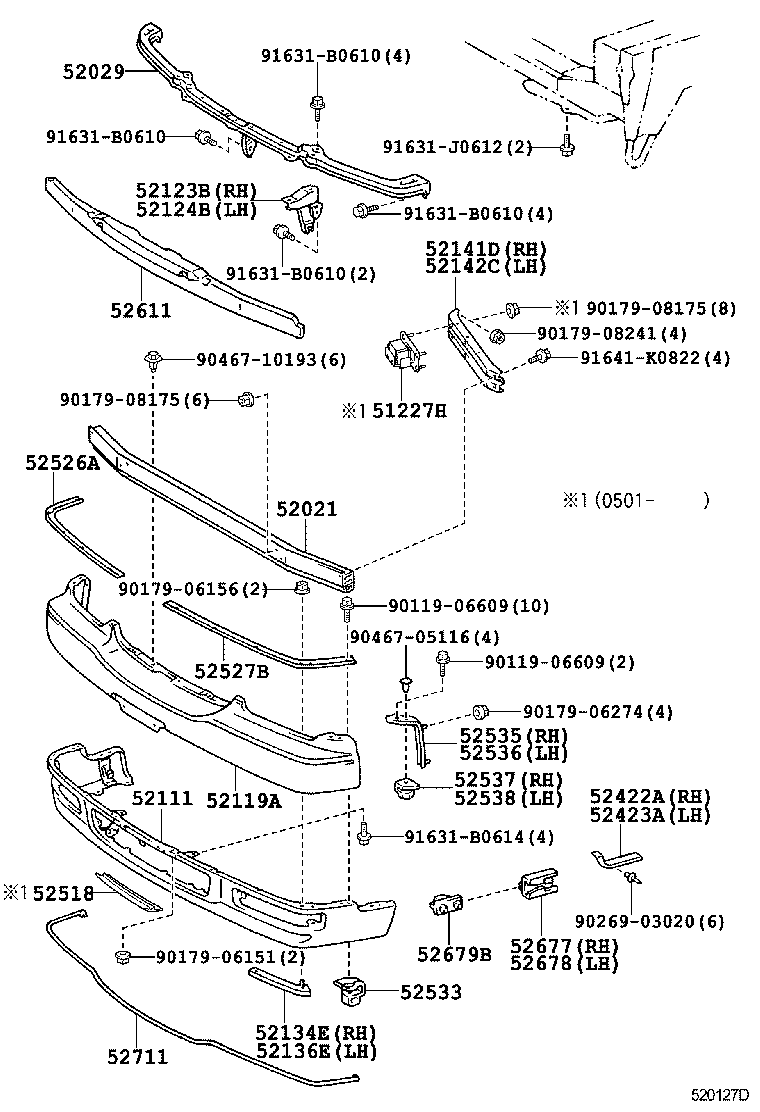

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-40010 |
GZG50 |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-40010 |
GZG50 |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52018-40901 |
GZG50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-40010C0 |
GZG50 BLACK,202 |
1 | ||
| 52119-40010B0 |
GZG50 GRAY ME.MS.,1B6 |
1 | ||
| 52119-40011C0 |
GZG50 BLACK,202 |
1 | ||
| 52119-40010J1 |
GZG50 LT.GRAYISH BLUE M.M.,8M3 |
1 | ||
| 52119-40011J0 |
GZG50 BLUE MC.,8J9 |
1 | ||
| 52119-40011B0 |
GZG50 GRAY ME.MS.,1B6 |
1 | ||
| 52119-40010J0 |
GZG50 BLUE MC.,8J9 |
1 | ||
| 52119-40011J1 |
GZG50 LT.GRAYISH BLUE M.M.MS.,8M3 |
1 | ||
| 52119-40011G0 |
GZG50 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 52119-40010G0 |
GZG50 DK.GREEN MC.P.I.O.,6N9 |
1 | ||
| 52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52123-40010 |
GZG50 |
1 | ||
| 52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52124-40020 |
GZG50 |
1 | ||
| 52134E - REINFORCEMENT, FRONT BUMPER, NO.4 | ||||
| 52134-40010 |
GZG50 |
1 | ||
| 52136E - REINFORCEMENT, FRONT BUMPER, NO.6 | ||||
| 52136-40010 |
GZG50 |
1 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-40010 |
GZG50 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52141-40010 |
GZG50 |
1 | ||
| 52422A - PAD, FRONT BUMPER, RH | ||||
| 52422-40010 |
GZG50 |
1 | ||
| 52423A - PAD, FRONT BUMPER, LH | ||||
| 52423-40010 |
GZG50 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52526-40010 |
GZG50 |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-40010 |
GZG50 |
1 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-40010 |
GZG50 |
8 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-40010 |
GZG50 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-40010 |
GZG50 |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-40010 |
GZG50 |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-40010 |
GZG50 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-40010 |
GZG50 |
1 | ||
| 52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH | ||||
| 52677-40010 |
GZG50 |
1 | ||
| 52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH | ||||
| 52677-40010 |
GZG50 |
1 | ||
| 52679B - SUPPORT, FRONT BUMPER SIDE, NO.3 | ||||
| 52679-40010 |
GZG50 |
2 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-40010 |
GZG50 |
1 | ||
| 52711-40011 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06609 | ||||
| 90179-06151 | ||||
| 90179-06156 | ||||
| 90179-06274 | ||||
| 90179-08175 | ||||
| 90179-08241 | ||||
| 90269-03020 | ||||
| 90467-05116 | ||||
| 90467-10193 | ||||
| 91631-B0610 | ||||
| 91631-B0614 | ||||
| 91631-J0612 | ||||
| 91641-K0822 | ||||
