GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

Click highlighted areas on diagram

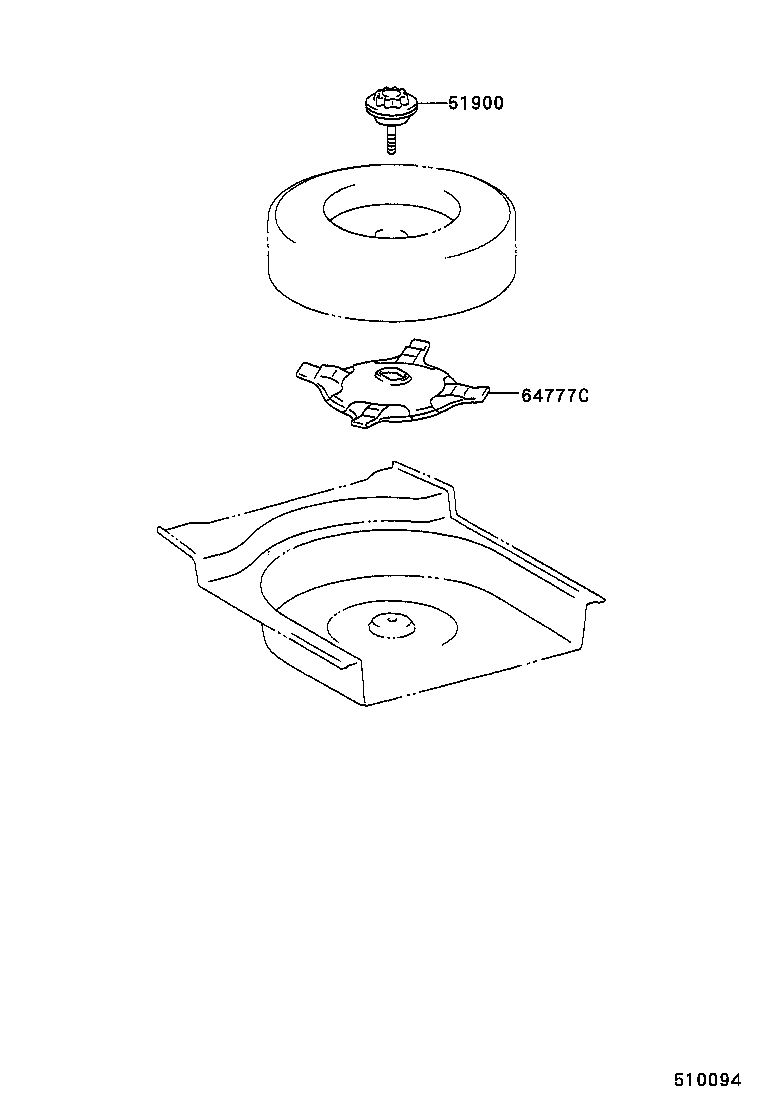

diagram 51900 64777C
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-50040

GZG50

 1
64777C - CUSHION, SPARE WHEEL
64777-40010

GZG50

 1

(0301-0501)

Click highlighted areas on diagram

CNGｼﾔ

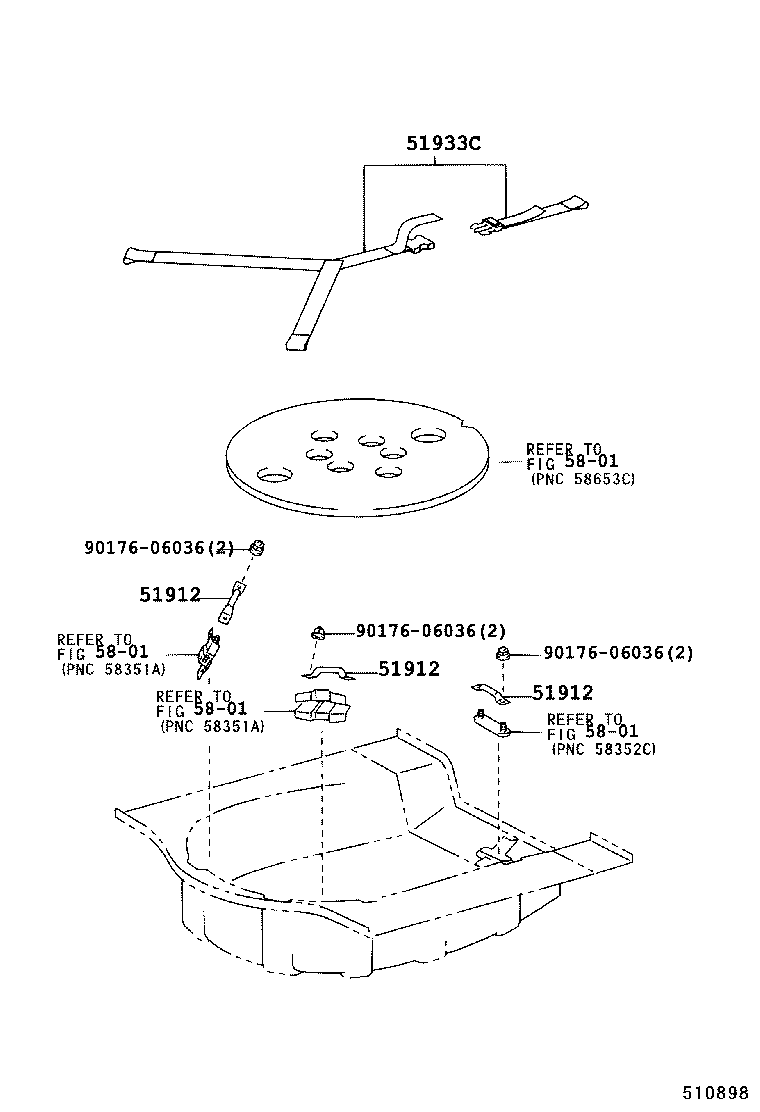

diagram 51912 51912 51912 51933C 5801 5801 5801 5801 9017606036 9017606036 9017606036
Part # Description Qty Price
51912 - BRACKET, SPARE WHEEL
51912-40020

GZG50

 3
51912 - BRACKET, SPARE WHEEL
51912-40020

GZG50

 3
51912 - BRACKET, SPARE WHEEL
51912-40020

GZG50

 3
51933C - STOPPER, SPARE WHEEL
51904-40010

GZG50

 1
Common parts
90176-06036
Linked diagrams
5801
