GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

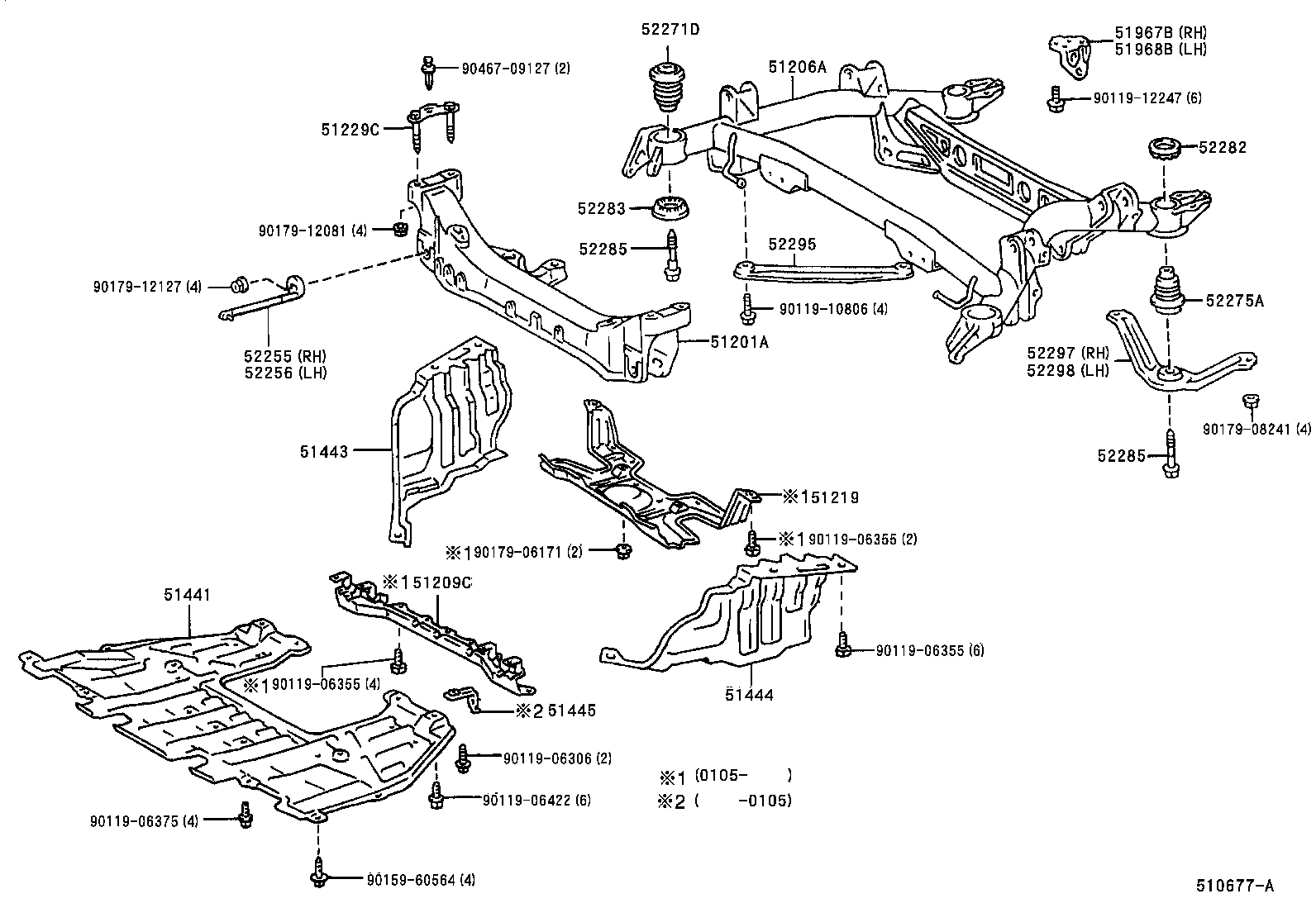

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-50040 |
GZG50 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-40011 |
GZG50 |
1 | ||
| 51206-40010 |
GZG50 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-50030 |
GZG50 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-50010 |
GZG50 |
1 | ||
| 51229C - PLATE, SUSPENSION MEMBER SET | ||||
| 51229-50020 |
GZG50 |
2 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-40020 |
GZG50 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-40030 |
GZG50 |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-40030 |
GZG50 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-50010 |
GZG50 |
4 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-50030 |
GZG50 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-50020 |
GZG50 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-50010 |
GZG50 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-50010 |
GZG50 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-40010 |
GZG50 |
2 | ||
| 52271-40011 |
GZG50 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-40010 |
GZG50 |
2 | ||
| 52275-50030 |
GZG50 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-50030 |
GZG50 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-50030 |
GZG50 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GZG50 |
4 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GZG50 |
4 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-50010 |
GZG50 |
2 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-50020 |
GZG50 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-50020 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06306 | ||||
| 90119-06355 | ||||
| 90119-06375 | ||||
| 90119-06422 | ||||
| 90119-10806 | ||||
| 90119-12247 | ||||
| 90159-60564 | ||||
| 90179-06171 | ||||
| 90179-08241 | ||||
| 90179-12081 | ||||
| 90179-12127 | ||||
| 90467-09127 | ||||
