GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

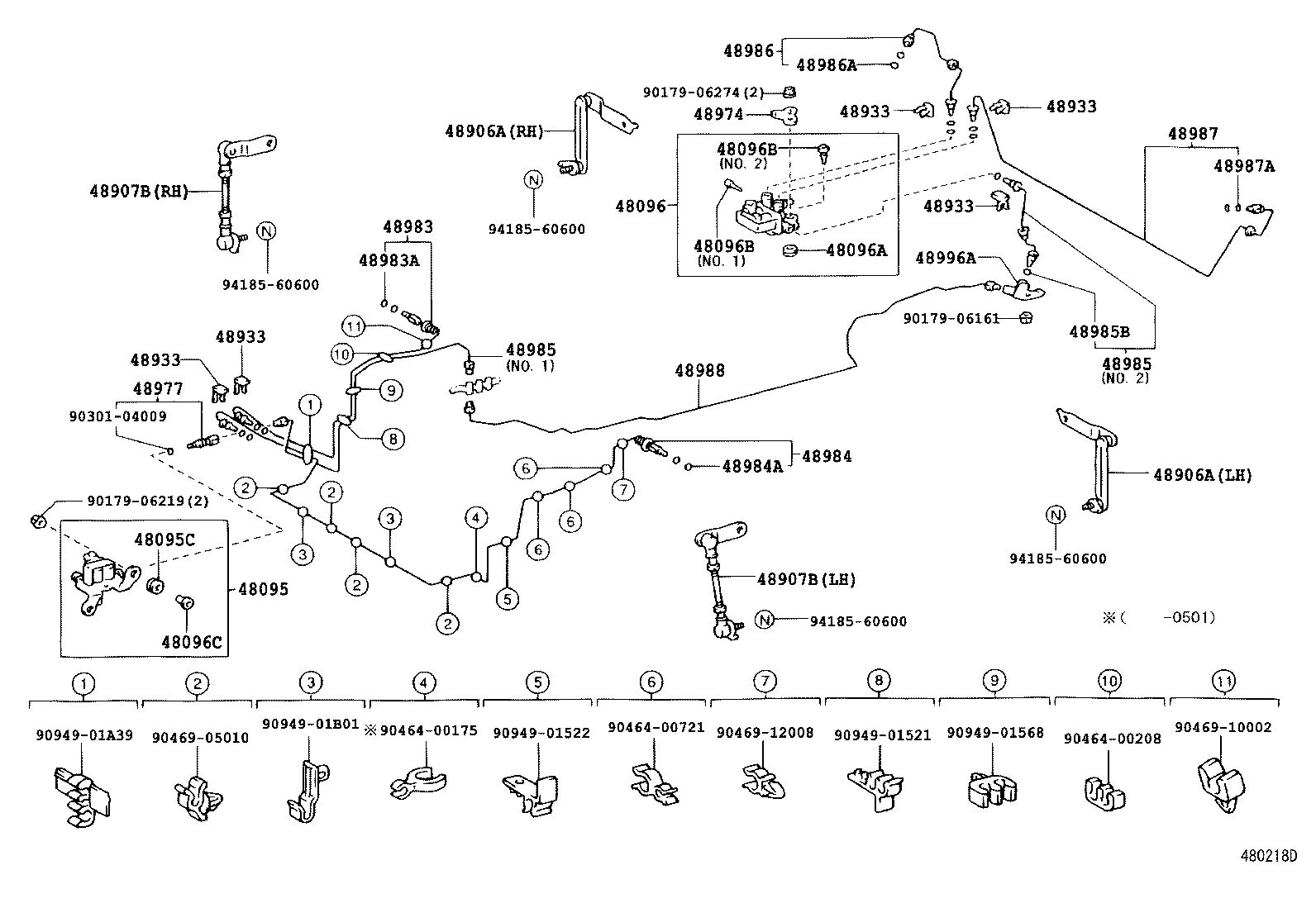

ILLUST NO. 1 OF 2(9704- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-50030 |
GZG50 |
1 | ||
| 48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1) | ||||
| 90385-09010 |
GZG50 |
2 | ||
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-50030 |
GZG50 |
1 | ||
| 48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90389-06054 |
GZG50 |
2 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-07039 |
GZG50 NO.2 |
1 | ||
| 90541-05023 |
GZG50 NO.1 |
2 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-07039 |
GZG50 NO.2 |
1 | ||
| 90541-05023 |
GZG50 NO.1 |
2 | ||
| 48096C - SPACER, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90561-07014 |
GZG50 |
2 | ||
| 48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-40091 |
GZG50 右側 |
1 | ||
| 48906-50030 |
GZG50 右側 |
1 | ||
| 48906-50040 |
GZG50 左側 |
1 | ||
| 48906-40101 |
GZG50 左側 |
1 | ||
| 48906A - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, REAR | ||||
| 48906-40091 |
GZG50 右側 |
1 | ||
| 48906-50030 |
GZG50 右側 |
1 | ||
| 48906-50040 |
GZG50 左側 |
1 | ||
| 48906-40101 |
GZG50 左側 |
1 | ||
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-50070 |
GZG50 右側 |
1 | ||
| 48907-50080 |
GZG50 左側 |
1 | ||
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-50070 |
GZG50 右側 |
1 | ||
| 48907-50080 |
GZG50 左側 |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GZG50 |
7 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GZG50 |
7 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GZG50 |
7 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GZG50 |
7 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GZG50 |
7 | ||
| 48974 - BRACKET, HEIGHT CONTROL VALVE | ||||
| 48974-50010 |
GZG50 |
1 | ||
| 48977 - UNION, HEIGHT CONTROL | ||||
| 48977-30010 |
GZG50 |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-40030 |
GZG50 |
1 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
GZG50 |
4 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-40030 |
GZG50 |
1 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
GZG50 |
4 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-50050 |
GZG50 NO.2 |
1 | ||
| 48985-40010 |
GZG50 NO.1 |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-50050 |
GZG50 NO.2 |
1 | ||
| 48985-40010 |
GZG50 NO.1 |
1 | ||
| 48985B - RING, O(FOR HEIGHT CONTROL TUBE NO.5) | ||||
| 90301-04006 |
GZG50 |
2 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-50030 |
GZG50 |
1 | ||
| 48986A - RING, O(FOR HEIGHT CONTROL NO.6 TUBE) | ||||
| 90301-04004 |
GZG50 |
4 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-40010 |
GZG50 |
1 | ||
| 48987A - RING, O(FOR HEIGHT CONTROL NO.7 TUBE) | ||||
| 90301-04004 |
GZG50 |
4 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-40010 |
GZG50 |
1 | ||
| 48996A - WAY, NO.3(FOR REAR HEIGHT CONTROL TUBE) | ||||
| 90904-12032 |
GZG50 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90179-06219 | ||||
| 90179-06274 | ||||
| 90301-04009 | ||||
| 90464-00175 | ||||
| 90464-00208 | ||||
| 90464-00721 | ||||
| 90469-05010 | ||||
| 90469-10002 | ||||
| 90469-12008 | ||||
| 90949-01521 | ||||
| 90949-01522 | ||||
| 90949-01568 | ||||
| 90949-01A39 | ||||
| 90949-01B01 | ||||
| 94185-60600 | ||||

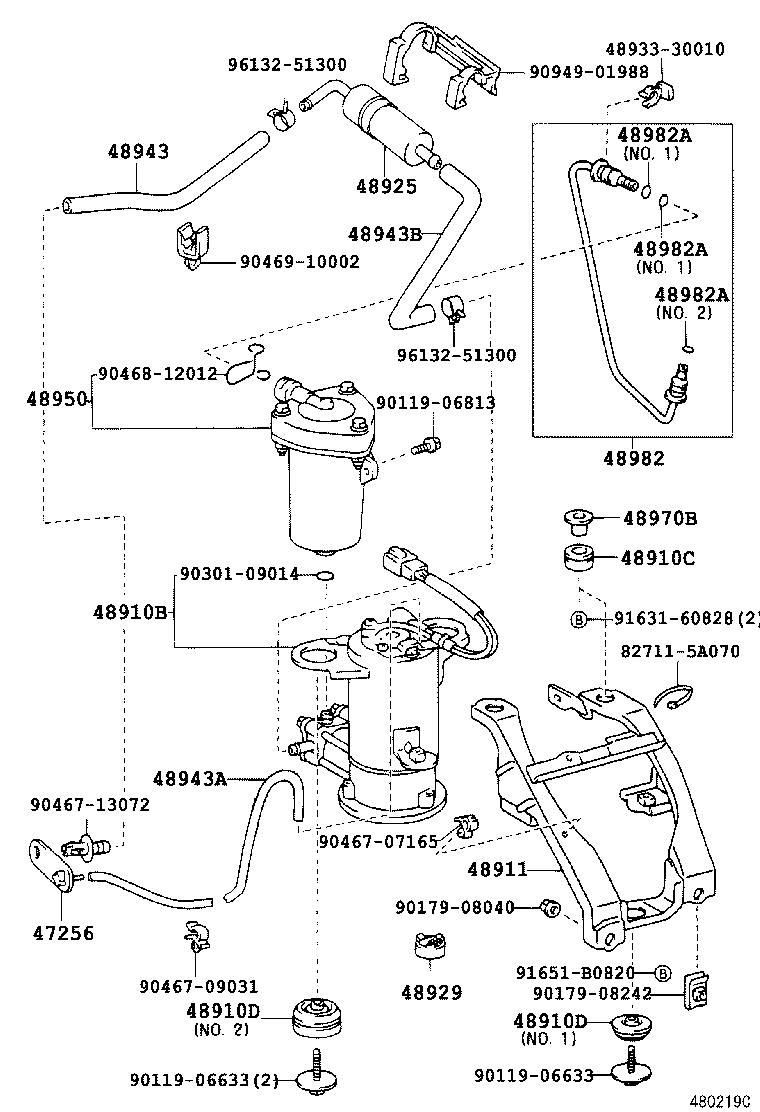

ILLUST NO. 2 OF 2(9704-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47256 - GROMMET, CAP | ||||
| 47256-40010 |
GZG50 |
1 | ||
| 48910B - COMPRESSOR ASSY, HEIGHT CONTROL | ||||
| 48910-40070 |
GZG50 |
1 | ||
| 48910C - BUSH, NO.1(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90385-12013 |
GZG50 |
2 | ||
| 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06033 |
GZG50 NO.1 |
1 | ||
| 90389-06053 |
GZG50 NO.2 |
2 | ||
| 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06033 |
GZG50 NO.1 |
1 | ||
| 90389-06053 |
GZG50 NO.2 |
2 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-40060 |
GZG50 |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-50030 |
GZG50 |
1 | ||
| 48929 - SILENCER, HEIGHT CONTROL COMPRESSOR | ||||
| 48929-40010 |
GZG50 |
1 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-50030 |
GZG50 |
1 | ||
| 48943A - HOSE, HEIGHT CONTROL, NO.3 | ||||
| 48943-40020 |
GZG50 |
1 | ||
| 48943B - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48943-40010 |
GZG50 |
1 | ||
| 48950 - DRYER ASSY, HEIGHT CONTROL | ||||
| 48950-50030 |
GZG50 |
1 | ||
| 48970B - SPACER(FOR HEIGHT CONTROL COMPRESSOR BRACKET) | ||||
| 90561-09022 |
GZG50 |
2 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-40040 |
GZG50 |
1 | ||
| 48982-40050 |
GZG50 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
GZG50 NO.1 |
2 | ||
| 90301-04006 |
GZG50 NO.2 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
GZG50 NO.1 |
2 | ||
| 90301-04006 |
GZG50 NO.2 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
GZG50 NO.1 |
2 | ||
| 90301-04006 |
GZG50 NO.2 |
1 | ||
| Common parts | ||||
| 48933-30010 | ||||
| 82711-5A070 | ||||
| 90119-06633 | ||||
| 90119-06813 | ||||
| 90179-08040 | ||||
| 90179-08242 | ||||
| 90301-09014 | ||||
| 90467-07165 | ||||
| 90467-09031 | ||||
| 90467-13072 | ||||
| 90468-12012 | ||||
| 90469-10002 | ||||
| 90949-01988 | ||||
| 91631-60828 | ||||
| 91651-B0820 | ||||
| 96132-51300 | ||||
