GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704-0501)

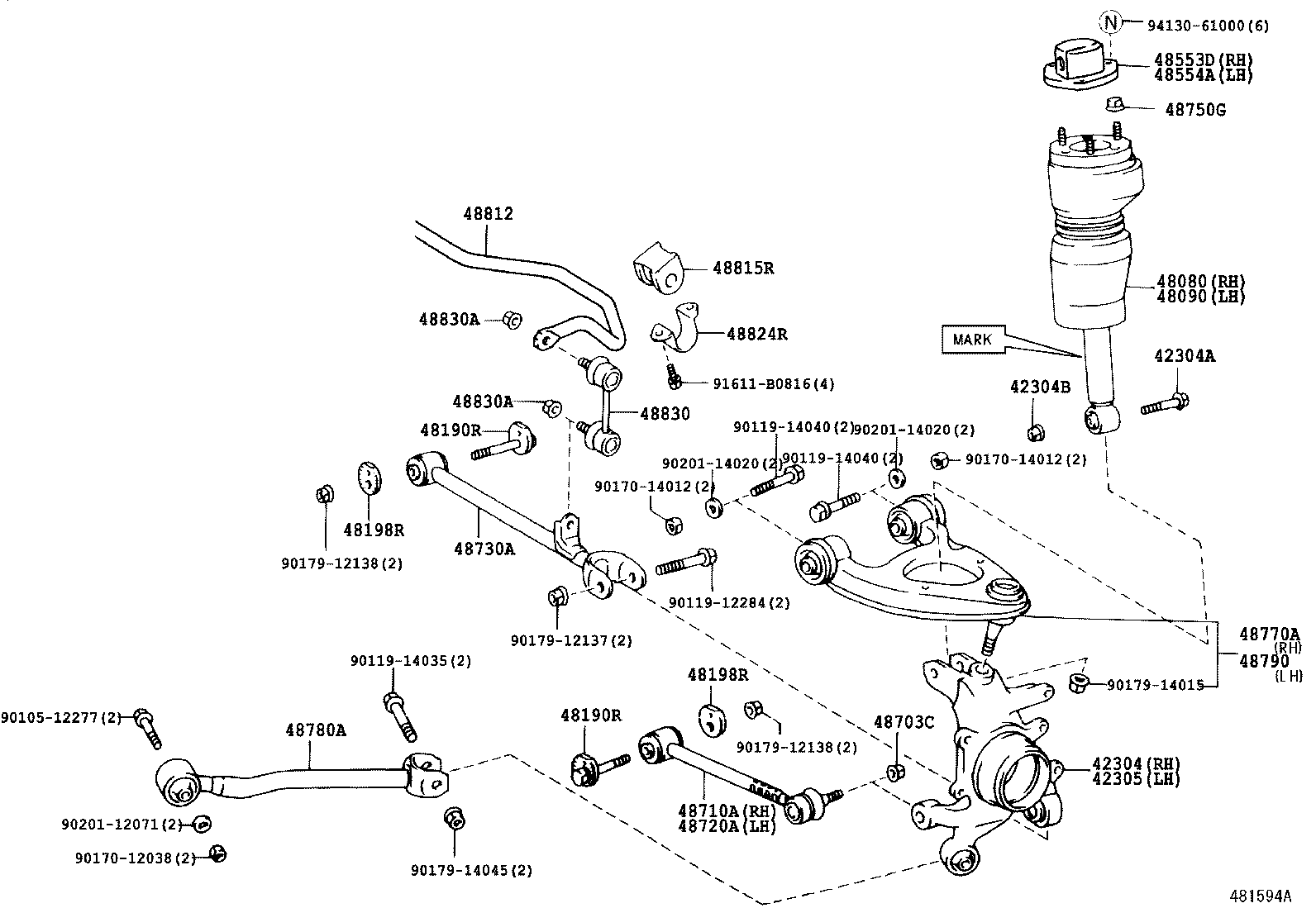

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-40010 |
GZG50 |
1 | ||
| 42304A - BOLT (FOR REAR AXLE CARRIER) | ||||
| 90119-14025 |
GZG50 |
2 | ||
| 42304B - NUT (FOR REAR AXLE CARRIER) | ||||
| 90179-14037 |
GZG50 |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-40010 |
GZG50 |
1 | ||
| 48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER | ||||
| 48080-40030 |
GZG50 ﾏｰｸ 48080−40030 |
1 | ||
| 48080-40010 |
GZG50 ﾏｰｸ 48080−40010 |
1 | ||
| 48080-40020 |
GZG50 ﾏｰｸ 48080−40020 |
1 | ||
| 48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER | ||||
| 48090-40010 |
GZG50 ﾏｰｸ 48090−40010 |
1 | ||
| 48090-40030 |
GZG50 ﾏｰｸ 48090−40030 |
1 | ||
| 48090-40020 |
GZG50 ﾏｰｸ 48090−40020 |
1 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22030 |
GZG50 |
4 | ||
| 48190R - CAM ASSY, CAMBER ADJUST | ||||
| 48190-22030 |
GZG50 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GZG50 |
4 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-22020 |
GZG50 |
4 | ||
| 48553D - CAP, REAR SHOCK ABSORBER, RH | ||||
| 48553-40020 |
GZG50 |
1 | ||
| 48554A - CAP, REAR SHOCK ABSORBER, LH | ||||
| 48553-40020 |
GZG50 |
1 | ||
| 48703C - NUT(FOR REAR SUSPENSION ARM) | ||||
| 90179-12027 |
GZG50 |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-50050 |
GZG50 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48720-50030 |
GZG50 |
1 | ||
| 48730A - ARM ASSY, REAR SUSPENSION, NO.2 | ||||
| 48730-50021 |
GZG50 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90179-10088 |
GZG50 |
6 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-59015 |
GZG50 |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-50020 |
GZG50 |
2 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-59015 |
GZG50 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-40070 |
GZG50 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-40060 |
GZG50 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-22060 |
GZG50 |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-22041 |
GZG50 |
2 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12052 |
GZG50 |
4 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12052 |
GZG50 |
4 | ||
| Common parts | ||||
| 90105-12277 | ||||
| 90119-12284 | ||||
| 90119-14035 | ||||
| 90119-14040 | ||||
| 90170-12038 | ||||
| 90170-14012 | ||||
| 90179-12137 | ||||
| 90179-12138 | ||||
| 90179-14015 | ||||
| 90179-14045 | ||||
| 90201-12071 | ||||
| 90201-14020 | ||||
| 91611-B0816 | ||||
| 94130-61000 | ||||
