GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

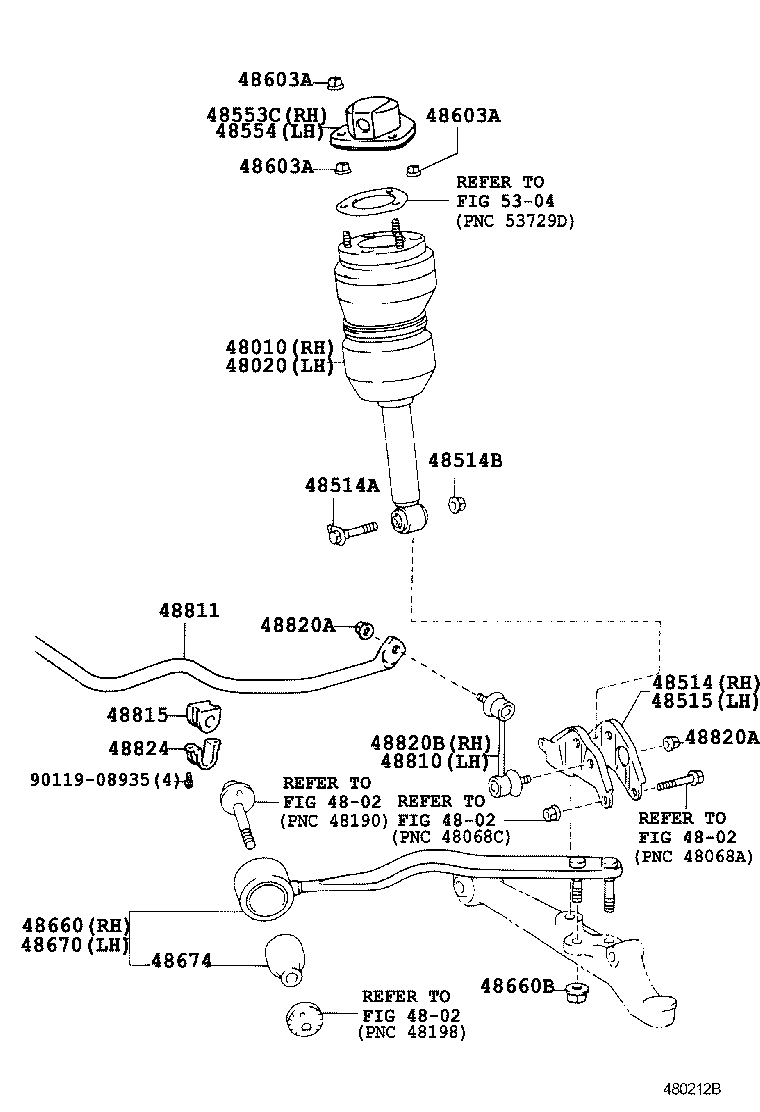

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-40050 |
GZG50 |
1 | ||
| 48010-40070 |
GZG50 |
1 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48010-40050 |
GZG50 |
1 | ||
| 48010-40070 |
GZG50 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-50011 |
GZG50 |
1 | ||
| 48514A - BOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90105-14087 |
GZG50 |
2 | ||
| 48514B - NUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER) | ||||
| 90179-14045 |
GZG50 |
2 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-50011 |
GZG50 |
1 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-40030 |
GZG50 |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48553-40010 |
GZG50 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10088 |
GZG50 |
12 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10088 |
GZG50 |
12 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-10088 |
GZG50 |
12 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-40020 |
GZG50 |
1 | ||
| 48660-40021 |
GZG50 |
1 | ||
| 48660B - NUT(FOR STRUT BAR) | ||||
| 90179-14025 |
GZG50 |
4 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-40011 |
GZG50 |
1 | ||
| 48670-40010 |
GZG50 |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-40051 |
GZG50 |
2 | ||
| 48674-40050 |
GZG50 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-50011 |
GZG50 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-40080 |
GZG50 CNG ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 48811-40070 |
GZG50 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-50111 |
GZG50 |
2 | ||
| 48815-50112 |
GZG50 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12128 |
GZG50 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12128 |
GZG50 |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-50011 |
GZG50 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-50020 |
GZG50 |
2 | ||
| Common parts | ||||
| 90119-08935 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5304 | ||||
