GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

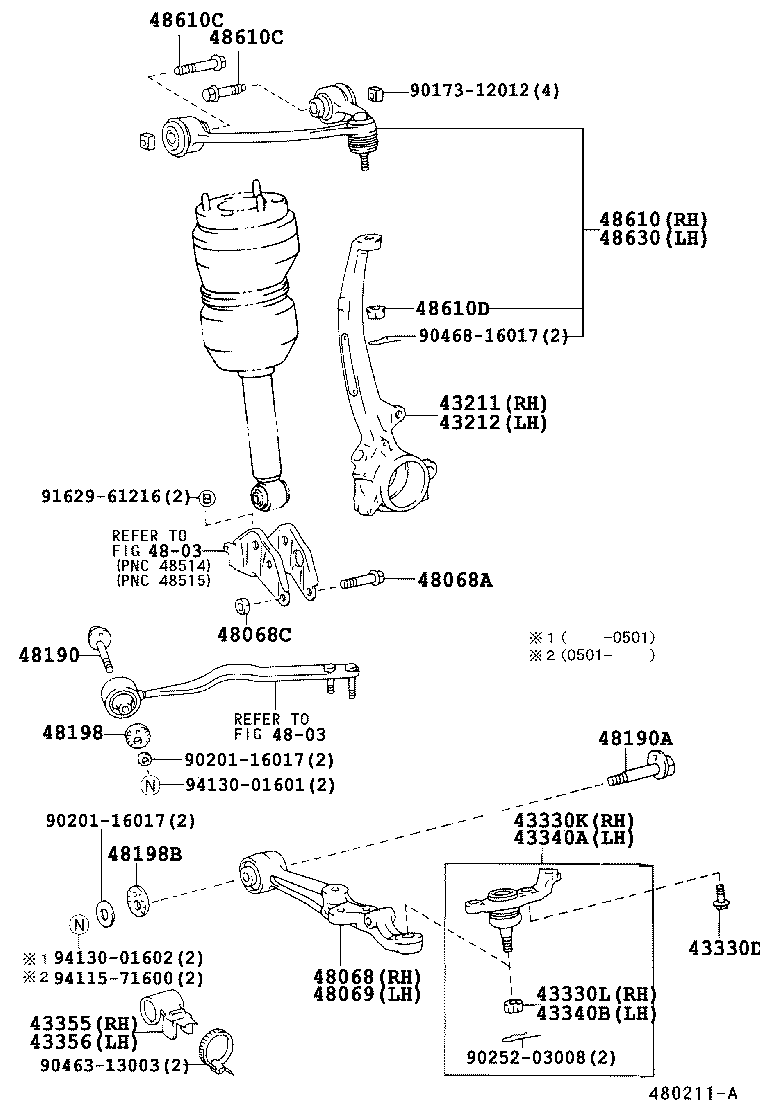

ILLUST NO. 1 OF 2(9704- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-50050 |
GZG50 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-50050 |
GZG50 |
1 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90105-12141 |
GZG50 |
4 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-59036 |
GZG50 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-16007 |
GZG50 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-59036 |
GZG50 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-16007 |
GZG50 |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-50010 |
GZG50 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-50010 |
GZG50 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-50020 |
GZG50 |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90105-12281 |
GZG50 |
2 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90179-12025 |
GZG50 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-50020 |
GZG50 |
1 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-24020 |
GZG50 |
2 | ||
| 48190A - CAM ASSY, CAMBER ADJUST, NO.2 | ||||
| 48190-50040 |
GZG50 |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-50030 |
GZG50 |
2 | ||
| 48198B - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-50020 |
GZG50 |
2 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-59015 |
GZG50 |
1 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90105-12258 |
GZG50 |
4 | ||
| 48610C - BOLT(FOR SUSPENSION UPPER ARM) | ||||
| 90105-12258 |
GZG50 |
4 | ||
| 48610D - NUT(FOR SUSPENSION UPPER ARM) | ||||
| 90171-12002 |
GZG50 |
2 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-59015 |
GZG50 |
1 | ||
| Common parts | ||||
| 90173-12012 | ||||
| 90201-16017 | ||||
| 90252-03008 | ||||
| 90463-13003 | ||||
| 90468-16017 | ||||
| 91629-61216 | ||||
| 94115-71600 | ||||
| 94130-01601 | ||||
| 94130-01602 | ||||
| Linked diagrams | ||||
| 4803 | ||||

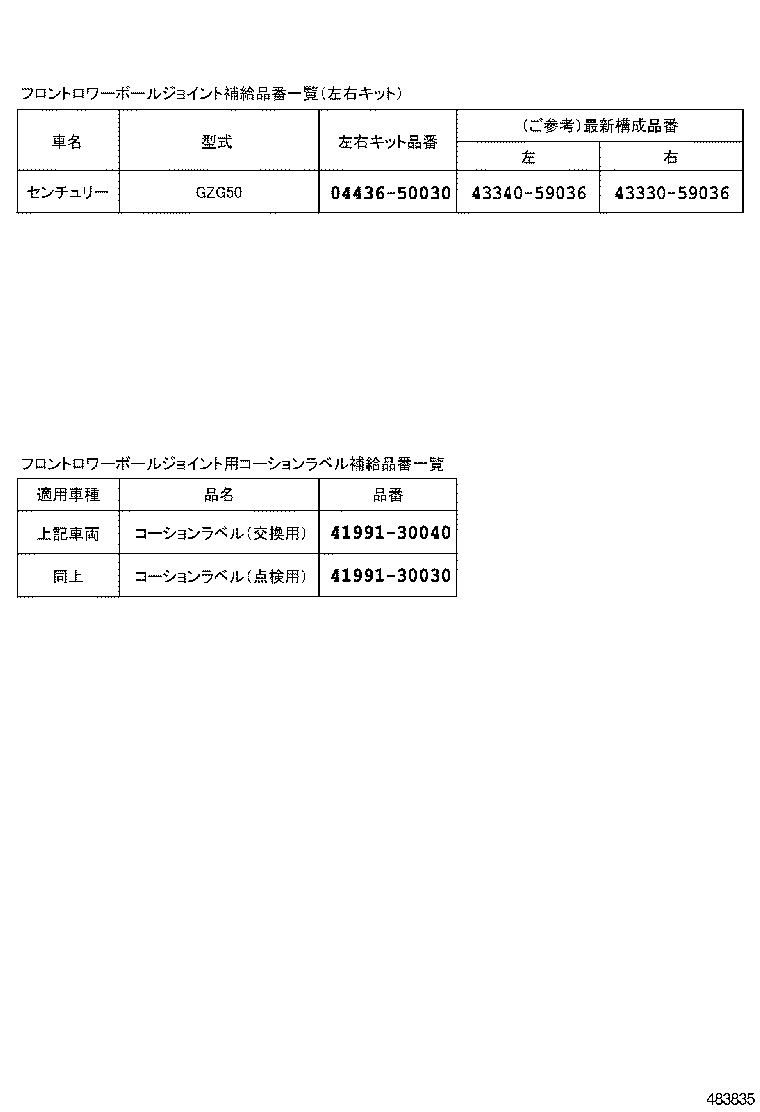

ILLUST NO. 2 OF 2(9704- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 04436-50030 | ||||
| 41991-30030 | ||||
| 41991-30040 | ||||
