GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

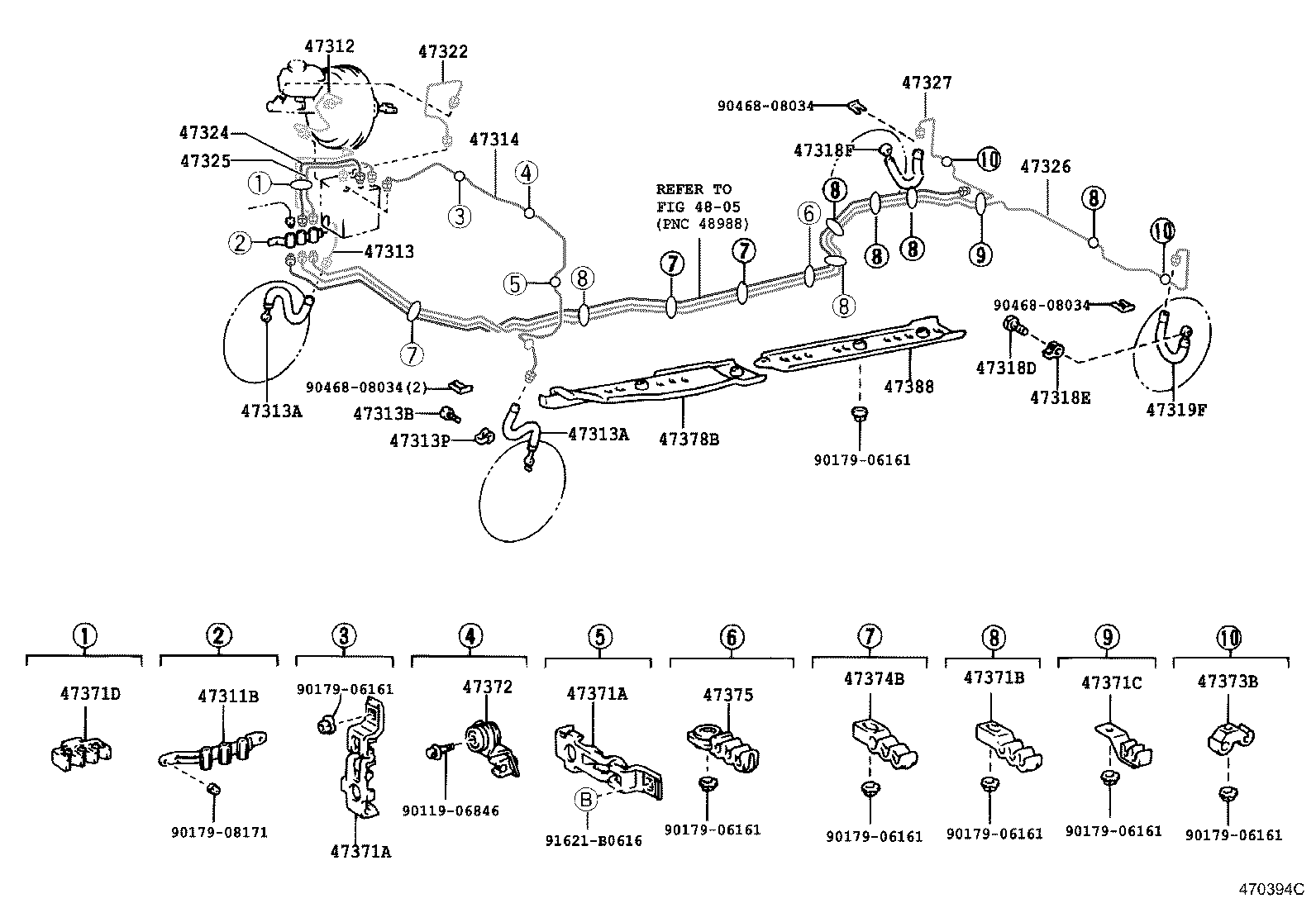

ILLUST NO. 1 OF 2(9704-0004)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12048 |
GZG50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-40101 |
GZG50 |
1 | ||
| 47312-40080 |
GZG50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-40090 |
GZG50 |
1 | ||
| 47313-40120 |
GZG50 CNGｼﾔ |
1 | ||
| 47313-40110 |
GZG50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-40110 |
GZG50 |
1 | ||
| 47314-40090 |
GZG50 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-40070 |
GZG50 |
1 | ||
| 47322-40090 |
GZG50 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-40070 |
GZG50 |
1 | ||
| 47324-40050 |
GZG50 |
1 | ||
| 47324-40080 |
GZG50 CNGｼﾔ |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-40030 |
GZG50 |
1 | ||
| 47325-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 47325-40050 |
GZG50 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-40030 |
GZG50 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-40010 |
GZG50 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-50090 |
GZG50 |
6 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50170 |
GZG50 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47374-40010 |
GZG50 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-40010 |
GZG50 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-24070 |
GZG50 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30170 |
GZG50 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-40030 |
GZG50 |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-40010 |
GZG50 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06846 | ||||
| 90179-06161 | ||||
| 90179-08171 | ||||
| 90468-08034 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 4805 | ||||

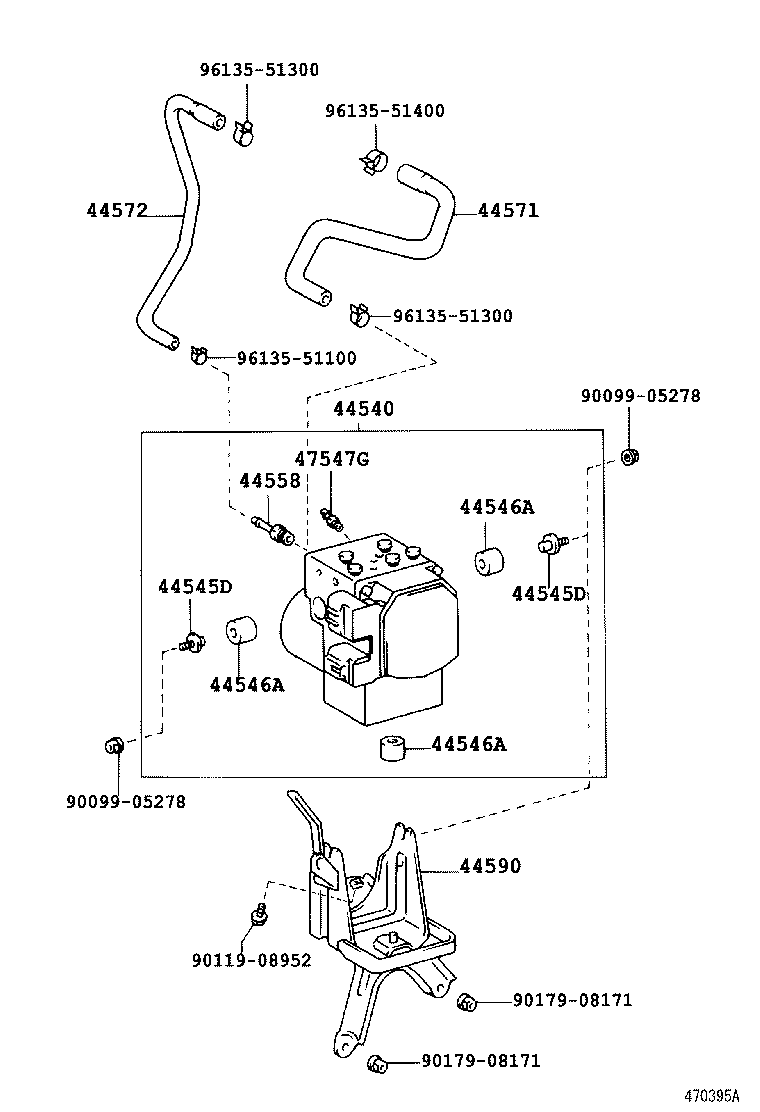

ILLUST NO. 2 OF 2(9704-0004)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-40030 |
GZG50 |
1 | ||
| 44540-24010 |
GZG50 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GZG50 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GZG50 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44558 - TUBE, BRAKE ACTUATOR, NO.8 | ||||
| 44558-22020 |
GZG50..4FC,4HC |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-40010 |
GZG50 |
1 | ||
| 44571-40030 |
GZG50 |
1 | ||
| 44572 - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-40010 |
GZG50..4FC,4HC |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-40010 |
GZG50 |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
GZG50 |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90119-08952 | ||||
| 90179-08171 | ||||
| 96135-51100 | ||||
| 96135-51300 | ||||
| 96135-51400 | ||||
ILLUST NO. 1 OF 2(0004-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12048 |
GZG50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-40101 |
GZG50 |
1 | ||
| 47312-40080 |
GZG50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-40090 |
GZG50 |
1 | ||
| 47313-40120 |
GZG50 CNGｼﾔ |
1 | ||
| 47313-40110 |
GZG50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02A04 |
GZG50 |
2 | ||
| 90947-02902 |
GZG50 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-40110 |
GZG50 |
1 | ||
| 47314-40090 |
GZG50 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GZG50 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GZG50 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02903 |
GZG50 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-40070 |
GZG50 |
1 | ||
| 47322-40090 |
GZG50 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-40070 |
GZG50 |
1 | ||
| 47324-40050 |
GZG50 |
1 | ||
| 47324-40080 |
GZG50 CNGｼﾔ |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-40030 |
GZG50 |
1 | ||
| 47325-40060 |
GZG50 CNGｼﾔ |
1 | ||
| 47325-40050 |
GZG50 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-40030 |
GZG50 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-40010 |
GZG50 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30190 |
GZG50 |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-50090 |
GZG50 |
6 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50170 |
GZG50 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47374-40010 |
GZG50 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-40010 |
GZG50 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-24070 |
GZG50 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-30170 |
GZG50 |
3 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-40030 |
GZG50 |
1 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-40010 |
GZG50 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 47388-40010 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-06846 | ||||
| 90179-06161 | ||||
| 90179-08171 | ||||
| 90468-08034 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 4805 | ||||

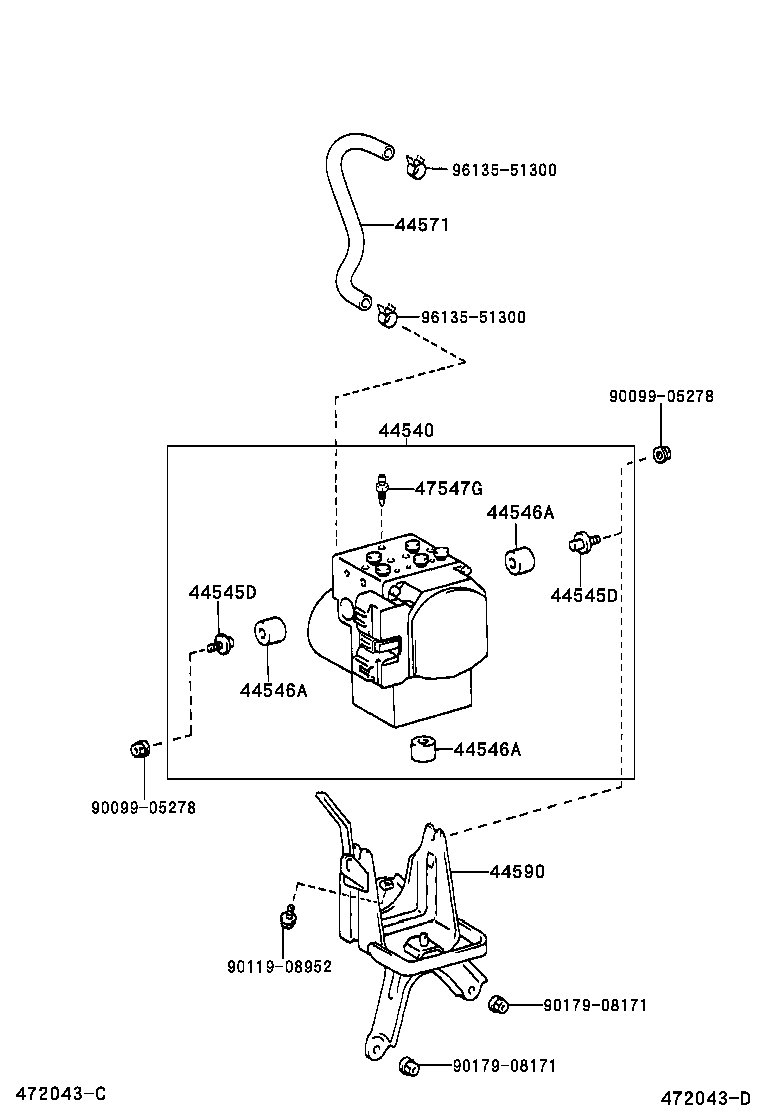

ILLUST NO. 2 OF 2(0004-0501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44050-40030 |
GZG50 |
1 | ||
| 44540-24010 |
GZG50 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GZG50 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GZG50 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GZG50 |
3 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-40010 |
GZG50 |
1 | ||
| 44571-40030 |
GZG50 |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-40010 |
GZG50 |
1 | ||
| 47547G - PLUG, BLEEDER(FOR BRAKE TRACTION ACTUATOR) | ||||
| 47547-27030 |
GZG50 |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90119-08952 | ||||
| 90179-08171 | ||||
| 96135-51300 | ||||
