GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

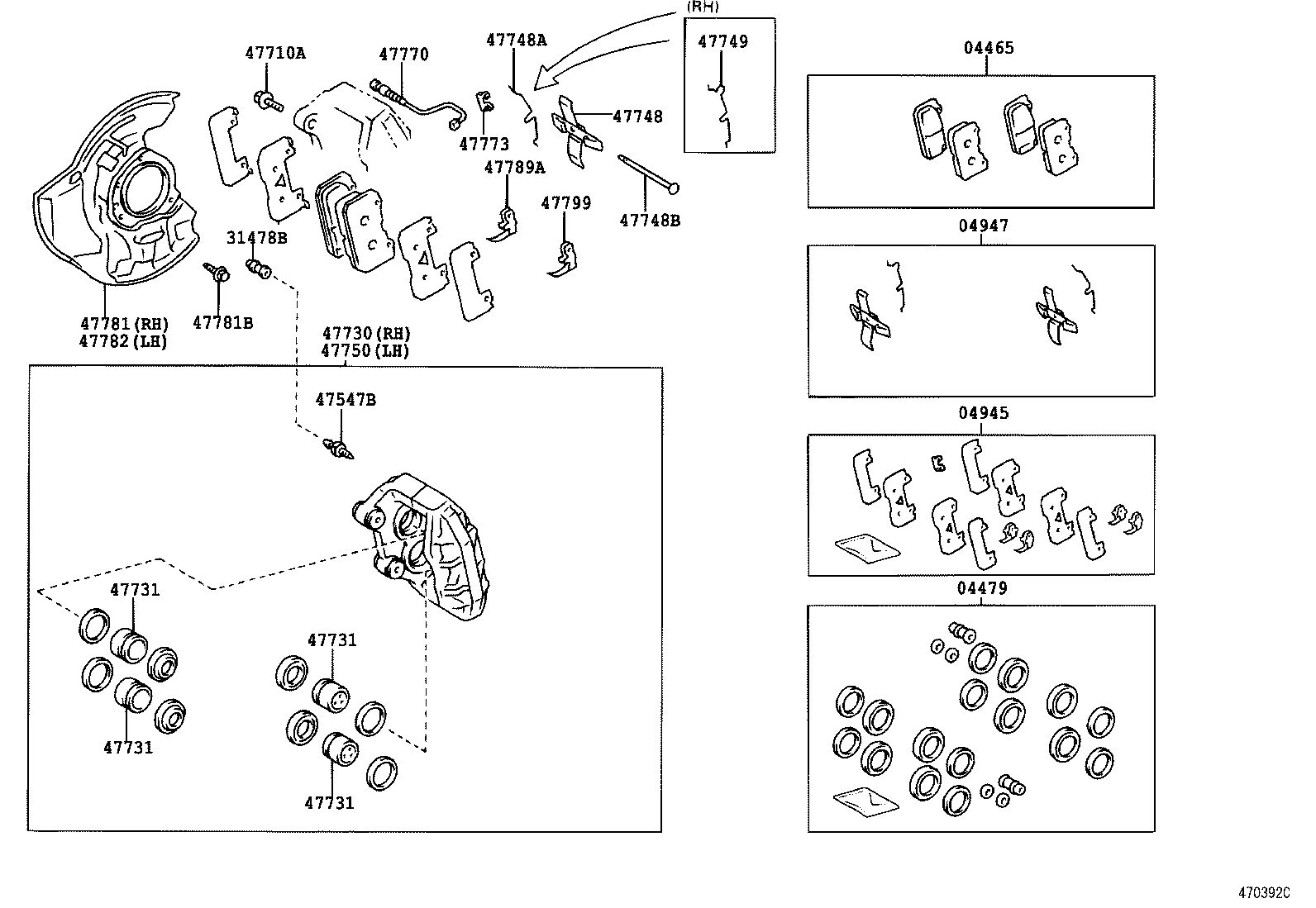

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47730 47731 47731 47731 47731 47748 47748A 47748B 47749 47750 47770 47773 47781 47781B 47782 47789A 47799
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-50070

GZG50

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-50091

GZG50

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-50012

GZG50

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-50083

GZG50

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-14010

GZG50

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

GZG50

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GZG50

*12−1.25PX32−24

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-50102

GZG50

 1
47731 - PISTON, FRONT DISC BRAKE
47731-50060

GZG50

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50060

GZG50

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50060

GZG50

 8
47731 - PISTON, FRONT DISC BRAKE
47731-50060

GZG50

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-50010

GZG50

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12022

GZG50

 1
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47735-50010

GZG50

 4
47749 - CLIP, PIN HOLD
47749-50020

GZG50

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-50102

GZG50

 1
47770 - WIRE ASSY, PAD WEAR INDICATOR, FRONT RH
47770-50031

GZG50

 1
47770-50030

GZG50

 1
47773 - RETAINER, PAD WEAR INDICATOR
47773-50030

GZG50

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-50031

GZG50

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GZG50

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-50031

GZG50

 1
47789A - SPACER, FRONT DISC BRAKE PAD, NO.1
47789-50012

GZG50

 2
47799 - SPACER, DISC BRAKE PAD, NO.2
47789-50012

GZG50

 2
