GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

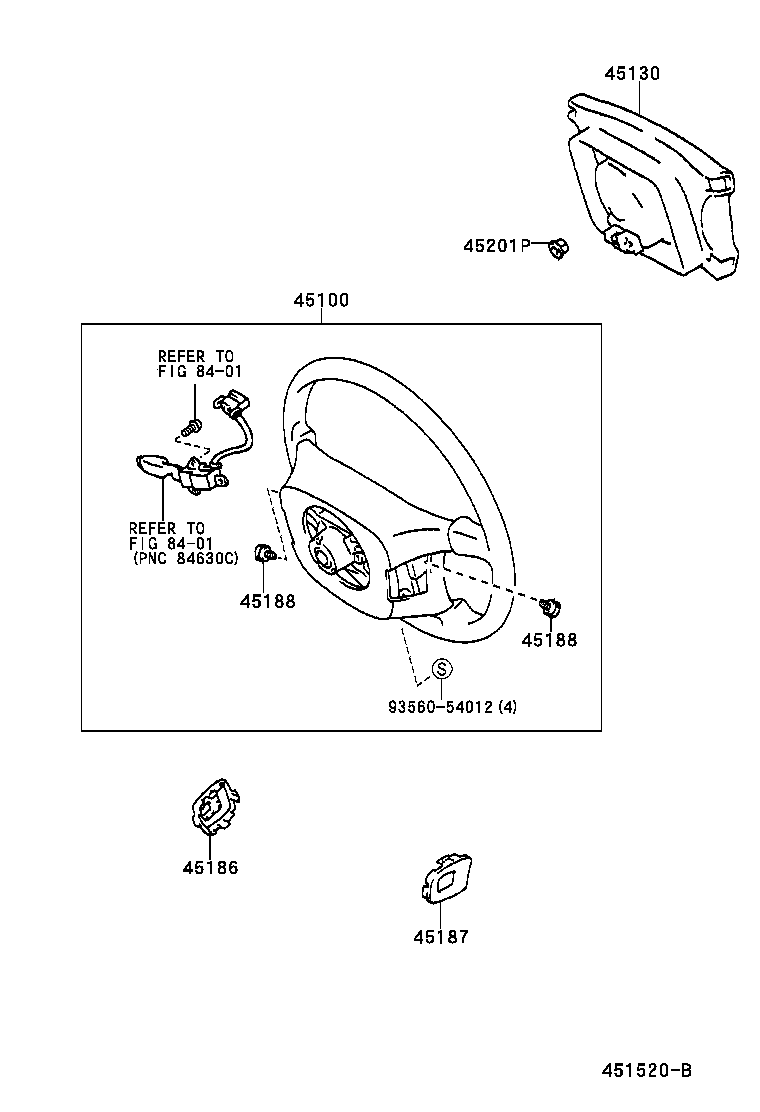

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P 8401 8401 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-40113E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40121C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45100-40121E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40113C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45100-40111E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40111C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45130 - BUTTON ASSY, HORN
45130-40060E0

GZG50

ORCHID BROWN,TRIM4#

 1
45130-40060C0

GZG50

BLACK,TRIM1#,8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E3

GZG50

ORCHID BROWN,TRIM4#

 1
45186-50030C0

GZG50

BLACK,TRIM1#,8#

 1
45186-50030E2

GZG50

ORCHID BROWN,TRIM4#

 1
45186-60020C0

GZG50

BLACK,TRIM1#,8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030C0

GZG50

BLACK,TRIM1#,8#

 1
45187-50030E2

GZG50

ORCHID BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

GZG50

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

GZG50

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

GZG50

 1
Common parts
93560-54012
Linked diagrams
8401

(9704-0004)

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-40113E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40121C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45100-40121E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40113C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45100-40111E0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ORCHID BROWN,TRIM4#

 1
45100-40111C0

GZG50

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,8#

 1
45130 - BUTTON ASSY, HORN
45130-40060E0

GZG50

ORCHID BROWN,TRIM4#

 1
45130-40060C0

GZG50

BLACK,TRIM1#,8#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E3

GZG50

ORCHID BROWN,TRIM4#

 1
45186-50030C0

GZG50

BLACK,TRIM1#,8#

 1
45186-50030E2

GZG50

ORCHID BROWN,TRIM4#

 1
45186-60020C0

GZG50

BLACK,TRIM1#,8#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030C0

GZG50

BLACK,TRIM1#,8#

 1
45187-50030E2

GZG50

ORCHID BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

GZG50

長さ=15.5

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

GZG50

長さ=15.5

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

GZG50

 1
