GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )4FC,6FC

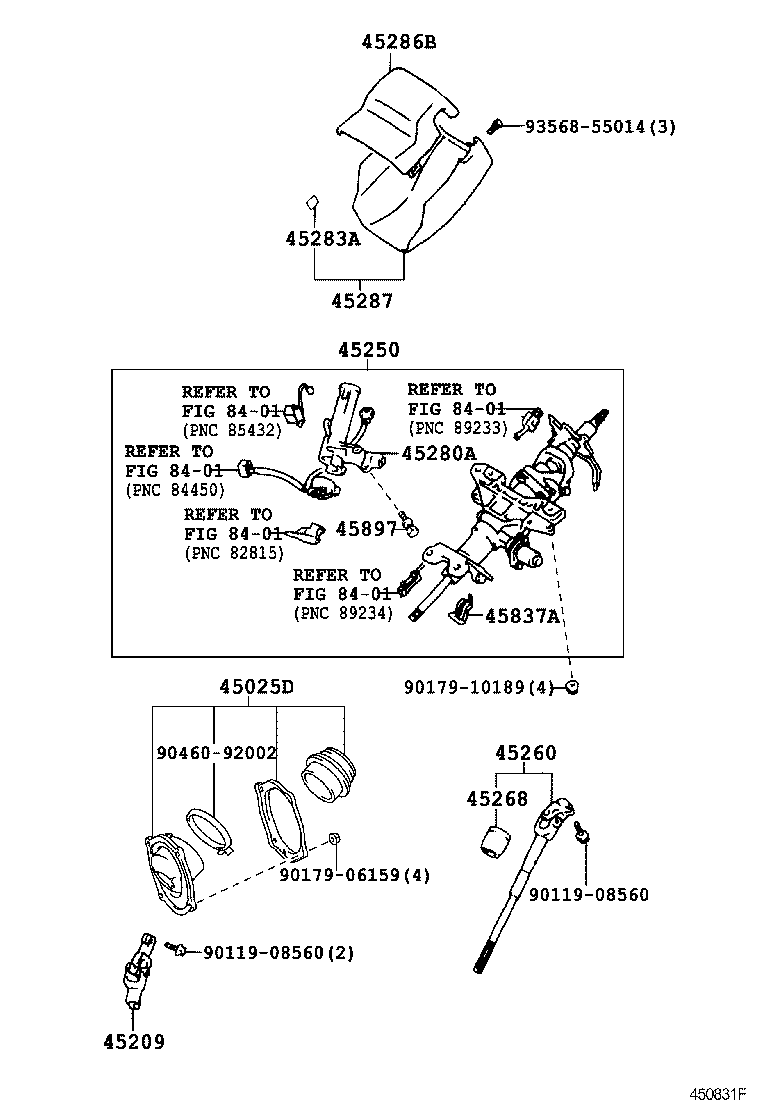

Click highlighted areas on diagram

diagram 45025D 45209 45250 45260 45268 45280A 45283A 45286B 45287 45837A 45897 8401 8401 8401 8401 8401 9011908560 9011908560 9017906159 9017910189 9046092002 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-40050

GZG50

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-50010

GZG50

 1
45250 - COLUMN ASSY, STEERING
45250-40260

GZG50..4FC

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-40010

GZG50

 1
45268 - COVER, STEERING INTER SHAFT DUST SEAL
45268-40020

GZG50

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-30590

GZG50

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-50010B0

GZG50

SHADOW GRAY,TRIM1#,4#,8#

 1
45286B - COVER, STEERING COLUMN, UPR
45286-40080E0

GZG50..4FC

ORCHID BROWN,TRIM4#

 1
45286-40080C0

GZG50..4FC

BLACK,TRIM1#,8#

 1
45287 - COVER, STEERING COLUMN, LWR
45024-40010E0

GZG50..4FC

ORCHID BROWN,TRIM4#

 1
45024-40010C0

GZG50..4FC

BLACK,TRIM1#,8#

 1
45837A - BRACKET, STEERLNG LOWER TUBE, NO.1
45837-50010

GZG50..4FC

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

GZG50

 2
Common parts
90119-08560
90179-06159
90179-10189
90460-92002
93568-55014
Linked diagrams
8401
