GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

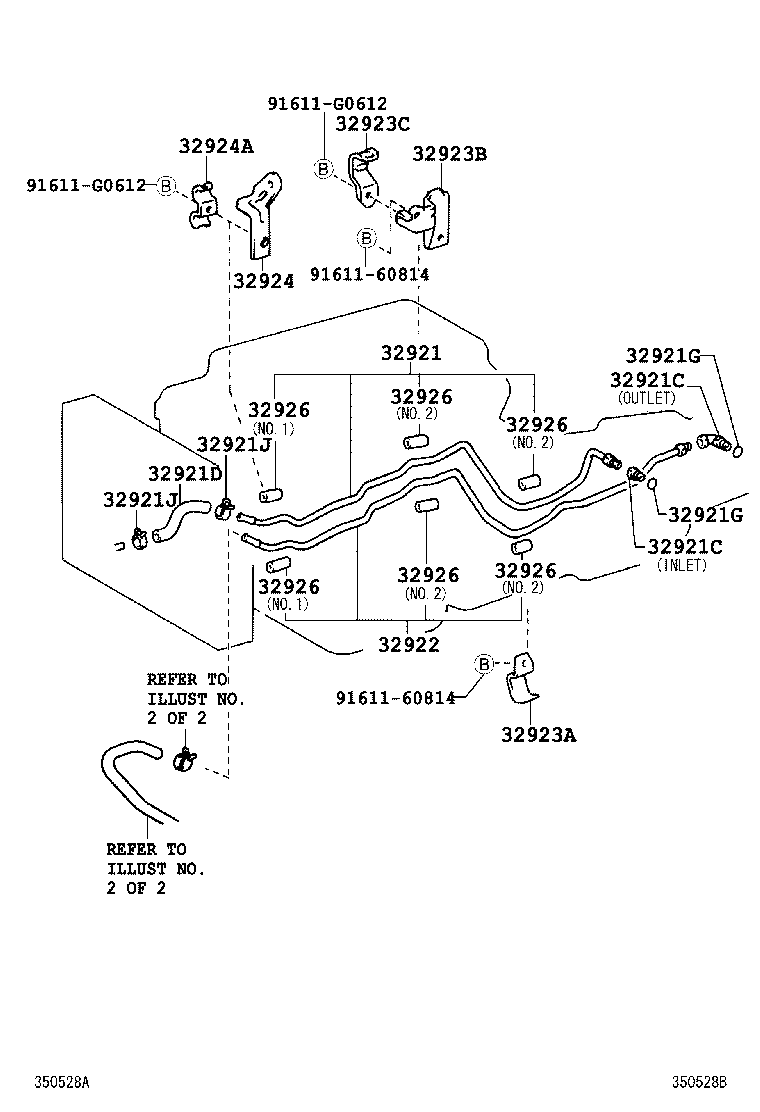

ILLUST NO. 1 OF 2(9704-0501)
Click highlighted areas on diagram
A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-40080 |
GZG50 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
GZG50 ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-16029 |
GZG50 ｲﾝﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16009 |
GZG50 ｱｳﾄﾚｯﾄ |
1 | ||
| 90404-16029 |
GZG50 ｲﾝﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-40050 |
GZG50 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GZG50 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
GZG50 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-40080 |
GZG50 |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32929-30140 |
GZG50 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-40040 |
GZG50 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32929-22050 |
GZG50 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-40030 |
GZG50 |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12047 |
GZG50 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
GZG50 長さ=35,内径=10,NO.1 |
2 | ||
| 32926-30030 |
GZG50 長さ=35,内径=10,NO.2 |
4 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
ILLUST NO. 2 OF 2(9704-0501)
Click highlighted areas on diagram
A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-40010 |
GZG50 |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-40020 |
GZG50 |
1 | ||
| 32910A - HOSE, OIL COOLER WATER OUTLET | ||||
| 90445-17101 |
GZG50 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-40010 |
GZG50 |
1 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
GZG50 |
10 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-35070 |
GZG50 |
2 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-35070 |
GZG50 |
2 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-40030 |
GZG50 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-40041 |
GZG50 |
1 | ||
| 32942-40040 |
GZG50 |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-40020 |
GZG50 |
1 | ||
| Common parts | ||||
| 90159-60128 | ||||
| 90179-06178 | ||||
| 90179-06274 | ||||
| 90468-10034 | ||||
