GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704-0501)

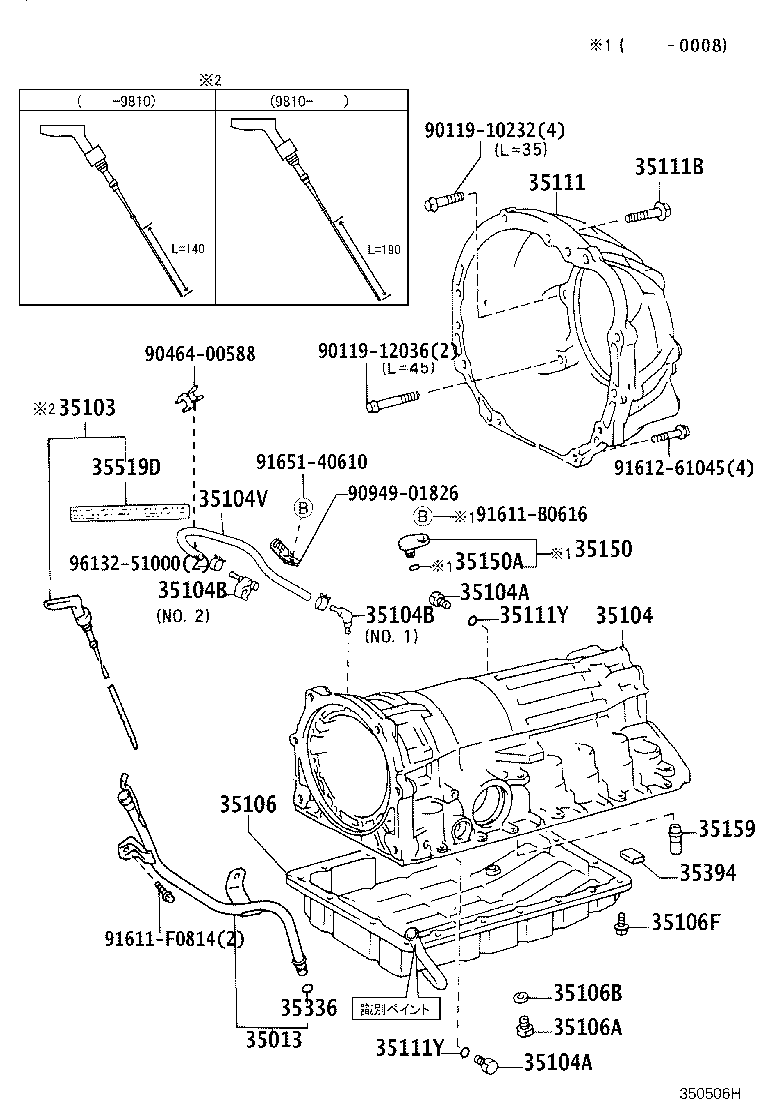

Click highlighted areas on diagram
A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-40060 |
GZG50 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-40060 |
GZG50 |
1 | ||
| 35103-40050 |
GZG50 |
1 | ||
| 35103-40051 |
GZG50 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
GZG50 |
1 | ||
| 35104-22070 |
GZG50 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GZG50 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GZG50 |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
GZG50 NO.1 |
1 | ||
| 90930-03149 |
GZG50 NO.2 |
1 | ||
| 90930-03168 |
GZG50 NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
GZG50 NO.1 |
1 | ||
| 90930-03149 |
GZG50 NO.2 |
1 | ||
| 90930-03168 |
GZG50 NO.2 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11096 |
GZG50 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-40040 |
GZG50 識別ﾍﾟｲﾝﾄ=白 |
1 | ||
| 35106-40050 |
GZG50 識別ﾍﾟｲﾝﾄ=青 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10017 |
GZG50 |
1 | ||
| 90341-10011 |
GZG50 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GZG50 |
1 | ||
| 35178-30010 |
GZG50 |
1 | ||
| 35178-50010 |
GZG50 |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
GZG50 |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-40050 |
GZG50 |
1 | ||
| 35111B - BOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING) | ||||
| 91619-61250 |
GZG50 *12−1.25PX50−30 |
6 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GZG50 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GZG50 |
2 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
GZG50 |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
GZG50 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
GZG50 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09011 |
GZG50 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GZG50 |
3 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-30010 |
GZG50 |
1 | ||
| 35519-24020 |
GZG50 |
1 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90464-00588 | ||||
| 90949-01826 | ||||
| 91611-B0616 | ||||
| 91611-F0814 | ||||
| 91612-61045 | ||||
| 91651-40610 | ||||
| 96132-51000 | ||||
