GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0501)

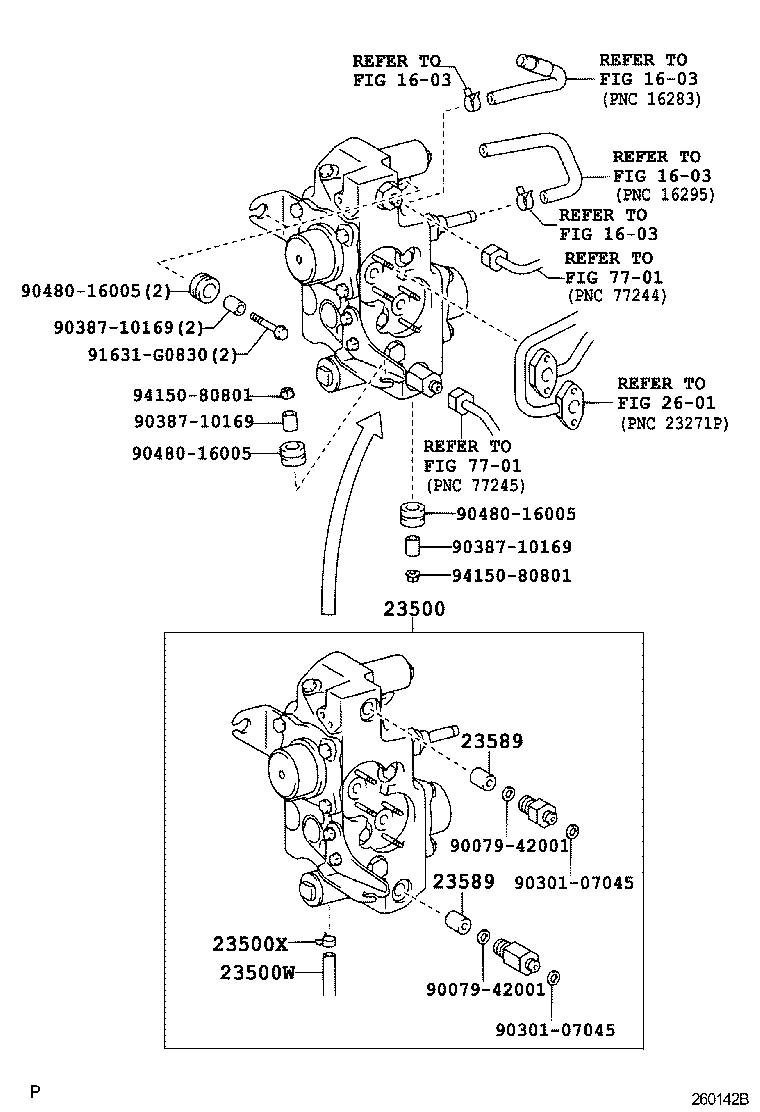

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 23500 23500W 23500X 23589 23589 2601 7701 7701 9007942001 9007942001 9030107045 9030107045 9038710169 9038710169 9038710169 9048016005 9048016005 9048016005 91631G0830 9415080801 9415080801
Part # Description Qty Price
23500 - REGULATOR ASSY, LPG(CNG)
23500-32010

1GZFE..GZG50

 1
23500W - HOSE, FUEL(FOR LPG REGULATOR)
95333-08020

1GZFE..GZG50

 1
23500X - CLIP(FOR LPG REGULATOR FUEL HOSE)
96133-41300

1GZFE..GZG50

 1
23589 - FILTER, LPG REGULATOR
23589-74020

1GZFE..GZG50

 2
23589 - FILTER, LPG REGULATOR
23589-74020

1GZFE..GZG50

 2
Common parts
90079-42001
90301-07045
90387-10169
90480-16005
91631-G0830
94150-80801
Linked diagrams
1603
2601
7701
