GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

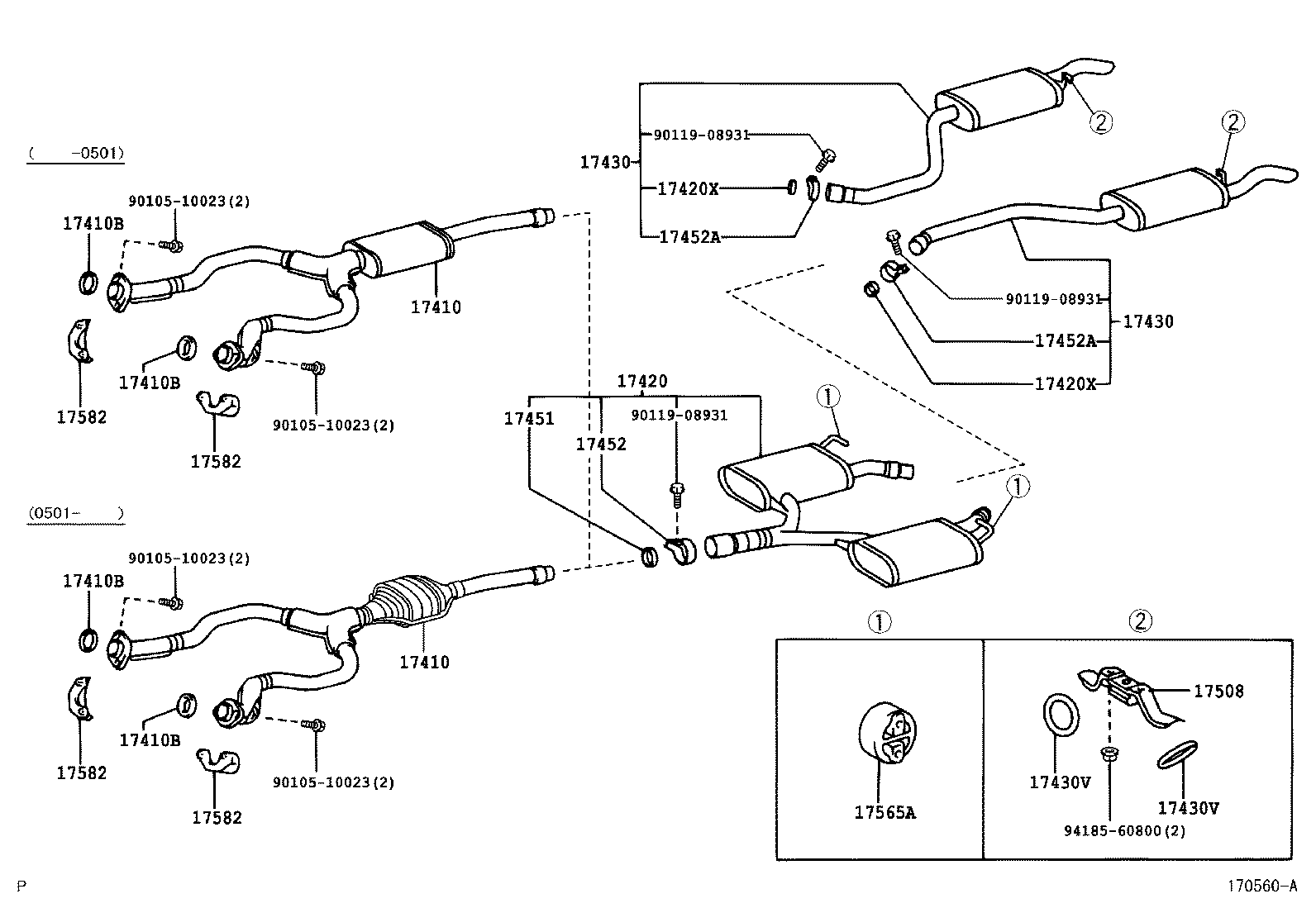

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-32060 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 17410-40080 |
1GZFE..GZG50 |
1 | ||
| 17410-32050 |
1GZFE..GZG50 |
1 | ||
| 17410-40081 |
1GZFE..GZG50 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-32060 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 17410-40080 |
1GZFE..GZG50 |
1 | ||
| 17410-32050 |
1GZFE..GZG50 |
1 | ||
| 17410-40081 |
1GZFE..GZG50 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06072 |
1GZFE..GZG50 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06072 |
1GZFE..GZG50 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06072 |
1GZFE..GZG50 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06072 |
1GZFE..GZG50 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-50100 |
1GZFE..GZG50 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-50030 |
1GZFE..GZG50 |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-50030 |
1GZFE..GZG50 |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-32040 |
1GZFE..GZG50 右側 |
1 | ||
| 17440-32020 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ,左側 |
1 | ||
| 17440-32010 |
1GZFE..GZG50 左側 |
1 | ||
| 17430-32050 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ,右側 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-32040 |
1GZFE..GZG50 右側 |
1 | ||
| 17440-32020 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ,左側 |
1 | ||
| 17440-32010 |
1GZFE..GZG50 左側 |
1 | ||
| 17430-32050 |
1GZFE..GZG50 CNG ﾊﾟﾂｹ-ｼﾞ,右側 |
1 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GZFE..GZG50 |
4 | ||
| 17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90301-36001 |
1GZFE..GZG50 |
4 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-50020 |
1GZFE..GZG50 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-50020 |
1GZFE..GZG50 |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-50030 |
1GZFE..GZG50 |
2 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-50030 |
1GZFE..GZG50 |
2 | ||
| 17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3 | ||||
| 17508-50050 |
1GZFE..GZG50 |
2 | ||
| 17508-50010 |
1GZFE..GZG50 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-74280 |
1GZFE..GZG50 |
2 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-50030 |
1GZFE..GZG50 |
2 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-50030 |
1GZFE..GZG50 |
2 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-50030 |
1GZFE..GZG50 |
2 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-50030 |
1GZFE..GZG50 |
2 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-08931 | ||||
| 94185-60800 | ||||
