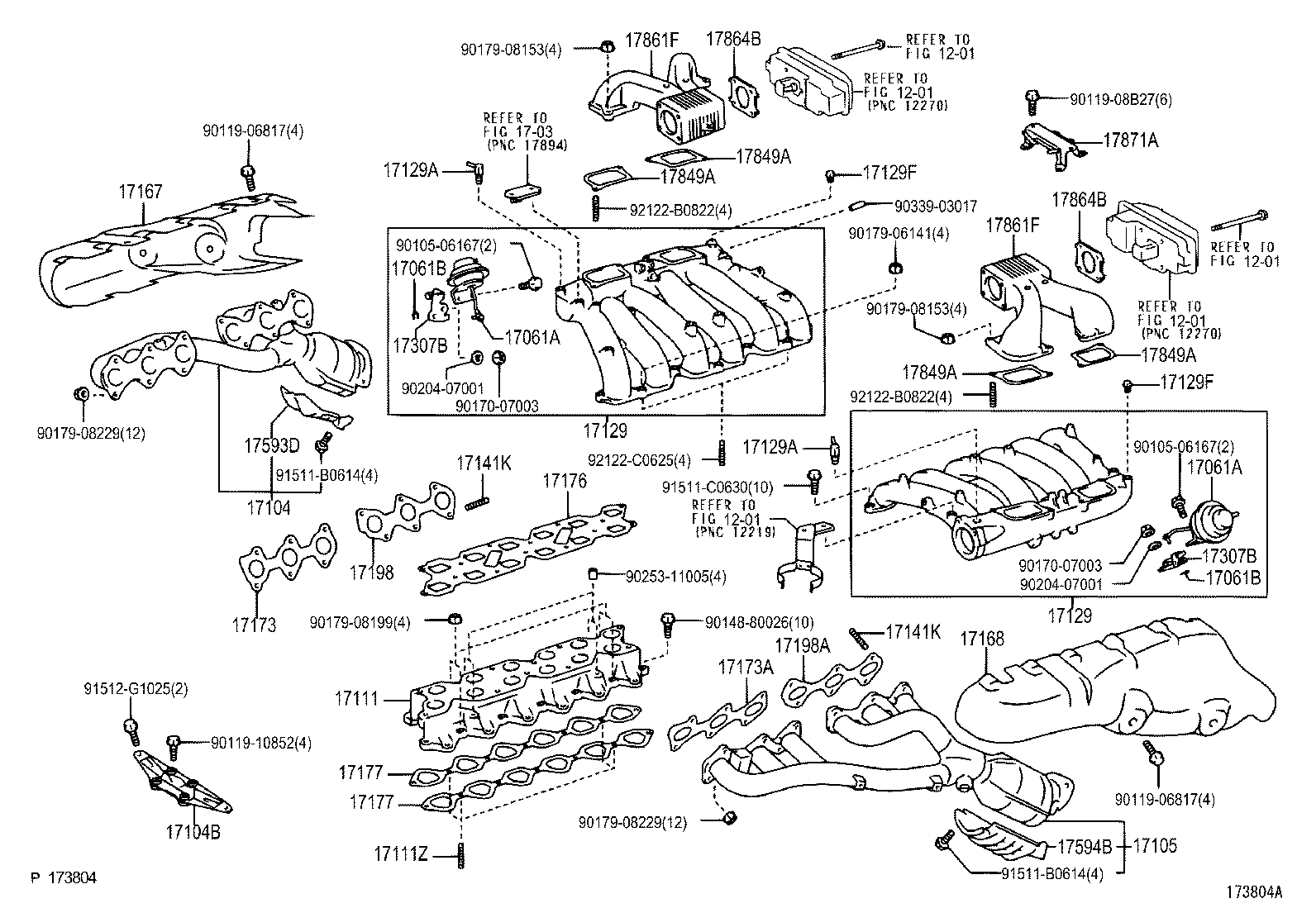

GZG50-AEPGK (1997)
Toyota Century
(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-32010 |
1GZFE..GZG50 |
1 | ||
| 17104-32060 |
1GZFE..GZG50 |
1 | ||
| 17104-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17104B - BRACKET SUB-ASSY, EXHAUST MANIFOLD | ||||
| 17506-32010 |
1GZFE..GZG50 |
1 | ||
| 17506-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17105-32010 |
1GZFE..GZG50 |
1 | ||
| 17105-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105-32060 |
1GZFE..GZG50 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-32060 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17111-32050 |
1GZFE..GZG50 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08348 |
1GZFE..GZG50 |
4 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-32010 |
1GZFE..GZG50 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-32010 |
1GZFE..GZG50 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-32010 |
1GZFE..GZG50 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17198A - GASKET, EXHAUST MANIFOLD, NO.3 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17593D - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-50040 |
1GZFE..GZG50 |
1 | ||
| 17593-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594B - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594-50040 |
1GZFE..GZG50 |
1 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17864A - COVER, INTAKE AIR CONNECTOR | ||||
| 17864-32010 |
1GZFE..GZG50 |
2 | ||
| 17864A - COVER, INTAKE AIR CONNECTOR | ||||
| 17864-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 17871-32010 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 90105-06167 | ||||
| 90119-06817 | ||||
| 90119-08B27 | ||||
| 90119-10852 | ||||
| 90148-80026 | ||||
| 90170-07003 | ||||
| 90179-06141 | ||||
| 90179-08153 | ||||
| 90179-08199 | ||||
| 90179-08229 | ||||
| 90204-07001 | ||||
| 90339-03017 | ||||
| 91511-B0614 | ||||
| 91511-C0630 | ||||
| 91511-J0822 | ||||
| 91512-G1025 | ||||
| 92122-B0822 | ||||
| 92122-C0625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||

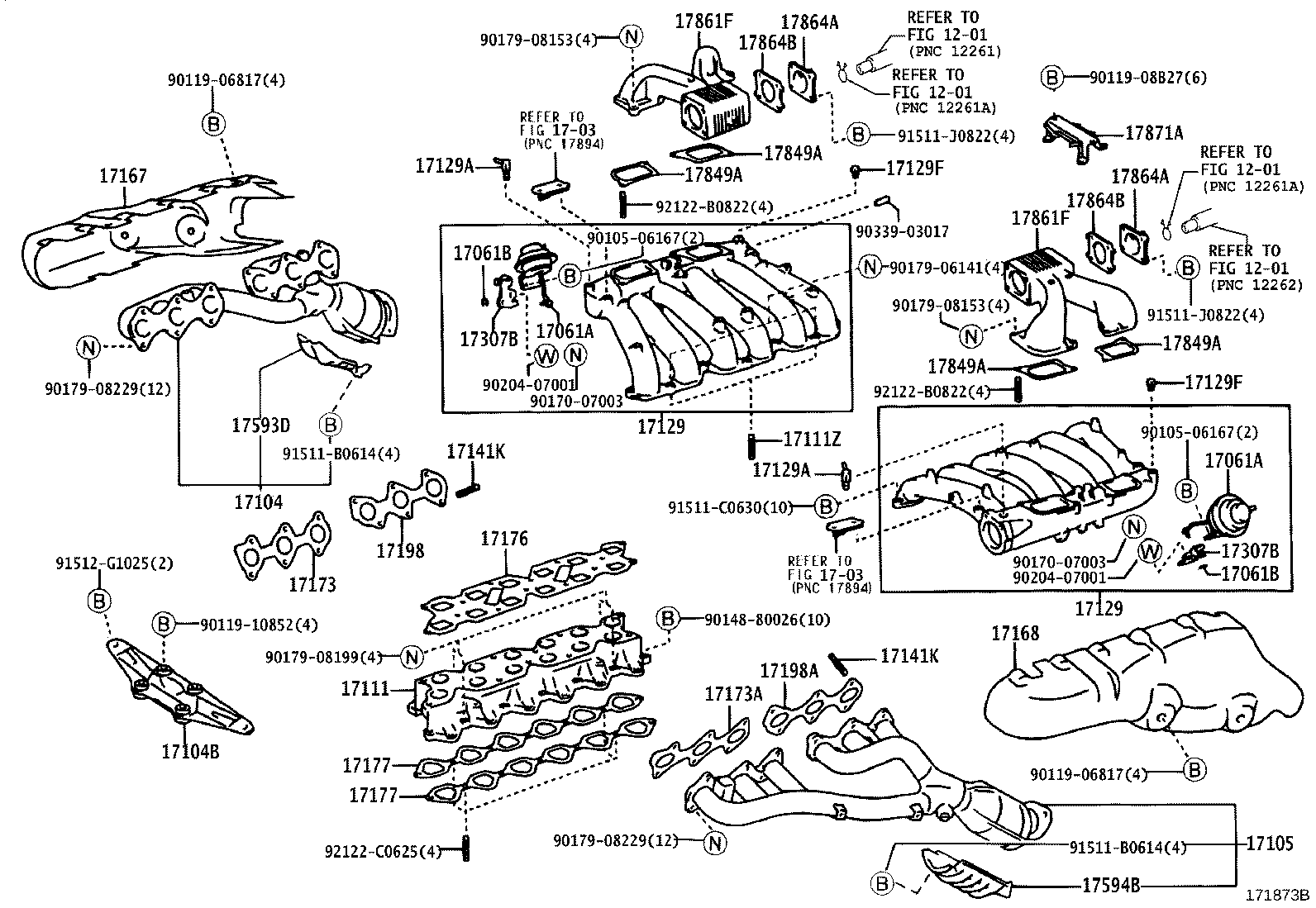

(0304-0501)
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-32010 |
1GZFE..GZG50 |
1 | ||
| 17104-32060 |
1GZFE..GZG50 |
1 | ||
| 17104-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17104B - BRACKET SUB-ASSY, EXHAUST MANIFOLD | ||||
| 17506-32010 |
1GZFE..GZG50 |
1 | ||
| 17506-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17105-32010 |
1GZFE..GZG50 |
1 | ||
| 17105-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105-32060 |
1GZFE..GZG50 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-32060 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17111-32050 |
1GZFE..GZG50 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08348 |
1GZFE..GZG50 |
4 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-32010 |
1GZFE..GZG50 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-32010 |
1GZFE..GZG50 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-32010 |
1GZFE..GZG50 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17198A - GASKET, EXHAUST MANIFOLD, NO.3 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17593D - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-50040 |
1GZFE..GZG50 |
1 | ||
| 17593-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594B - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594-50040 |
1GZFE..GZG50 |
1 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 17871-32010 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 90105-06167 | ||||
| 90119-06817 | ||||
| 90119-08B27 | ||||
| 90119-10852 | ||||
| 90148-80026 | ||||
| 90170-07003 | ||||
| 90179-08153 | ||||
| 90179-08199 | ||||
| 90179-08229 | ||||
| 90204-07001 | ||||
| 90253-11005 | ||||
| 90339-03017 | ||||
| 91511-B0614 | ||||
| 91511-C0630 | ||||
| 91512-G1025 | ||||
| 92122-B0822 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||

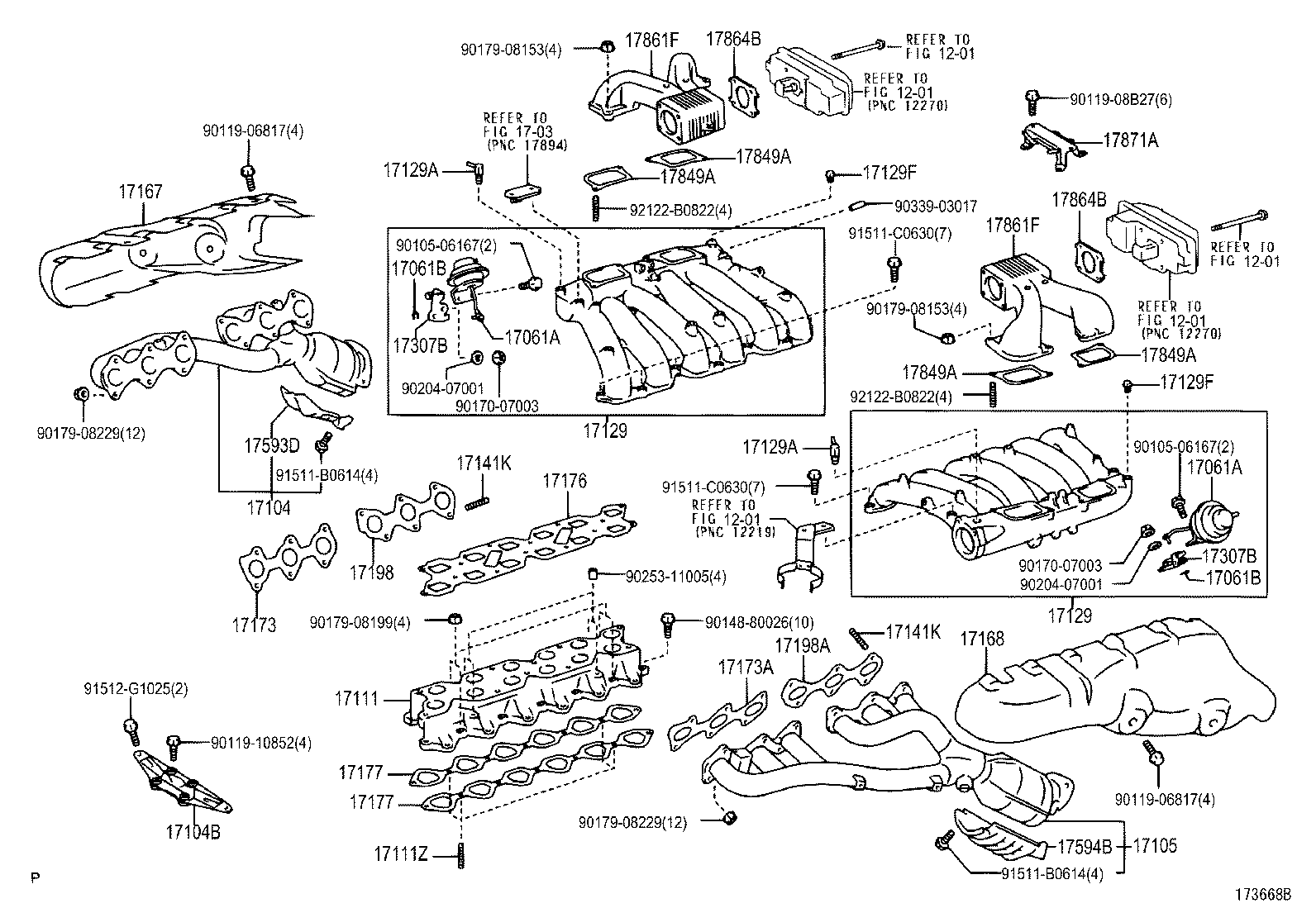

(0301-0304)
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061A - DIAPHRAGM SUB-ASSY | ||||
| 17061-46010 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17061B - RING, E(FOR SURGE TANK DIAPHRGM) | ||||
| 90523-02002 |
1GZFE..GZG50 |
2 | ||
| 17104 - MANIFOLD SUB-ASSY, EXHAUST, RH | ||||
| 17104-32010 |
1GZFE..GZG50 |
1 | ||
| 17104-32060 |
1GZFE..GZG50 |
1 | ||
| 17104-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17104B - BRACKET SUB-ASSY, EXHAUST MANIFOLD | ||||
| 17506-32010 |
1GZFE..GZG50 |
1 | ||
| 17506-32030 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105 - MANIFOLD SUB-ASSY, EXHAUST, LH | ||||
| 17105-32010 |
1GZFE..GZG50 |
1 | ||
| 17105-32070 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17105-32060 |
1GZFE..GZG50 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-32060 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17111-32050 |
1GZFE..GZG50 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08348 |
1GZFE..GZG50 |
4 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-32020 |
1GZFE..GZG50 CNGｼﾔ,右側 |
1 | ||
| 17109-32010 |
1GZFE..GZG50 |
2 | ||
| 17109-32030 |
1GZFE..GZG50 CNGｼﾔ,左側 |
1 | ||
| 17109-32011 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51040 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17129F - PLUG, INTAKE MANIFOLD SUCTION HOLE | ||||
| 90345-51025 |
1GZFE..GZG50 |
2 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08256 |
1GZFE..GZG50 |
24 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-32010 |
1GZFE..GZG50 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-32010 |
1GZFE..GZG50 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH | ||||
| 17173-32010 |
1GZFE..GZG50 |
1 | ||
| 17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD | ||||
| 17176-32010 |
1GZFE..GZG50 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-32010 |
1GZFE..GZG50 |
2 | ||
| 17177-32020 |
1GZFE..GZG50 |
2 | ||
| 17198 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17198A - GASKET, EXHAUST MANIFOLD, NO.3 | ||||
| 17198-32010 |
1GZFE..GZG50 |
1 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17307B - LEVER SUB-ASSY, INTAKE AIR CONTROL | ||||
| 17307-46010 |
1GZFE..GZG50 |
2 | ||
| 17593D - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-50040 |
1GZFE..GZG50 |
1 | ||
| 17593-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594B - PROTECTOR, EXHAUST PIPE, LOWER NO.2 | ||||
| 17594-32010 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 17594-50040 |
1GZFE..GZG50 |
1 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17849A - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-32010 |
1GZFE..GZG50 |
4 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-32020 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 17861-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17864B - GASKET, INTAKE AIR CONNECTOR COVER | ||||
| 22271-32010 |
1GZFE..GZG50 |
2 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 17871-32010 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 90105-06167 | ||||
| 90119-06817 | ||||
| 90119-08B27 | ||||
| 90119-10852 | ||||
| 90148-80026 | ||||
| 90170-07003 | ||||
| 90179-06141 | ||||
| 90179-08153 | ||||
| 90179-08199 | ||||
| 90179-08229 | ||||
| 90204-07001 | ||||
| 90253-11005 | ||||
| 90339-03017 | ||||
| 91511-B0614 | ||||
| 91511-C0630 | ||||
| 91512-G1025 | ||||
| 92122-B0822 | ||||
| 92122-C0625 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1703 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
