GZG50-AEPGK (1997)
Toyota Century
Production
Apr 1997
-
Jan 2005
Engine
1GZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9704- )

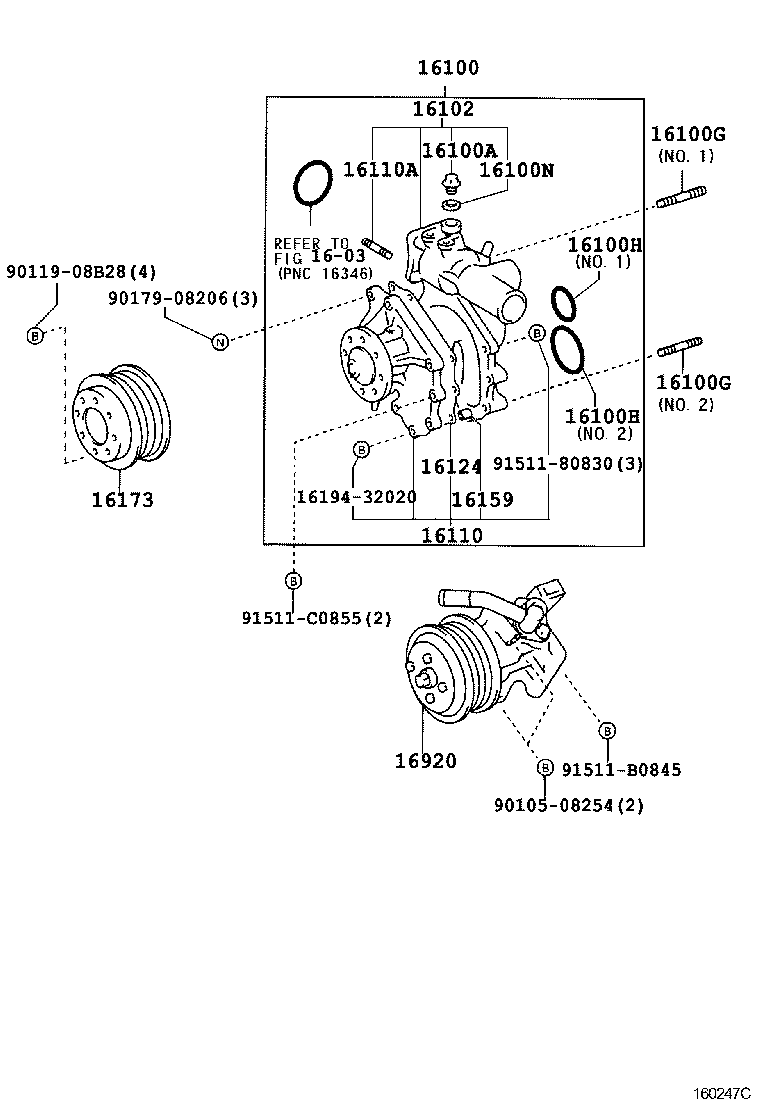

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39386 |
1GZFE..GZG50 |
1 | ||
| 16100-39385 |
1GZFE..GZG50 |
1 | ||
| 16100A - PLUG, WATER PUMP | ||||
| 90341-20011 |
1GZFE..GZG50 |
1 | ||
| 16100G - BOLT, STUD(FOR WATER PUMP SET) | ||||
| 90116-08390 |
1GZFE..GZG50 NO.2 |
2 | ||
| 92122-B0845 |
1GZFE..GZG50 NO.1 |
1 | ||
| 16100G - BOLT, STUD(FOR WATER PUMP SET) | ||||
| 90116-08390 |
1GZFE..GZG50 NO.2 |
2 | ||
| 92122-B0845 |
1GZFE..GZG50 NO.1 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90301-46006 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90301-24019 |
1GZFE..GZG50 NO.1 |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 90301-46006 |
1GZFE..GZG50 NO.2 |
1 | ||
| 90301-24019 |
1GZFE..GZG50 NO.1 |
1 | ||
| 16100N - GASKET(FOR WATER PUMP PLUG) | ||||
| 90430-20004 |
1GZFE..GZG50 |
1 | ||
| 16102 - COVER SUB-ASSY, WATER PUMP | ||||
| 16102-32020 |
1GZFE..GZG50 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-39045 |
1GZFE..GZG50 |
1 | ||
| 16110-39046 |
1GZFE..GZG50 |
1 | ||
| 16110A - BOLT, STUD(FOR WATER OUTLET SETTING) | ||||
| 92122-B0825 |
1GZFE..GZG50 |
3 | ||
| 16193-32020 |
1GZFE..GZG50 |
3 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-32020 |
1GZFE..GZG50 |
1 | ||
| 16124-32021 |
1GZFE..GZG50 |
1 | ||
| 16159 - PIN(FOR WATER PUMP) | ||||
| 16159-71010 |
1GZFE..GZG50 |
2 | ||
| 16173 - PULLEY, WATER PUMP | ||||
| 16173-32010 |
1GZFE..GZG50 |
1 | ||
| 16920 - PUMP ASSY, HYDRAULIC MOTOR VANE | ||||
| 16920-32010 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 16194-32020 | ||||
| 90105-08254 | ||||
| 90119-08B28 | ||||
| 90179-08206 | ||||
| 91511-80830 | ||||
| 91511-B0845 | ||||
| 91511-C0855 | ||||
| Linked diagrams | ||||
| 1603 | ||||
