GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

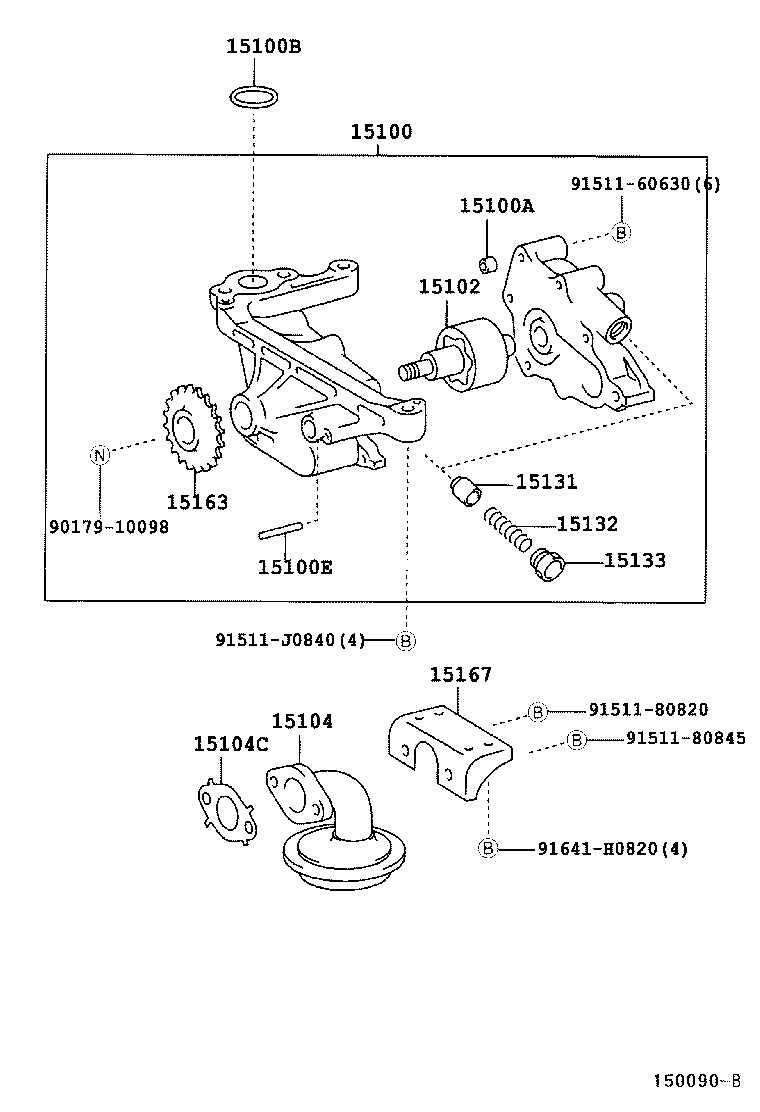

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100E 15102 15104 15104C 15131 15132 15133 15163 15167 9017910098 9151160630 9151180820 9151180845 91511J0840 91641H0820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-32010

1GZFE..GZG50

 1
15100A - PIN, RING(FOR OIL PUMP SET)
16159-70040

1GZFE..GZG50

 2
15100B - RING, O(FOR OIL PUMP)
90301-27009

1GZFE..GZG50

 1
15100E - PIN, STRAIGHT (FOR OIL PUMP SET)
90029-14201

1GZFE..GZG50

 1
15102 - ROTOR SET, OIL PUMP
15102-32010

1GZFE..GZG50

 1
15104 - STRAINER SUB-ASSY, OIL
15104-32010

1GZFE..GZG50

 1
15104C - GASKET(FOR OIL STRAINER)
15147-32010

1GZFE..GZG50

 1
15131 - VALVE, OIL PUMP RELIEF
15131-32010

1GZFE..GZG50

 2
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-20020

1GZFE..GZG50

 2
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1GZFE..GZG50

 2
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-32010

1GZFE..GZG50

 1
15167 - BRACKET, OIL PUMP
15167-32010

1GZFE..GZG50

 1
Common parts
90179-10098
91511-60630
91511-80820
91511-80845
91511-J0840
91641-H0820
