GZG50-AEPGK (1997)
Toyota Century
(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-32020 |
1GZFE..GZG50 |
2 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-32020 |
1GZFE..GZG50 |
2 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1GZFE..GZG50 |
2 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1GZFE..GZG50 |
2 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-32030 |
1GZFE..GZG50 |
1 | ||
| 12261-32040 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-32020 |
1GZFE..GZG50 |
1 | ||
| 12262-32040 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-14001 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-14001 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-32020 |
1GZFE..GZG50 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-32010 |
1GZFE..GZG50 |
1 | ||
| 12264-32020 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 12264-32030 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||

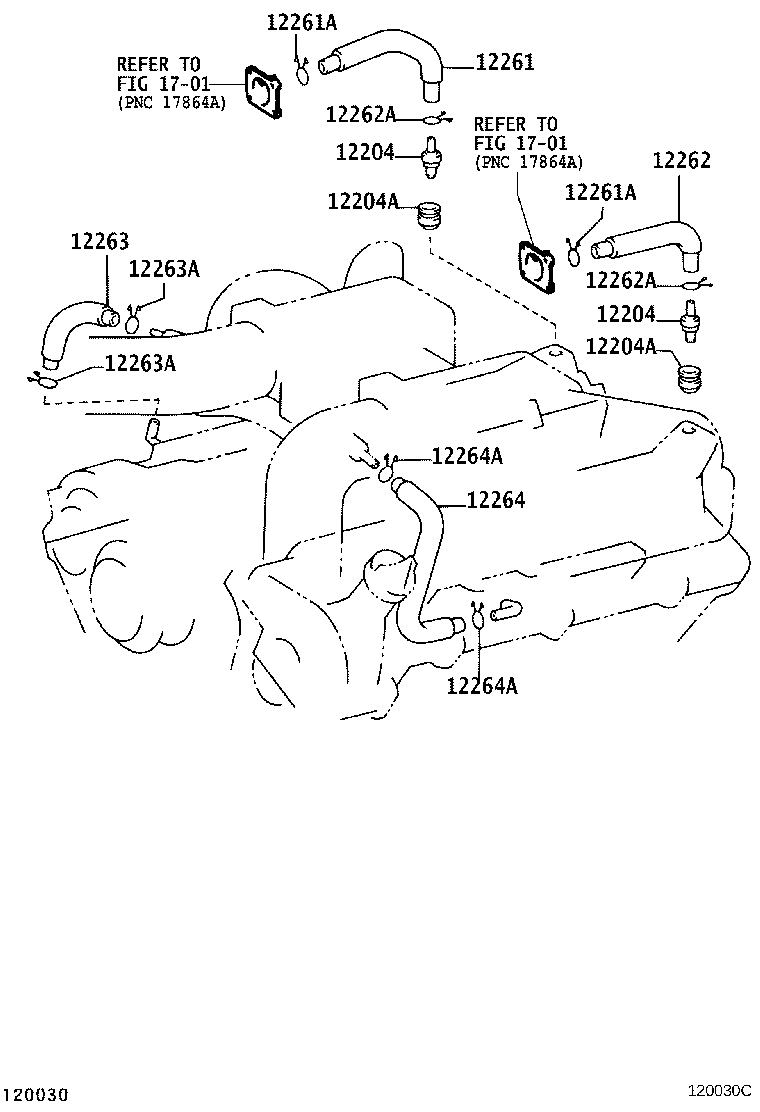

| Linked diagrams | ||||
| 1701 | ||||
(0301-0501)
CNGｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1GZFE..GZG50 |
2 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18001 |
1GZFE..GZG50 |
2 | ||
| 12212 - CASE, VENTILATION, LH | ||||
| 12212-32030 |
1GZFE..GZG50 |
1 | ||
| 12219 - BRACKET, VENTILATION CASE | ||||
| 12219-32020 |
1GZFE..GZG50 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-32030 |
1GZFE..GZG50 |
1 | ||
| 12261-32040 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15021 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-32020 |
1GZFE..GZG50 |
1 | ||
| 12262-32040 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-14001 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-14001 |
1GZFE..GZG50 |
2 | ||
| 90467-16035 |
1GZFE..GZG50 CNGｼﾔ |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-32020 |
1GZFE..GZG50 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-32010 |
1GZFE..GZG50 |
1 | ||
| 12264-32020 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 12264-32030 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 12264 - HOSE, VENTILATION, NO.4 | ||||
| 12264-32010 |
1GZFE..GZG50 |
1 | ||
| 12264-32020 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
1 | ||
| 12264-32030 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||
| 12264A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-17012 |
1GZFE..GZG50 CNGｼﾔ,NO.2 |
1 | ||
| 90467-17012 |
1GZFE..GZG50 |
2 | ||
| 90467-22010 |
1GZFE..GZG50 CNGｼﾔ,NO.1 |
3 | ||
| 12270 - SEPARATOR ASSY, OIL | ||||
| 12270-32020 |
1GZFE..GZG50 左側 |
1 | ||
| 12270-32010 |
1GZFE..GZG50 右側 |
1 | ||
| 12270 - SEPARATOR ASSY, OIL | ||||
| 12270-32020 |
1GZFE..GZG50 左側 |
1 | ||
| 12270-32010 |
1GZFE..GZG50 右側 |
1 | ||
| Common parts | ||||
| 90105-08422 | ||||
| 90119-06660 | ||||
| 90406-12017 | ||||
| Linked diagrams | ||||
| 1701 | ||||
