GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

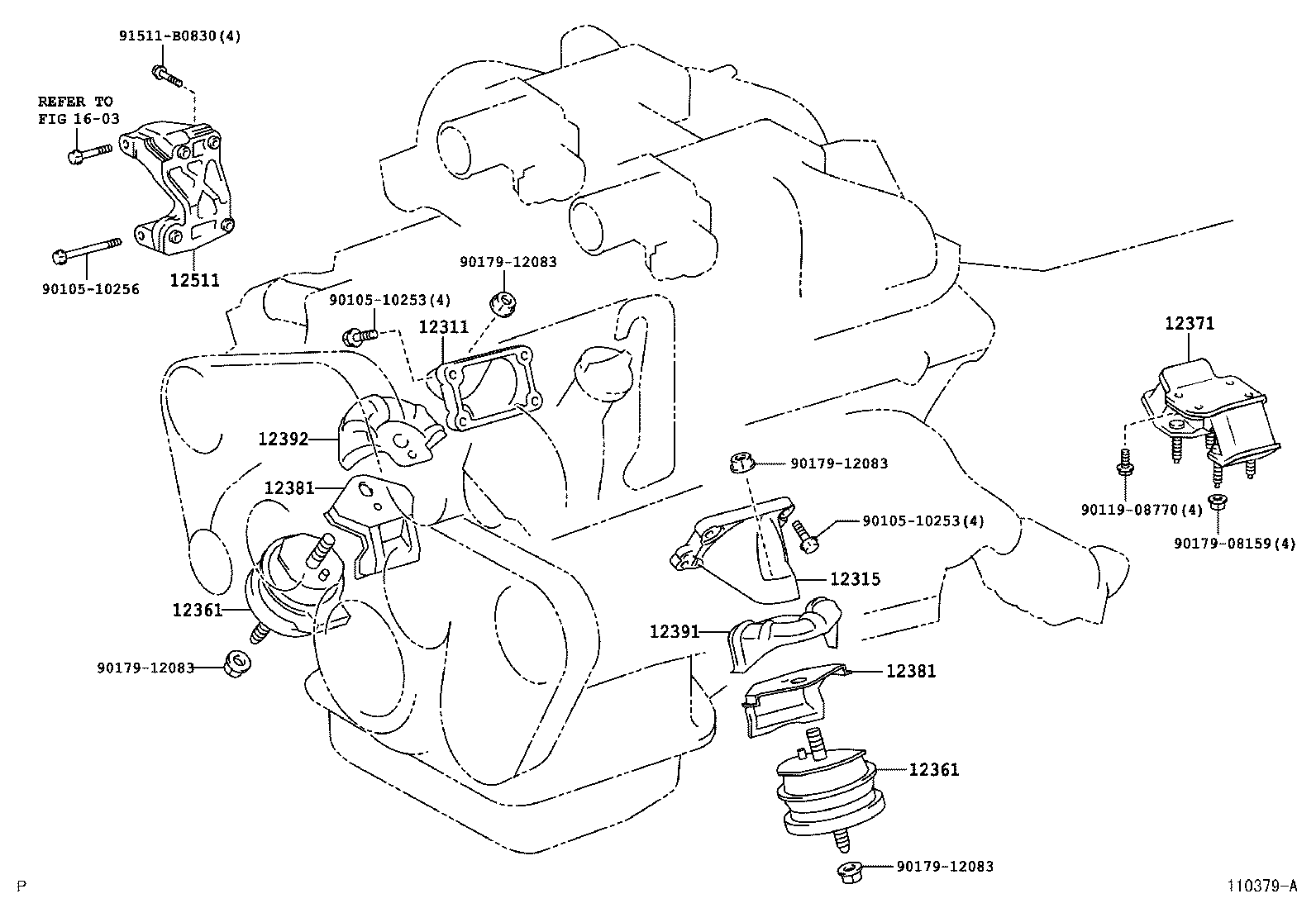

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 12392 12511 1603 9010510253 9010510253 9010510256 9011908770 9017908159 9017912083 9017912083 9017912083 9017912083 91511B0830
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-50040

1GZFE..GZG50

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-50030

1GZFE..GZG50

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-32020

1GZFE..GZG50

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-32020

1GZFE..GZG50

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-32030

1GZFE..GZG50

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-32010

1GZFE..GZG50

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-32010

1GZFE..GZG50

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-50020

1GZFE..GZG50

 1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-50020

1GZFE..GZG50

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-32010

1GZFE..GZG50

 1
Common parts
90105-10253
90105-10256
90119-08770
90179-08159
90179-12083
91511-B0830
Linked diagrams
1603
