GZG50-AEPGK (1997)
Toyota Century
(9704-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39495 |
1GZFE..GZG50 |
1 | ||
| 11101-39575 |
1GZFE..GZG50 |
1 | ||
| 11101-39585 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 11101-39505 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02117 |
1GZFE..GZG50 |
28 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11031 |
1GZFE..GZG50 |
28 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05028 |
1GZFE..GZG50 |
1 | ||
| 90919-05058 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-17013 |
1GZFE..GZG50 |
2 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-17013 |
1GZFE..GZG50 |
2 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24010 |
1GZFE..GZG50 |
3 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-32010 |
1GZFE..GZG50 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-32010 |
1GZFE..GZG50 |
2 | ||
| 11101L - UNION, NO.2(FOR CYLINDER HEAD) | ||||
| 90406-32001 |
1GZFE..GZG50 |
1 | ||
| 11101T - PLUG, HEATER WATER | ||||
| 90339-07001 |
1GZFE..GZG50 |
1 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 91511-80865 |
1GZFE..GZG50 |
4 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39085 |
1GZFE..GZG50 |
1 | ||
| 11102-39015 |
1GZFE..GZG50 |
1 | ||
| 11102-39025 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 11102-39095 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 11102A - SENSOR, CAMSHAFT POSITION | ||||
| 90919-05026 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 90919-05029 |
1GZFE..GZG50 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-06003 |
1GZFE..GZG50 長さ=14,外径=6 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-32030 |
1GZFE..GZG50 |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-11021 |
1GZFE..GZG50 |
2 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-32010 |
1GZFE..GZG50 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-42000 |
1GZFE..GZG50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42000 |
1GZFE..GZG50 |
1 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-43000 |
1GZFE..GZG50 |
1 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-43000 |
1GZFE..GZG50 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-24010 |
1GZFE..GZG50 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-24010 |
1GZFE..GZG50 |
3 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-24010 |
1GZFE..GZG50 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
1GZFE..GZG50 STD |
12 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-20020 |
1GZFE..GZG50 STD |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
1GZFE..GZG50 STD |
12 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11126-20020 |
1GZFE..GZG50 STD |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-32010 |
1GZFE..GZG50 STD,CNGｼﾔ |
12 | ||
| 11131-15040 |
1GZFE..GZG50 STD |
12 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-32010 |
1GZFE..GZG50 STD,CNGｼﾔ |
12 | ||
| 11131-15040 |
1GZFE..GZG50 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-15030 |
1GZFE..GZG50 STD |
12 | ||
| 11135-32010 |
1GZFE..GZG50 STD,CNGｼﾔ |
12 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-32010 |
1GZFE..GZG50 STD,CNGｼﾔ |
12 | ||
| 11135-15030 |
1GZFE..GZG50 STD |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10006 |
1GZFE..GZG50 |
4 | ||
| 11155B - PIN, RING | ||||
| 90253-10006 |
1GZFE..GZG50 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07007 |
1GZFE..GZG50 |
26 | ||
| 11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07007 |
1GZFE..GZG50 |
26 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
1GZFE..GZG50 |
4 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
1GZFE..GZG50 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-62010 |
1GZFE..GZG50 NO.3 |
4 | ||
| 11183-32020 |
1GZFE..GZG50 NO.1 |
1 | ||
| 11183-50010 |
1GZFE..GZG50 NO.2 |
3 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
1GZFE..GZG50 ﾏｰｸ = EZ8021 |
6 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
1GZFE..GZG50 ﾏｰｸ = EZ8021 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-32070 |
1GZFE..GZG50 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90119-06843 |
1GZFE..GZG50 |
11 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-32010 |
1GZFE..GZG50 |
1 | ||
| 11202C - BOLT(FOR CYLINDER HEAD COVER LH) | ||||
| 90119-06843 |
1GZFE..GZG50 |
11 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-32020 |
1GZFE..GZG50 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-32010 |
1GZFE..GZG50 |
1 | ||
| 11259 - COVER, V-BANK | ||||
| 11259-32010 |
1GZFE..GZG50 |
1 | ||
| 11259-32020 |
1GZFE..GZG50 CNGｼﾔ |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50010 |
1GZFE..GZG50 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
1GZFE..GZG50 |
1 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-32010 |
1GZFE..GZG50 |
2 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-32010 |
1GZFE..GZG50 |
2 | ||
| 15303 - HARNESS SUB-ASSY, OIL CONTROL VALVE | ||||
| 15303-32010 |
1GZFE..GZG50 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GZFE..GZG50 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GZFE..GZG50 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46010 |
1GZFE..GZG50 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46010 |
1GZFE..GZG50 |
2 | ||
| 16603D - BUSH, IDLER PULLEY, NO.1 | ||||
| 90389-10044 |
1GZFE..GZG50 |
1 | ||
| Common parts | ||||
| 90116-06060 | ||||
| 90116-06100 | ||||
| 90116-08039 | ||||
| 90176-06023 | ||||
| 91511-B0612 | ||||
| 91511-B0614 | ||||
| 92132-B0614 | ||||

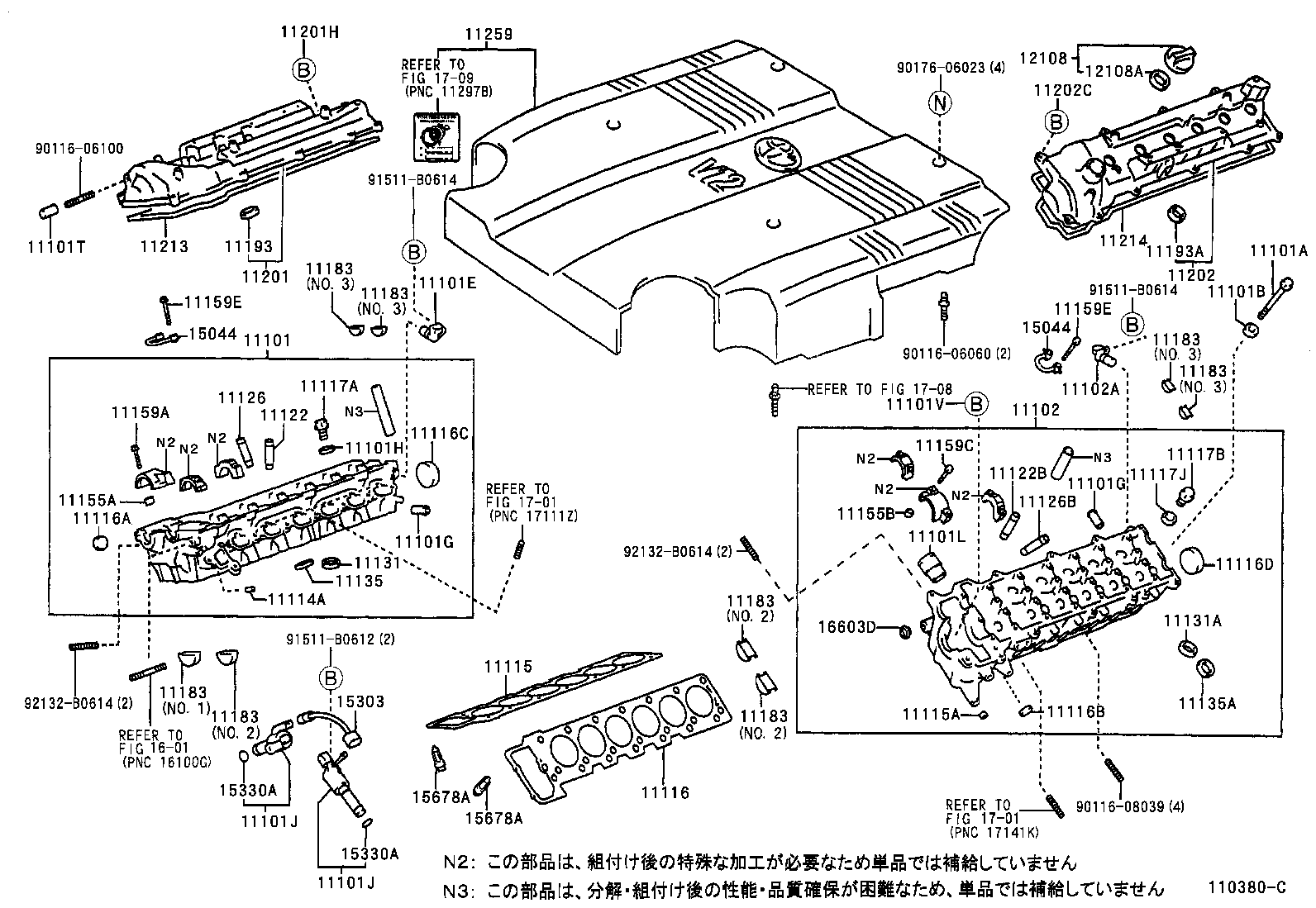

| Linked diagrams | ||||
| 1601 | ||||
| 1701 | ||||
| 1708 | ||||
| 1709 | ||||
