GZG50-AEPGK (1997)

Toyota Century

Production Apr 1997 - Jan 2005
Engine 1GZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9704- )

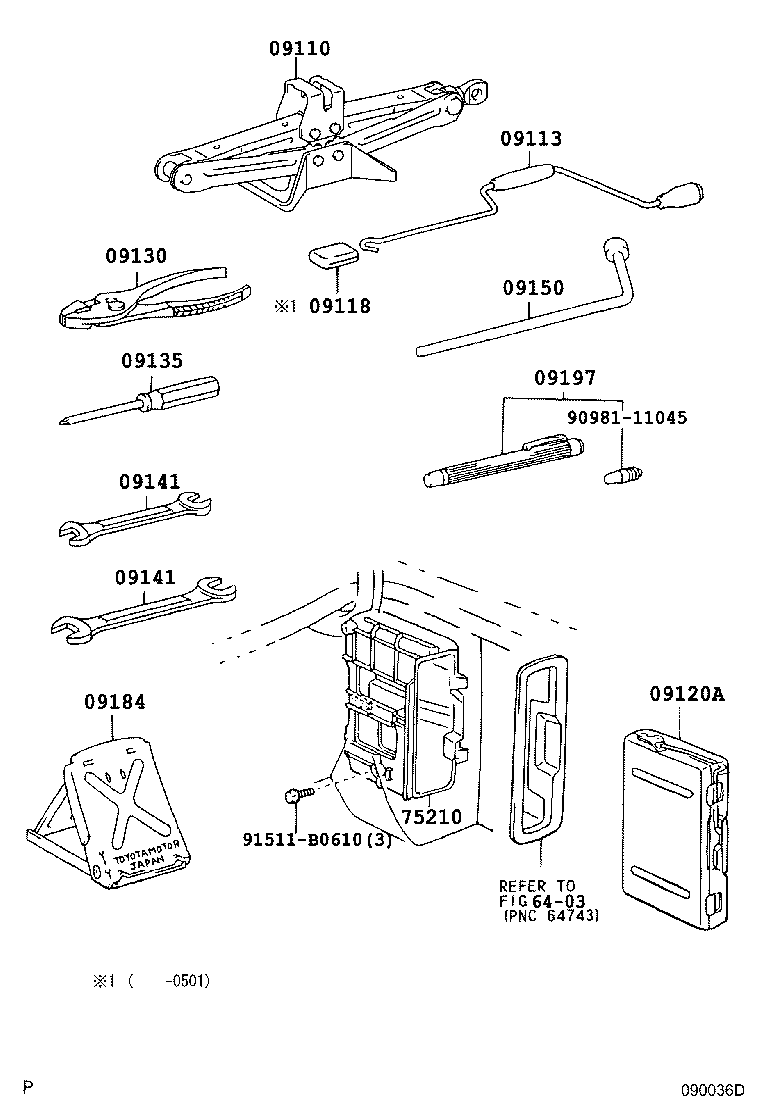

Click highlighted areas on diagram

diagram 09110 09113 09118 09120A 09130 09135 09141 09141 09150 09184 09197 6403 75210 9098111045 91511B0610
Part # Description Qty Price
09110 - JACK ASSY
09111-22060

GZG50

 1
09113 - HANDLE, JACK
09113-50010

GZG50

 1
09118 - COVER, JACK
09118-40010

GZG50

 1
09120A - CASE, TOOL
09120-50040C0

GZG50

BLACK,TRIM1#,4#,8#

 1
09130 - PLIERS
09130-50030

GZG50

 1
09135 - DRIVER, SCREW
09135-50040

GZG50

 1
09141 - SPANNER
09141-50060

GZG50

12 X 14

 1
09141-50050

GZG50

8 X 10

 1
09141 - SPANNER
09141-50060

GZG50

12 X 14

 1
09141-50050

GZG50

8 X 10

 1
09150 - WRENCH, HUB NUT BOX
09150-50010

GZG50

 1
09184 - STOPPER, WHEEL
09184-50010

GZG50

 1
09197 - LIGHT, PEN
09197-50030

GZG50

 1
75210 - BOX ASSY, TOOL
75210-50020

GZG50

 1
Common parts
90981-11045
91511-B0610
Linked diagrams
6403
