UCF31-AETQK (2003)

Toyota Celsior

Production Jul 2003 - Aug 2006
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

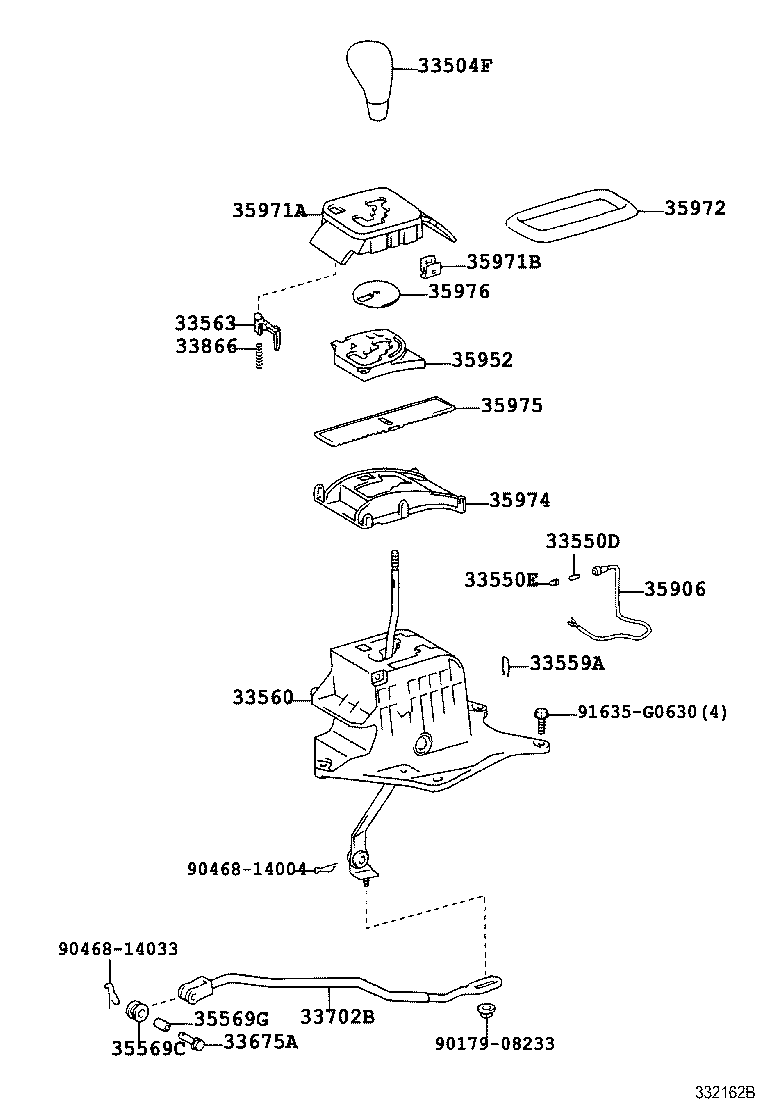

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33559A 33560 33563 33675A 33702B 33866 35569C 35569G 35906 35952 35971A 35971B 35972 35974 35975 35976 9017908233 9046814004 9046814033 91635G0630
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-30281B2

UCF3#

ﾎﾝｶﾞﾜ,DK.CHARCOAL,TRIM1#

 1
33504-30281E2

UCF3#

ﾎﾝｶﾞﾜ,CLOVEBROWN,TRIM03

 1
33504-50050C1

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,BLACK,TRIM2#

 1
33504-30281E1

UCF3#

ﾎﾝｶﾞﾜ,SANDAL WOOD,TRIM07

 1
33504-30281C1

UCF3#

ﾎﾝｶﾞﾜ,BLACK,TRIM2#

 1
33504-30281C1

UCF31

ﾎﾝｶﾞﾜ,BLACK,TRIM21,24

 1
33504-50050B1

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,MD.GRAY,TRIM1#

 1
33504-50050E3

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,SANDAL WOOD,TRIM07

 1
33504-50050E0

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,SANDAL WOOD,TRIM04

 1
33504-30281E1

UCF3#

ﾎﾝｶﾞﾜ,SANDAL WOOD,TRIM04

 1
33504-50050E2

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,CLOVEBROWN,TRIM03

 1
33504-30281E2

UCF3#

ﾎﾝｶﾞﾜ,CLOVEBROWN,TRIM00

 1
33504-50050C4

UCF31

ｳﾂﾄﾞ ﾉﾌﾞ,BLACK,TRIM21,24

 1
33504-50050E2

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,CLOVEBROWN,TRIM00

 1
33504-50050B0

UCF3#

ｳﾂﾄﾞ ﾉﾌﾞ,DK.CHARCOAL,TRIM1#

 1
33504-30281B5

UCF3#

ﾎﾝｶﾞﾜ,MD.GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

UCF3#

12V 1.2W ｿｹｯﾄ無し

 1
90981-11014

UCF3#

14V 1.4W

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

UCF3#

 1
33559A - NUT, SHIFT LEVER, NO.1
33559-30030

UCF3#

 1
33559-30030

UCF3#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-50020

UCF3#

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-30130

UCF3#

 1
33563-50070

UCF3#

 1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-35010

UCF3#

 1
33726-35010

UCF3#

 1
33726-30020

UCF3#

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-50070

UCF3#

 1
33702-50060

UCF3#

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-50010

UCF3#

 1
35569C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013

UCF3#

 1
90480-17013

UCF3#

 1
35569G - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091

UCF3#

 1
90560-08091

UCF3#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-50050

UCF3#

 1
35906-50060

UCF3#

 1
35952 - LENS, POSITION INDICATOR
35952-50020

UCF3#

 1
35952-50040

UCF3#

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-50070

UCF3#

 1
35971-50040

UCF3#

 1
35971B - CLIP, BEZEL
33593-50040

UCF3#

 3
33593-50020

UCF3#

 4
35972 - COVER, POSITION INDICATOR HOUSING
35972-50120

UCF3#

 1
35972-50140

UCF3#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-50030

UCF3#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-50030

UCF3#

 1
35975-30270

UCF3#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-50020

UCF3#

 1
Common parts
90179-08233
90468-14004
90468-14033
91635-G0630
