UCF31-AEAQK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0307)

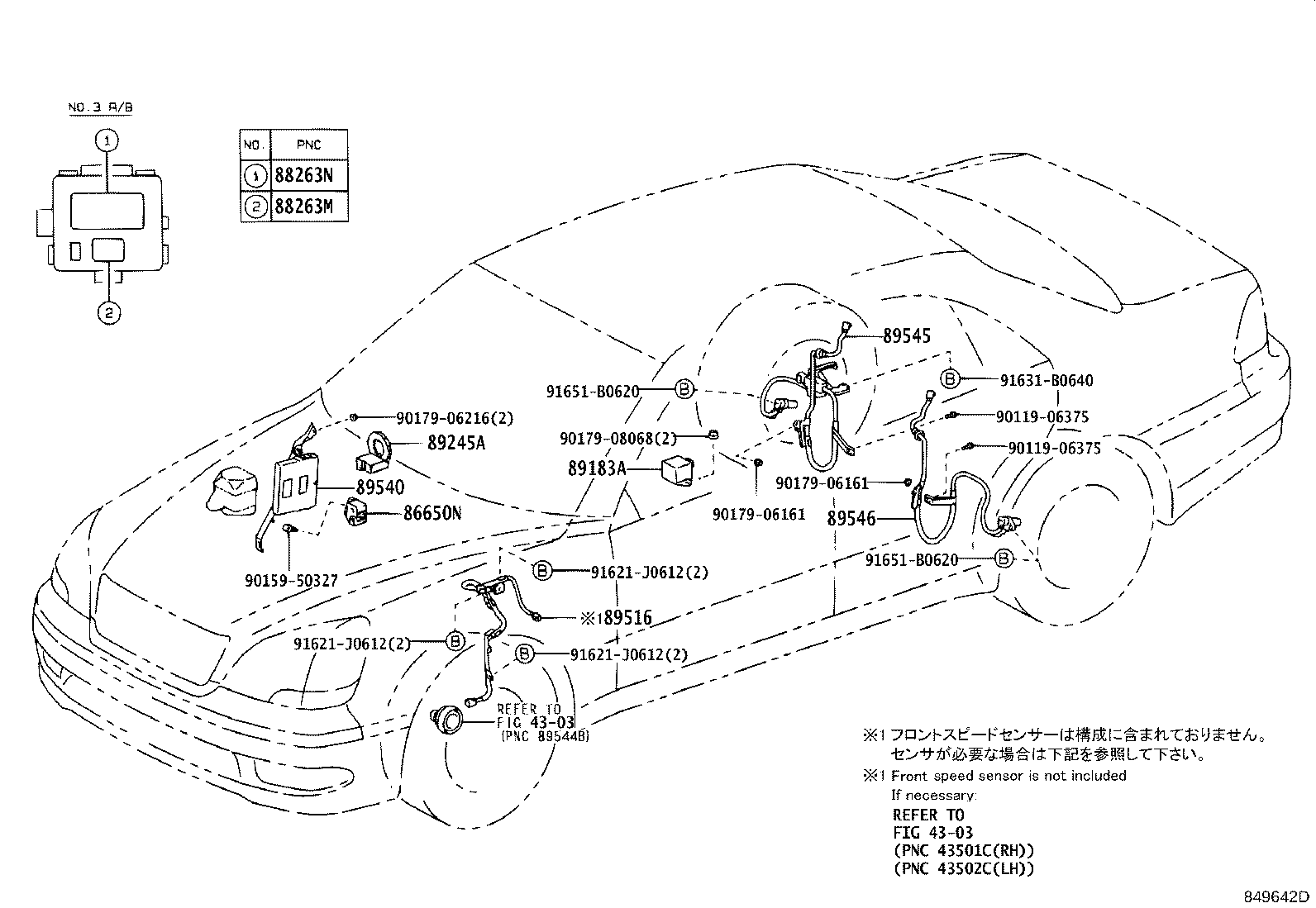

Click highlighted areas on diagram

diagram 4303 4303 86650N 88263M 88263N 89183A 89245A 89516 89540 89545 89546 9011906375 9011906375 9015950327 9017906161 9017906161 9017906216 9017908068 91621J0612 91621J0612 91621J0612 91631B0640 91651B0620 91651B0620
Part # Description Qty Price
86650N - BUZZER ASSY
86650-5A010

UCF3#

 1
88263M - RELAY, ABS SOLENOID
88263-32070

UCF3#

 1
88263N - RELAY, ABS MOTOR
88263-30150

UCF3#

 1
89183A - SENSOR, YAWRATE
89183-30060

UCF3#

 1
89245A - SENSOR, STEERING
89245-12010

UCF3#

 1
89516 - WIRE, SKID CONTROL SENSOR
89516-50010

UCF3#

右側

 1
89516-50020

UCF3#

左側

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-50120

UCF3#

 1
89540-50140

UCF3#

 1
89545 - SENSOR, SPEED, REAR RH
89545-50040

UCF3#

 1
89546 - SENSOR, SPEED, REAR LH
89546-50040

UCF3#

 1
Common parts
90119-06375
90159-50327
90179-06161
90179-06216
90179-08068
91621-J0612
91631-B0640
91651-B0620
Linked diagrams
4303
