UCF31-AEAQK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0307)

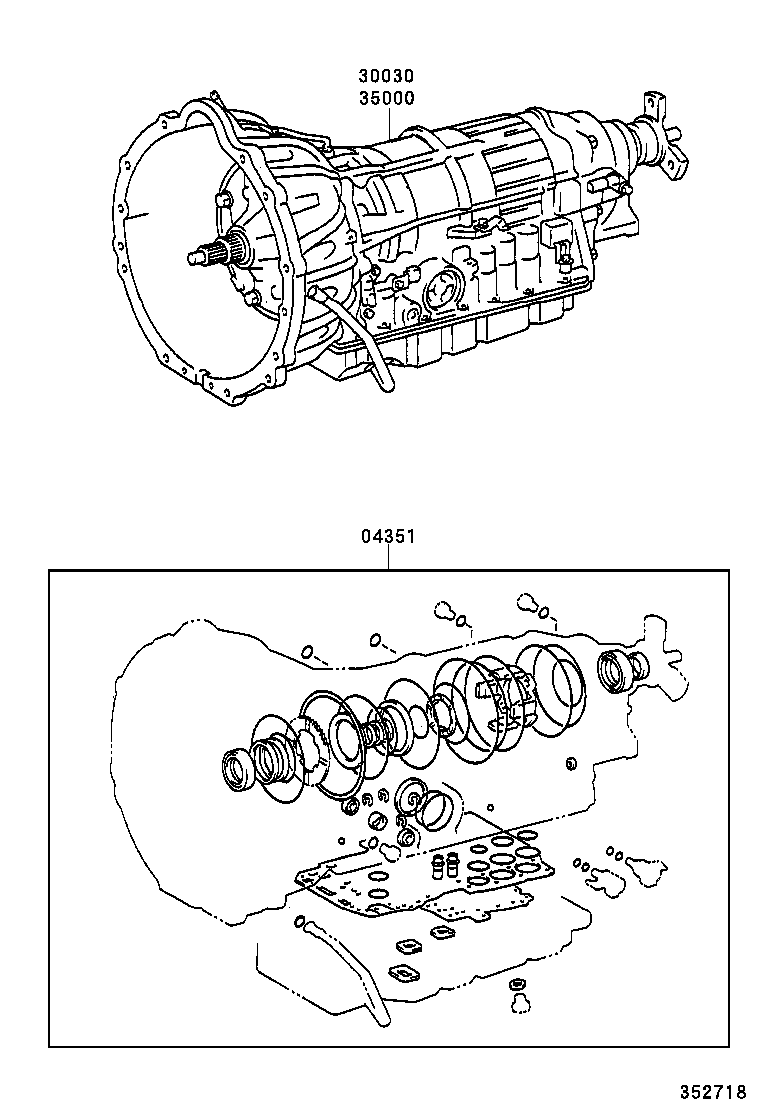

Click highlighted areas on diagram

A650E

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30490

UCF3#

 1
04351-30491

UCF3#

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-50130

UCF3#

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-50130

UCF3#

A650E

 1
