UCF30-AETNK (2003)

Toyota Celsior

Production Jul 2003 - Aug 2006
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

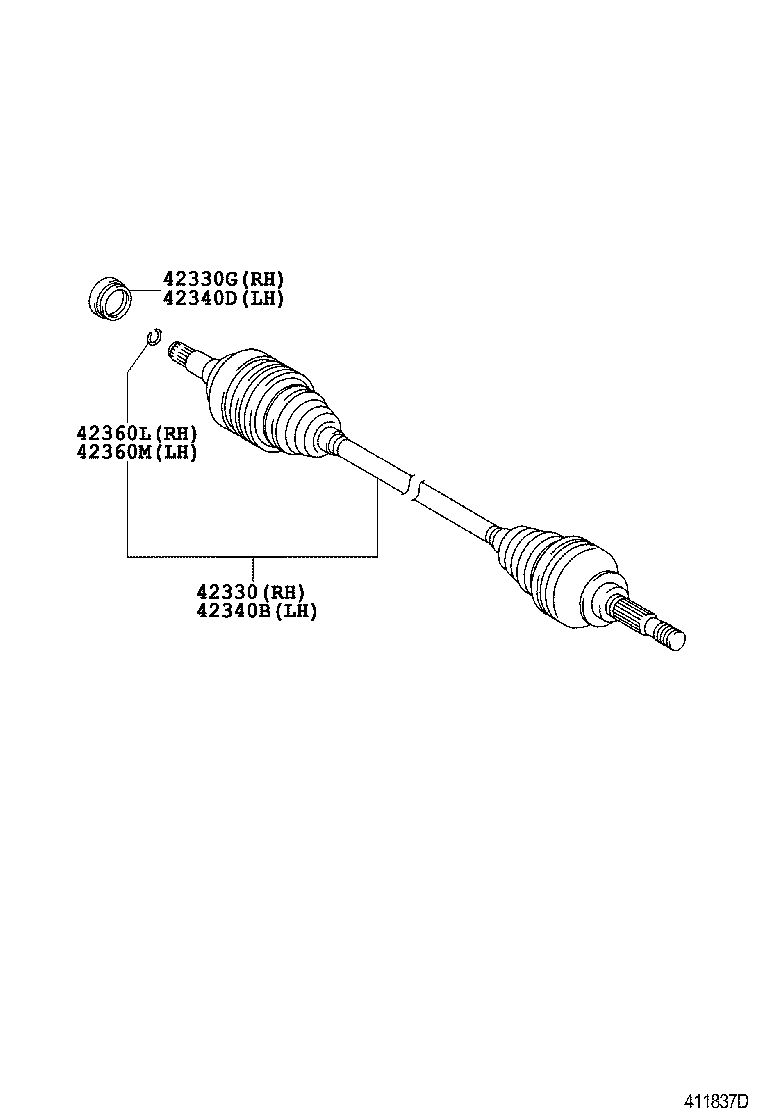

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

diagram 42330 42330G 42340B 42340D 42360L 42360M
Part # Description Qty Price
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-50050

UCF3#

 1
42330-50060

UCF3#

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-47015

UCF3#

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-50060

UCF3#

 1
42340-50050

UCF3#

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-47015

UCF3#

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90521-34003

UCF3#

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90521-34003

UCF3#

 1
