UCF30-AETNK (2003)

Toyota Celsior

Production Jul 2003 - Aug 2006
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0307- )

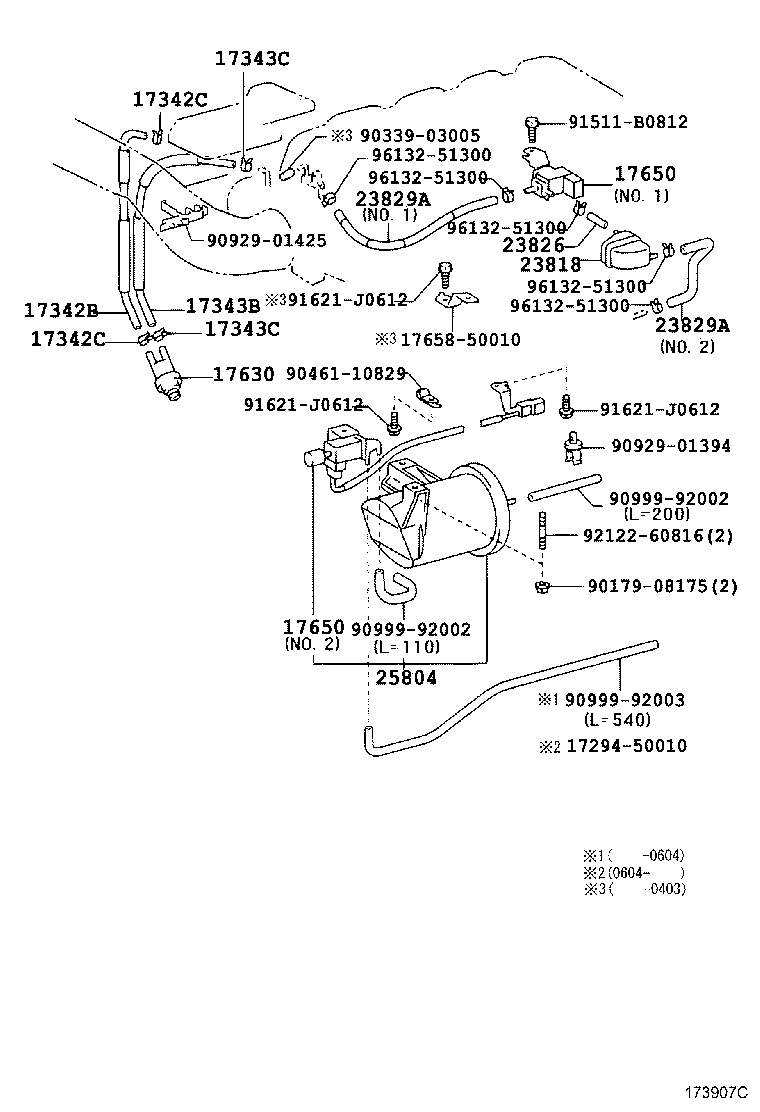

Click highlighted areas on diagram

diagram 1729450010 17342B 17342C 17342C 17343B 17343C 17343C 17630 17650 17650 1765850010 23818 23826 23829A 23829A 25804 9017908175 9033903005 9046110829 9092901394 9092901425 9099992002 9099992002 9099992003 91511B0812 91621J0612 91621J0612 91621J0612 9212260816 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50160

3UZFE..UCF3#

 1
17342-50160

3UZFE..UCF3#

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

3UZFE..UCF3#

 2
90467-10099

3UZFE..UCF3#

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

3UZFE..UCF3#

 2
90467-10099

3UZFE..UCF3#

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50140

3UZFE..UCF3#

 1
17343-50141

3UZFE..UCF3#

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-51000

3UZFE..UCF3#

 2
90467-10099

3UZFE..UCF3#

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-51000

3UZFE..UCF3#

 2
90467-10099

3UZFE..UCF3#

 2
17630 - VALVE ASSY, AIR CONTROL
17630-16040

3UZFE..UCF3#

 1
17630-16040

3UZFE..UCF3#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50121

3UZFE..UCF3#

NO.2

 1
25860-50100

3UZFE..UCF3#

NO.1

 1
25860-50121

3UZFE..UCF3#

NO.2

 1
25860-50100

3UZFE..UCF3#

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50121

3UZFE..UCF3#

NO.2

 1
25860-50100

3UZFE..UCF3#

NO.1

 1
25860-50121

3UZFE..UCF3#

NO.2

 1
25860-50100

3UZFE..UCF3#

NO.1

 1
23818 - PIPE, FUEL VAPOR FEED
23818-46110

3UZFE..UCF3#

 1
25719-31010

3UZFE..UCF3#

 1
23818-46110

3UZFE..UCF3#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-50030

3UZFE..UCF3#

 1
23826-50030

3UZFE..UCF3#

 1
23826-50060

3UZFE..UCF3#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50171

3UZFE..UCF3#

NO.2

 1
23829-50070

3UZFE..UCF3#

NO.1

 1
23829-50140

3UZFE..UCF3#

NO.2

 1
23829-50140

3UZFE..UCF3#

NO.2

 1
23829-50070

3UZFE..UCF3#

NO.1

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50171

3UZFE..UCF3#

NO.2

 1
23829-50070

3UZFE..UCF3#

NO.1

 1
23829-50140

3UZFE..UCF3#

NO.2

 1
23829-50140

3UZFE..UCF3#

NO.2

 1
23829-50070

3UZFE..UCF3#

NO.1

 1
25804 - VALVE SET, VACUUM CONTROL
25804-50011

3UZFE..UCF3#

 1
25804-50011

3UZFE..UCF3#

 1
Common parts
17294-50010
17658-50010
90179-08175
90339-03005
90461-10829
90929-01394
90929-01425
90999-92002
90999-92003
91511-B0812
91621-J0612
92122-60816
96132-51300
