UCF30-AETGK (2003)
Toyota Celsior
Production
Jul 2003
-
Aug 2006
Engine
3UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0307- )

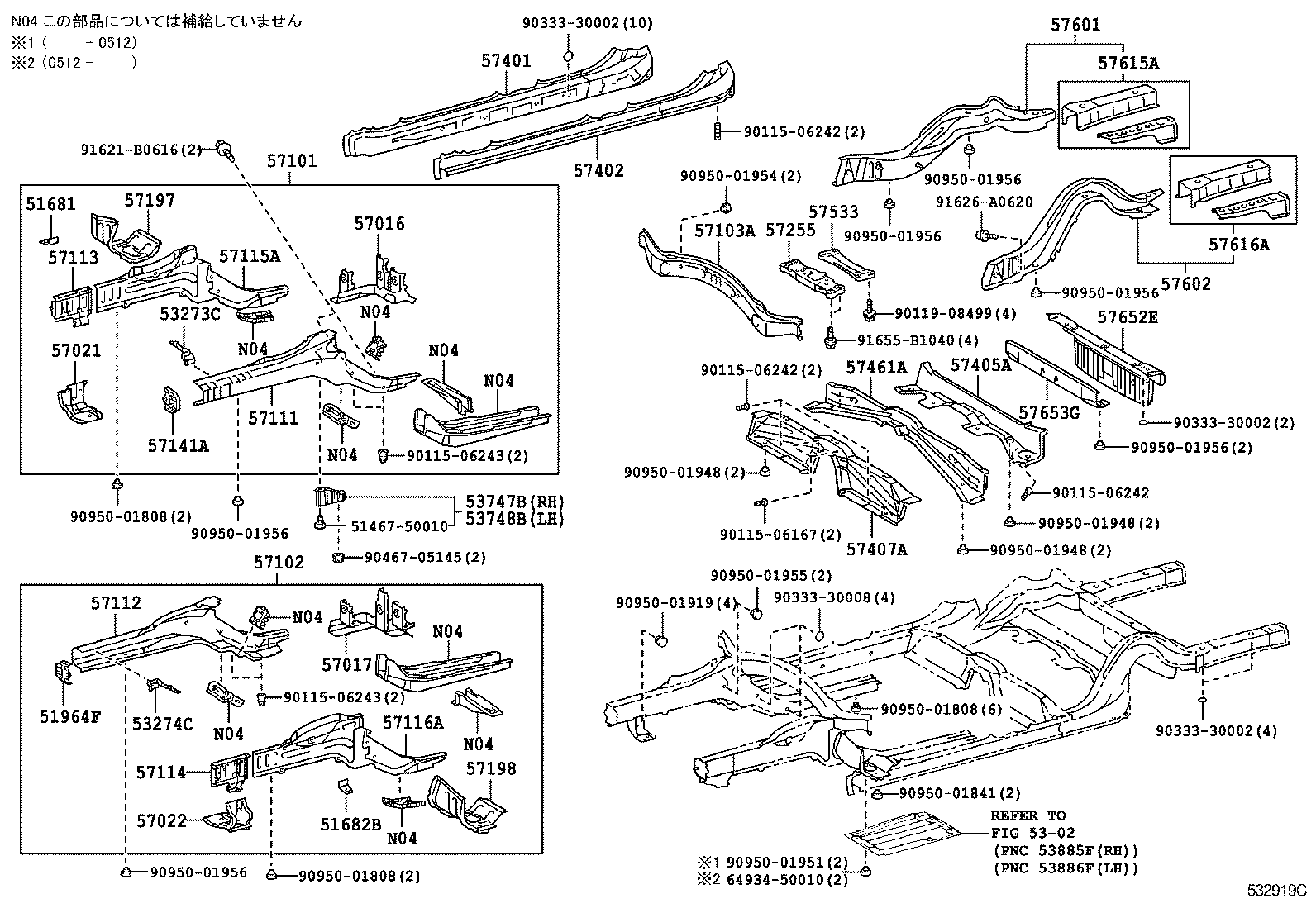

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-50040 |
UCF3# |
1 | ||
| 51681-50040 |
UCF3# |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-50040 |
UCF3# |
1 | ||
| 51682-50040 |
UCF3# |
1 | ||
| 51964F - HOOK, TRANSPORT, LH | ||||
| 51093-50040 |
UCF3# |
1 | ||
| 51093-50040 |
UCF3# |
1 | ||
| 53273C - REINFORCEMENT, RADIATOR SUPPORT, RH | ||||
| 53273-50020 |
UCF3# |
1 | ||
| 53273-50020 |
UCF3# |
1 | ||
| 53274C - REINFORCEMENT, RADIATOR SUPPORT, LH | ||||
| 53274-50020 |
UCF3# |
1 | ||
| 53274-50020 |
UCF3# |
1 | ||
| 53747B - PLATE, AIR SEALED, RH | ||||
| 53747-50010 |
UCF3# |
1 | ||
| 53747-50010 |
UCF3# |
1 | ||
| 53748B - PLATE, AIR SEALED, LH | ||||
| 53748-50010 |
UCF3# |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-50040 |
UCF3# |
1 | ||
| 57016-50030 |
UCF3# |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-50040 |
UCF3# |
1 | ||
| 57017-50030 |
UCF3# |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57021-50010 |
UCF3# |
1 | ||
| 57021-50010 |
UCF3# |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57022-50010 |
UCF3# |
1 | ||
| 57022-50010 |
UCF3# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-50180 |
UCF3# |
1 | ||
| 57101-50170 |
UCF3# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-50140 |
UCF3# |
1 | ||
| 57102-50130 |
UCF3# |
1 | ||
| 57103A - CROSSMENBER SUB-ASSY, FLOOR, NO.3 | ||||
| 57103-50020 |
UCF3# |
1 | ||
| 57103-50020 |
UCF3# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-50110 |
UCF3# |
1 | ||
| 57111-50901 |
UCF3# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-50070 |
UCF3# |
1 | ||
| 57112-50901 |
UCF3# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-50030 |
UCF3# |
1 | ||
| 57113-50030 |
UCF3# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-50030 |
UCF3# |
1 | ||
| 57114-50030 |
UCF3# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-50060 |
UCF3# |
1 | ||
| 57115-50050 |
UCF3# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-50060 |
UCF3# |
1 | ||
| 57116-50050 |
UCF3# |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-50030 |
UCF3# |
1 | ||
| 57141-50030 |
UCF3# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-50030 |
UCF3# |
1 | ||
| 57197-50030 |
UCF3# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-50030 |
UCF3# |
1 | ||
| 57198-50030 |
UCF3# |
1 | ||
| 57255 - MEMBER, ENGINE REAR MOUNTING | ||||
| 57255-50020 |
UCF3# |
1 | ||
| 57255-50020 |
UCF3# |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-50902 |
UCF3# |
1 | ||
| 57401-50903 |
UCF3# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-50902 |
UCF3# |
1 | ||
| 57402-50902 |
UCF3# |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-50010 |
UCF3# |
1 | ||
| 57405-50010 |
UCF3# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-50030 |
UCF3# |
1 | ||
| 57407-50040 |
UCF3#..B,C ｱﾘ(ﾘﾔ ﾊﾟﾜ- ｽﾗｲﾄﾞ ｼ-ﾄ) |
1 | ||
| 57407-50030 |
UCF3# |
1 | ||
| 57461A - MEMBER, CENTER FLOOR CROSS | ||||
| 57461-50040 |
UCF3# |
1 | ||
| 57461-50040 |
UCF3# |
1 | ||
| 57533 - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-50010 |
UCF3# |
1 | ||
| 57533-50010 |
UCF3# |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-50906 |
UCF3# |
1 | ||
| 57601-50906 |
UCF3# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-50906 |
UCF3# |
1 | ||
| 57602-50906 |
UCF3# |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-50904 |
UCF3# |
1 | ||
| 57615-50904 |
UCF3# |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-50904 |
UCF3# |
1 | ||
| 57616-50904 |
UCF3# |
1 | ||
| 57652E - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50040 |
UCF3# |
1 | ||
| 57652-50040 |
UCF3# |
1 | ||
| 57653G - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-50030 |
UCF3# |
1 | ||
| 57653-50030 |
UCF3# |
1 | ||
| Common parts | ||||
| 51467-50010 | ||||
| 64934-50010 | ||||
| 90115-06167 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90119-08499 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90467-05145 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
| 90950-01919 | ||||
| 90950-01948 | ||||
| 90950-01951 | ||||
| 90950-01954 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||
| 91621-B0616 | ||||
| 91626-A0620 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5302 | ||||
