UCF30-AEANK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0307)

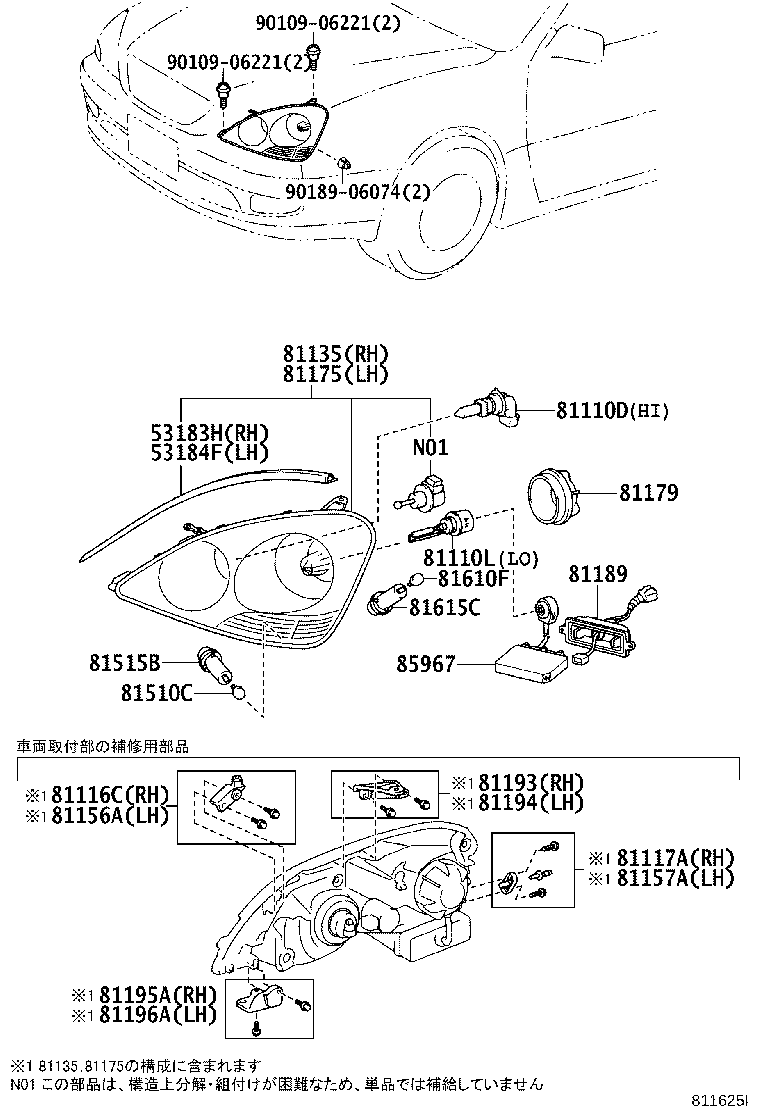

Click highlighted areas on diagram

diagram 53183H 53184F 81110D 81110L 81116C 81117A 81135 81156A 81157A 81175 81179 81189 81193 81194 81195A 81196A 81510C 81515B 81610F 81615C 85967 9010906221 9010906221 9018906074
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-50040

UCF3#

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-50040

UCF3#

 1
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

UCF3#

12V 65W

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20008

UCF3#

85V 35W

 2
81116C - BRACKET, HEADLAMP, RH
81116-50010

UCF3#

 1
81117A - BRACKET, HEADLAMP, RH
81117-50010

UCF3#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-50230

UCF3#

 1
81130-50231

UCF3#

 1
81156A - BRACKET, HEADLAMP, LH
81156-50010

UCF3#

 1
81157A - BRACKET, HEADLAMP, LH
81117-50010

UCF3#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-50230

UCF3#

 1
81170-50231

UCF3#

 1
81179 - COVER, HEADLAMP SOCKET
81179-50180

UCF3#

 2
81189 - COVER, HEADLAMP
81179-50220

UCF3#

左側

 1
81139-50220

UCF3#

右側

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-50010

UCF3#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-50010

UCF3#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-50010

UCF3#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-50010

UCF3#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

UCF3#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

UCF3#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

UCF3#

12V 5W

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
81138-22680

UCF3#

 2
85967 - COMPUTER, LIGHT CONTROL
85967-41010

UCF3#

 2
Common parts
90109-06221
90189-06074
