UCF30-AEANK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

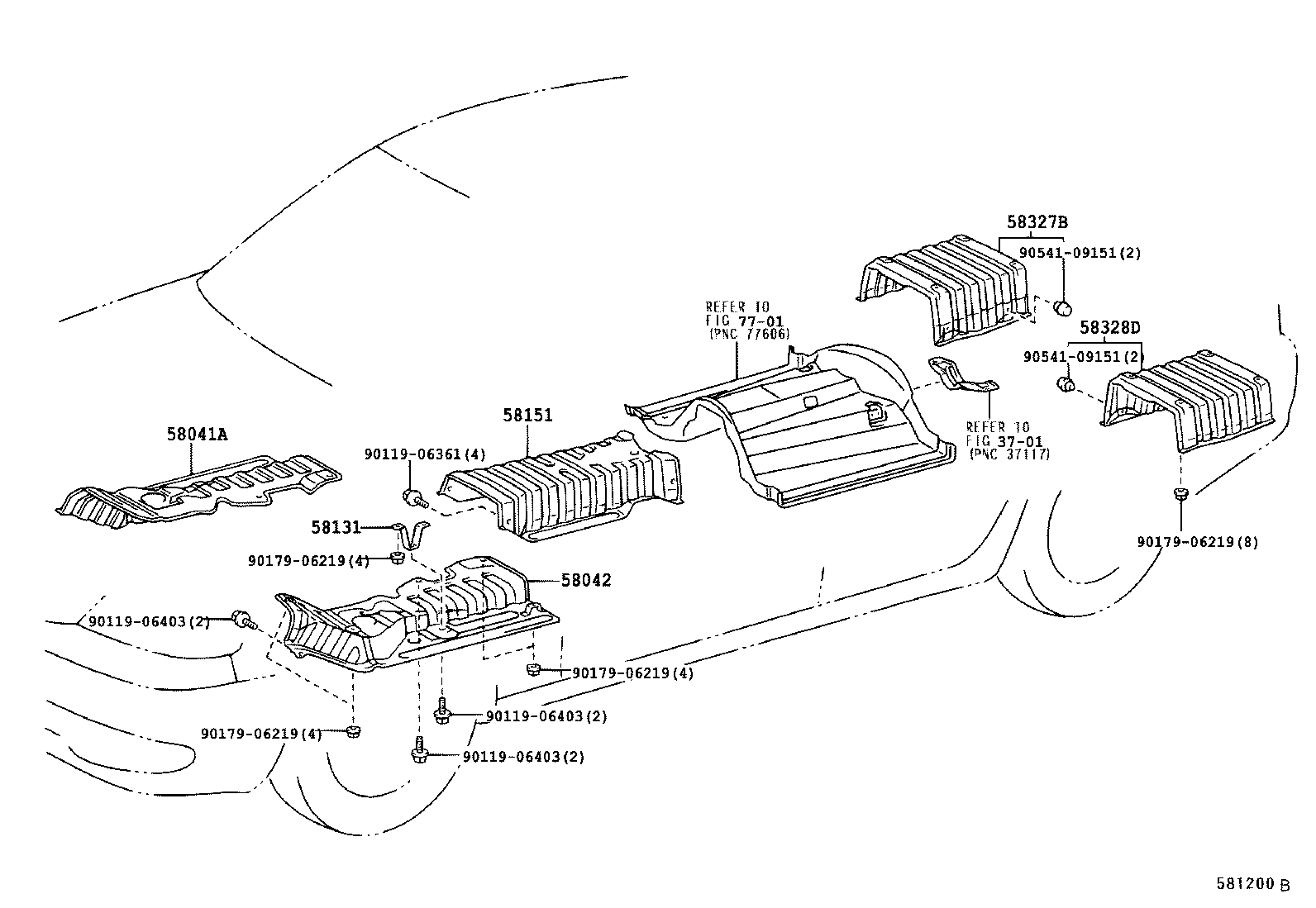

Click highlighted areas on diagram

diagram 3701 58041A 58042 58131 58151 58327B 58328D 7701 9011906361 9011906403 9011906403 9011906403 9017906219 9017906219 9017906219 9017906219 9054109151 9054109151
Part # Description Qty Price
58041A - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1
58041-50010

UCF3#

 1
58042 - INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2
58042-50010

UCF3#

 1
58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-50010

UCF3#

 2
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-50020

UCF3#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-50030

UCF3#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-50020

UCF3#

 1
Common parts
90119-06361
90119-06403
90179-06219
90541-09151
Linked diagrams
3701
7701
