UCF30-AEANK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

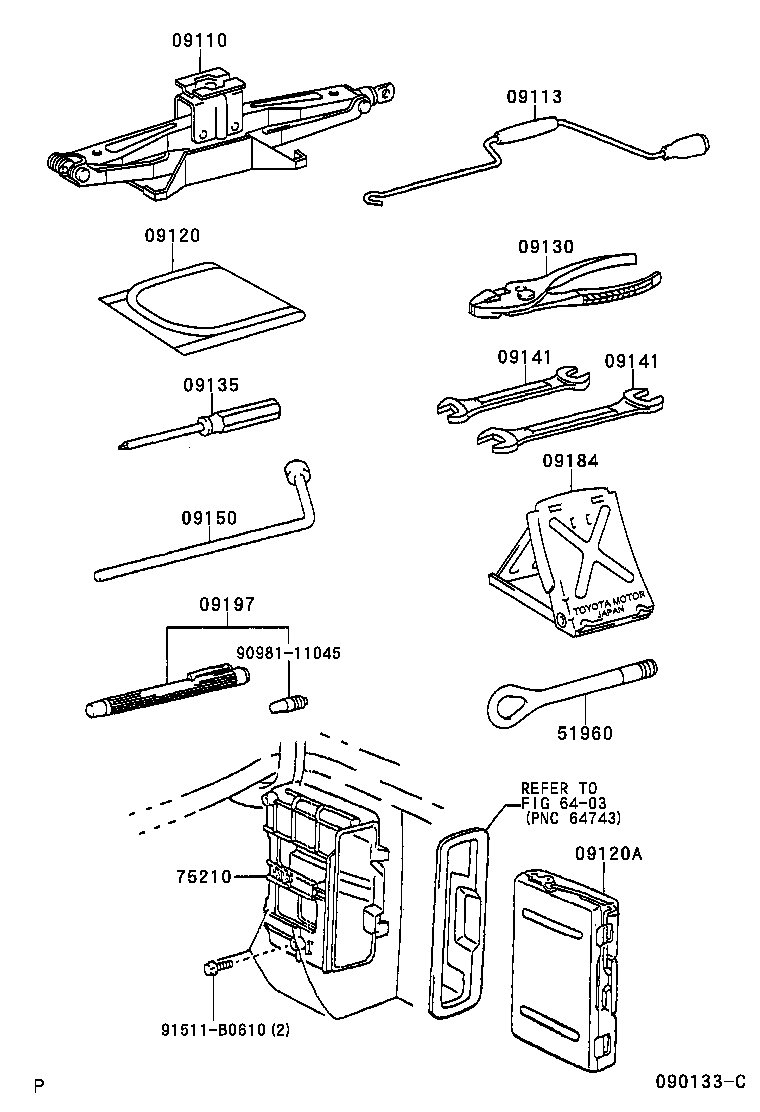

Click highlighted areas on diagram

diagram 09110 09113 09120 09120A 09130 09135 09141 09141 09150 09184 09197 51960 6403 75210 9098111045 91511B0610
Part # Description Qty Price
09110 - JACK ASSY
09111-50050

UCF3#

 1
09111-50051

UCF3#

 1
09113 - HANDLE, JACK
09113-50010

UCF3#

 1
09120 - BAG, TOOL
09120-28040

UCF3#

 1
09120A - CASE, TOOL
09120-50040C0

UCF3#

BLACK,TRIM03,04,1#,2#

 1
09130 - PLIERS
09130-50030

UCF3#

 1
09135 - DRIVER, SCREW
09135-50040

UCF3#

 1
09141 - SPANNER
09141-50050

UCF3#

8 X 10

 1
09141-50060

UCF3#

12 X 14

 1
09141 - SPANNER
09141-50050

UCF3#

8 X 10

 1
09141-50060

UCF3#

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-50010

UCF3#

 1
09184 - STOPPER, WHEEL
09184-00010

UCF3#

 1
09184-50010

UCF3#

 1
09197 - LIGHT, PEN
09197-50030

UCF3#

 1
51960 - HOOK ASSY, FRONT
51961-50030

UCF3#

 1
75210 - BOX ASSY, TOOL
75210-50040

UCF3#

 1
Common parts
90981-11045
91511-B0610
Linked diagrams
6403
