UCF30-AEAGK (2000)

Toyota Celsior

Production Aug 2000 - Jul 2003
Engine 3UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

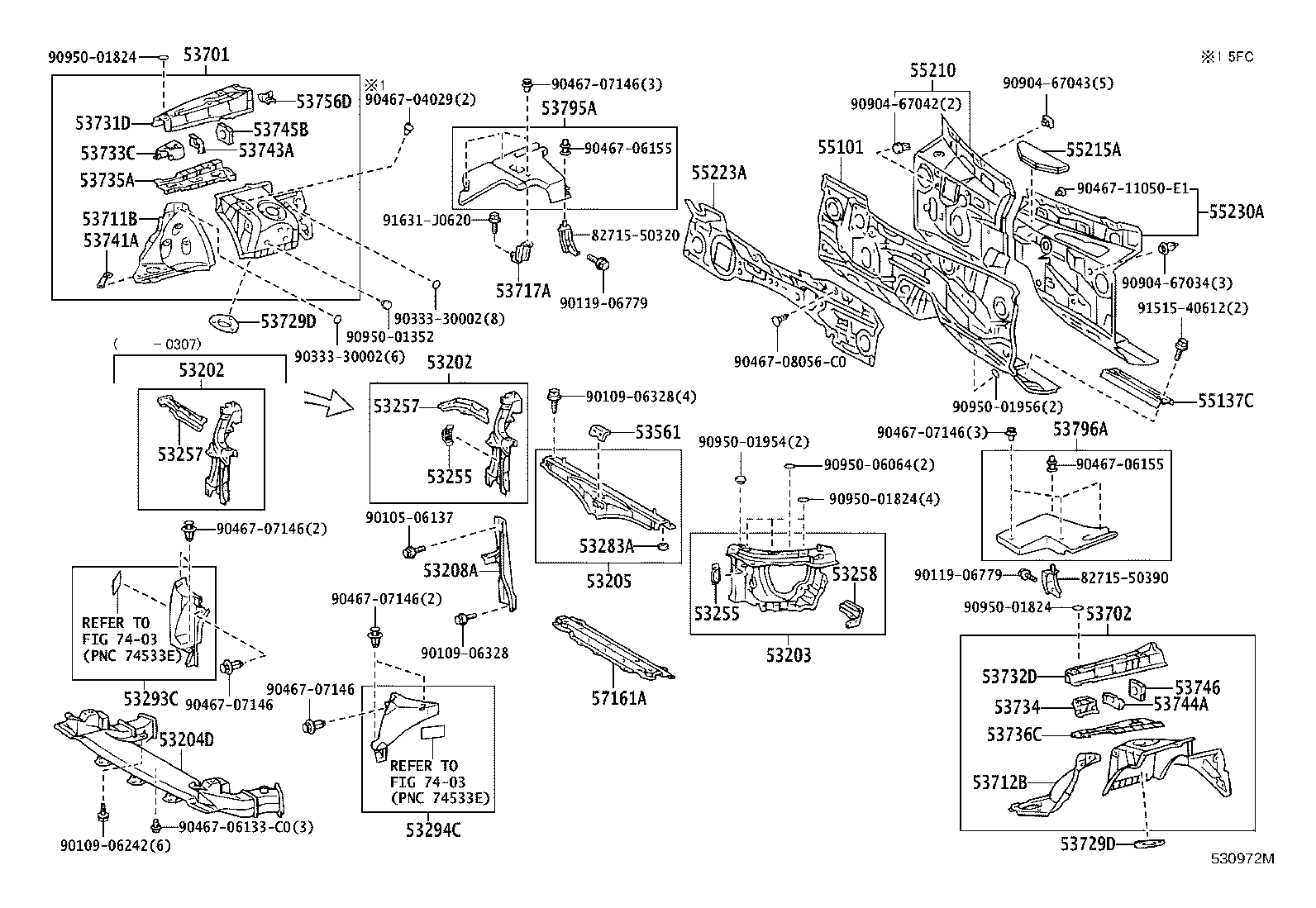

Click highlighted areas on diagram

diagram 53202 53202 53203 53204D 53205 53208A 53255 53255 53257 53257 53258 53283A 53293C 53294C 53561 53701 53702 53711B 53712B 53717A 53729D 53729D 53731D 53732D 53733C 53734 53735A 53736C 53741A 53743A 53744A 53745B 53746 53756D 53795A 53796A 55101 55137C 55210 55215A 55223A 55230A 57161A 7403 7403 8271550320 8271550390 9010506137 9010906242 9010906328 9010906328 9011906779 9011906779 9033330002 9033330002 9046704029 9046706133C0 9046706155 9046706155 9046707146 9046707146 9046707146 9046707146 9046707146 9046707146 9046708056C0 9046711050E1 9090467034 9090467042 9090467043 9095001352 9095001824 9095001824 9095001824 9095001954 9095001956 9095006064 9151540612 91631J0620
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-50900

UCF3#

 1
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53211-50900

UCF3#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53212-50900

UCF3#

 1
53204D - GUIDE SUB-ASSY, LOWER WIND
53204-50040

UCF3#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-50900

UCF3#

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-50030

UCF3#

 1
53257 - BRACKET, FRONT END PANEL MOUNTING, RH
53257-50010

UCF3#

 1
53257 - BRACKET, FRONT END PANEL MOUNTING, RH
53257-50010

UCF3#

 1
53258 - BRACKET, FRONT END PANEL MOUNTING, LH
53258-50010

UCF3#

 1
53283A - REINFORCEMENT, RADIATOR SUPPORT, LOWER
53283-30010

UCF3#

 2
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-50040

UCF3#

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-50040

UCF3#

 1
53561 - GUIDE, HOOD AUXILIARY CATCH HOOK
53561-30010

UCF3#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-50170

UCF30

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-50190

UCF3#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-50070

UCF3#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-50040

UCF3#

 1
53717A - PLATE, FENDER APRON
53717-50020

UCF3#

 1
53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53729-50020

UCF3#

 2
53729D - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53729-50020

UCF3#

 2
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-50040

UCF3#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-50040

UCF3#

 1
53733C - PATCH, FRONT FENDER APRON
53733-50040

UCF3#

 1
53734 - PATCH, FRONT FENDER APRON, NO.4
53734-50010

UCF3#

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-50040

UCF3#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-50040

UCF3#

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-50030

UCF3#

 1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-50030

UCF3#

 1
53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH
53745-50030

UCF3#

 1
53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH
53746-50030

UCF3#

 1
53756D - BRACKET, BRAKE ACTUATOR MOUNTING
53756-50010

UCF3#

 1
53795A - COVER, ENGINE ROOM, SIDE
53795-50020

UCF3#

 1
53796A - COVER, ENGINE ROOM SIDE, LH
53796-50010

UCF3#

 1
55101 - PANEL SUB-ASSY, DASH
55101-50070

UCF3#

 1
55101-50090

UCF3#

 1
55101-50060

UCF3#

 1
55137C - BRACKET, TOE BOARD, NO.2
55137-50010

UCF3#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-50100

UCF3#

 1
55210-50080

UCF3#

 1
55215A - PAD, DASH PANEL INSULATOR, NO.3
55215-50010

UCF3#

 1
55223A - INSULATOR, DASH PANEL, OUTER
55223-50080

UCF3#

 1
55230A - INSULATOR ASSY, DASH PANEL, NO.4
55230-50041

UCF3#

 1
55230-50040

UCF3#

 1
55230-50050

UCF3#

 1
57161A - MEMBER, FRONT CROSS, FRONT W/REAR
57161-50040

UCF3#

 1
Common parts
82715-50320
82715-50390
90105-06137
90109-06242
90109-06328
90119-06779
90333-30002
90467-04029
90467-06133C0
90467-06155
90467-07146
90467-08056C0
90467-11050E1
90904-67034
90904-67042
90904-67043
90950-01352
90950-01824
90950-01954
90950-01956
90950-06064
91515-40612
91631-J0620
Linked diagrams
7403
