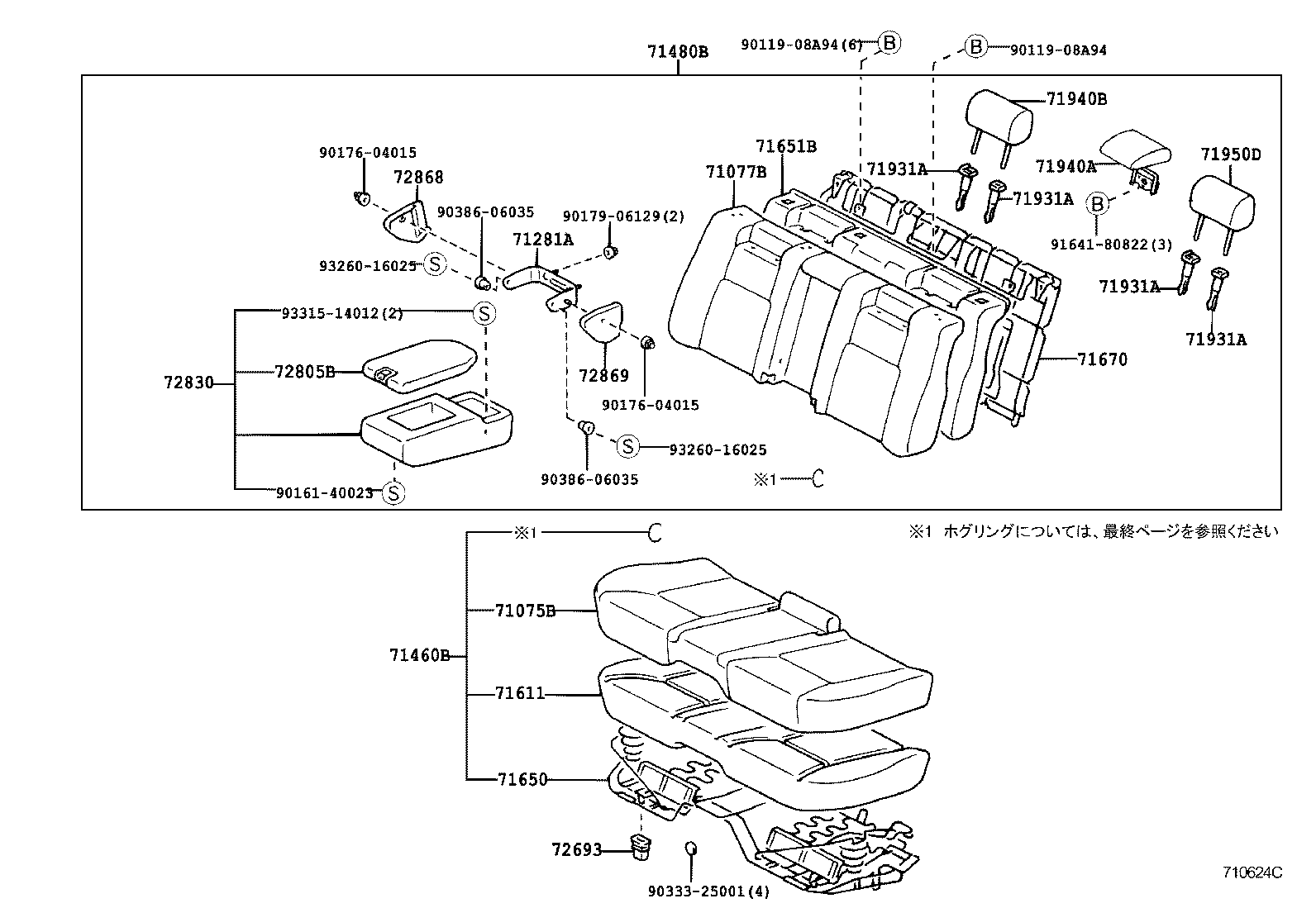

UCF21-AEPQK (1994)
Toyota Celsior
(9410-9707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-50150G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71075-50170B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71075-50170A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71075-50171A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71075-50171G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71075-50170G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71075-50150G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71075-50180B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71075-50180B0 |
UCF2# ﾎﾝｶﾞﾜ ｼ-ﾄ,BLUE GRAY,TRIM1# |
1 | ||
| 71075-50150A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71075-50171B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-50180B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71077-50180A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71077-50180G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71077-50160G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71077-50190B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077-50160A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71077-50181G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71077-50181B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71077-50160G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71077-50190B0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077-50181A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-50040 |
UCF2# |
1 | ||
| 71281-50050 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71281-50050 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-50270G0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71460-50300B0 |
UCF2#..B,C ***,BLUE GRAY,TRIM1# |
1 | ||
| 71460-50300G0 |
UCF2#..B,C ***,AGATE,TRIM6# |
1 | ||
| 71460-50310B0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71460-50300A0 |
UCF2#..B,C ***,IVORY,TRIM0# |
1 | ||
| 71460-50270A0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71460-50180A0 |
UCF2#..B,C ***,IVORY,TRIM0# |
1 | ||
| 71460-50180G0 |
UCF2#..B,C ***,AGATE,TRIM6# |
1 | ||
| 71460-50180B0 |
UCF2#..B,C ***,BLUE GRAY,TRIM1# |
1 | ||
| 71460-50270G0 |
UCF2# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71460-50310B0 |
UCF2# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-50400A0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50440B0 |
UCF2#..B,C ***,BLUE GRAY,TRIM1# |
1 | ||
| 71480-50450B0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480-50400G0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50330A0 |
UCF2#..B,C ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50330G0 |
UCF2# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50440A0 |
UCF2#..B,C ***,IVORY,TRIM0# |
1 | ||
| 71480-50440G0 |
UCF2#..B,C ***,AGATE,TRIM6# |
1 | ||
| 71480-50420B0 |
UCF2# ***,ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480-50390B0 |
UCF2#..B,C ***,BLUE GRAY,TRIM1# |
1 | ||
| 71480-50390G0 |
UCF2#..B,C ***,AGATE,TRIM6# |
1 | ||
| 71480-50390A0 |
UCF2#..B,C ***,IVORY,TRIM0# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-50100 |
UCF2# |
1 | ||
| 71611-50080 |
UCF2#..B,C ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71611-50080 |
UCF2# ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-50050 |
UCF2# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-50090 |
UCF2# |
1 | ||
| 71651-50070 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-50060 |
UCF2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71940B - HEADREST ASSY, REAR SEAT, RH | ||||
| 71940-50170A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71940-50170B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50160A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50170G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50200G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50150B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50200A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50210G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71940-50160G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50210A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71940-50161A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50190B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50210B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50151B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71940-50201G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50211A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71940-50211B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50211G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71940-50191B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50201A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50161G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950D - HEADREST ASSY, REAR SEAT, LH | ||||
| 71940-50150B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50151B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71950-50060A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71950-50060B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50161A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50040B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50161G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50160A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50050A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50060G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71950-50051G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50171G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50160G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950-50050G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950-50061B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71950-50051A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50171B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71950-50041B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71950-50061A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71950-50061G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-14050 |
UCF2# |
4 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-50030A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72805-50030G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72805-50060A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72805-50030B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72805-50060G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72805-50010A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72805-50060B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72805-50040B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50050A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72805-50061A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72805-50010G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72805-50031A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72805-50061B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72805-50061G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72805-50031B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72805-50040B0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50031G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72805-50070B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50010G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72805-50050G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50240B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50280G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50360B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50300A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72830-50340A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50300B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72830-50300G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72830-50280A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50340G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50341A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50280G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50301B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72830-50350B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72830-50341G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50351B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72830-50351A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72830-50360B0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50301A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72830-50350A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72830-50350G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72830-50241B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50301G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72830-50351G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-50050G0 |
UCF21 AGATE,TRIM6# |
1 | ||
| 72868-50050A0 |
UCF21 IVORY,TRIM0# |
1 | ||
| 72868-50050B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72868-50070B0 |
UCF2# BLUE GRAY,TRIM1# |
1 | ||
| 72868-50050B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-50040G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72869-50040B0 |
UCF21 BLUE GRAY,TRIM1# |
1 | ||
| 72869-50040G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72869-50050G0 |
UCF2# AGATE,TRIM6# |
1 | ||
| 72869-50040A0 |
UCF21 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-08A94 | ||||
| 90161-40023 | ||||
| 90176-04015 | ||||
| 90179-06129 | ||||
| 90333-25001 | ||||
| 90386-06035 | ||||
| 91641-80822 | ||||
| 93260-16025 | ||||
| 93315-14012 | ||||

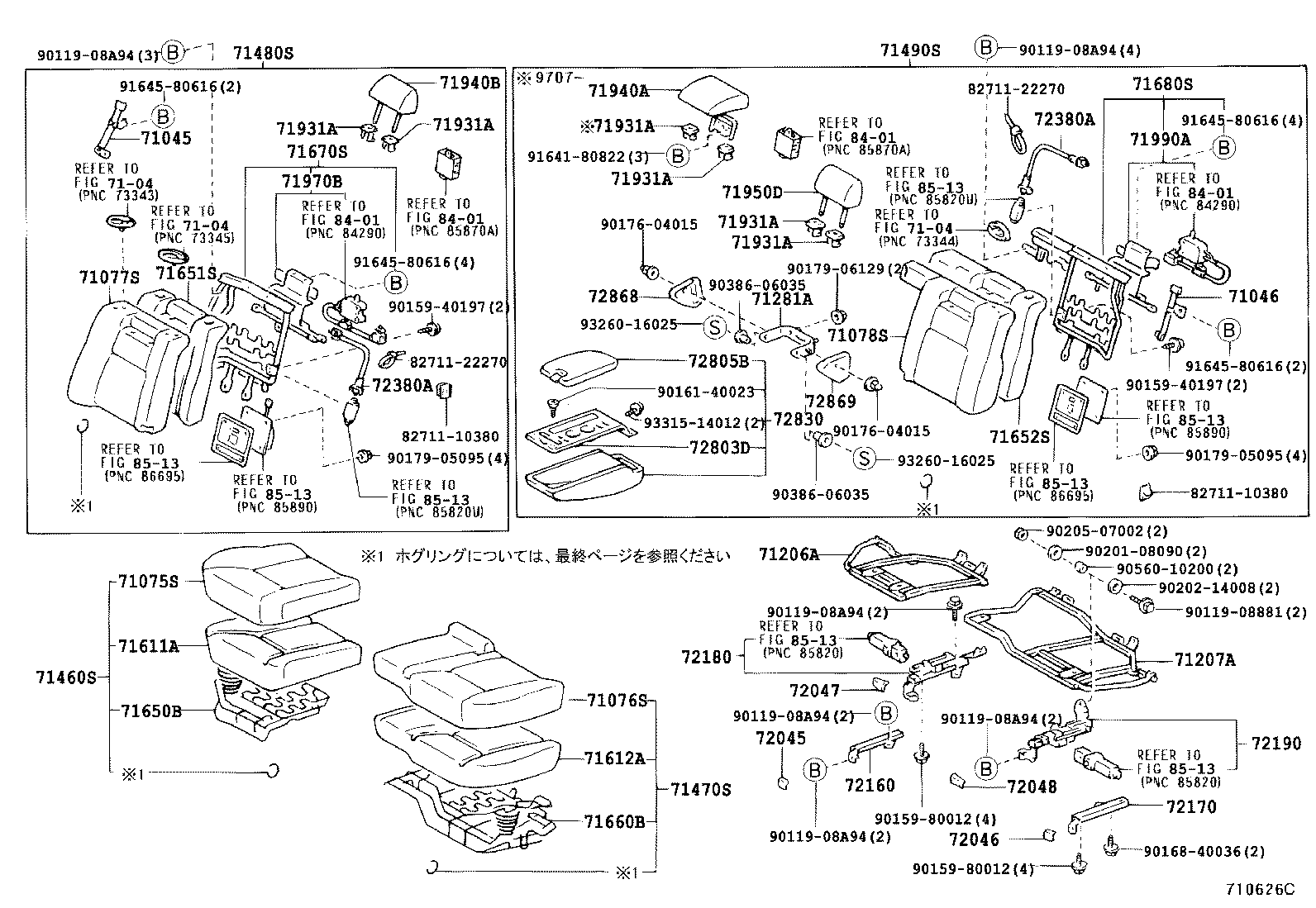

(9410- )
F ﾊﾟﾂｹ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71045 - WIRE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71045-50010 |
UCF21 |
1 | ||
| 71046 - WIRE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71046-50010 |
UCF21 |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-50200A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71075-50201B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71075-50190A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71075-50201G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71075-50190G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71075-50200B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71075-50201A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71075-50200G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71075-50210B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-50070G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71076-50070A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71076-50080B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71076-50081A1 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71076-50080A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71076-50081G1 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71076-50080G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71076-50090B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71076-50081B1 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-50210B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077-50210G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71077-50200G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71077-50220B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077-50200A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71077-50211B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71077-50211A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71077-50210A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71077-50211G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-50080G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71078-50080A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71078-50081B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71078-50070G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71078-50080B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71078-50081A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71078-50070A0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71078-50090B0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71078-50081G0 |
UCF21 ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71206A - BRACKET SUB-ASSY, REAR SEAT STOPPER, RH | ||||
| 71206-50021 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71206-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71207A - BRACKET SUB-ASSY, REAR SEAT STOPPER, LH | ||||
| 71207-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71207-50021 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-50040 |
UCF2# |
1 | ||
| 71281-50050 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71281-50050 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-50320A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71460-50340A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71460-50340G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71460-50320G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71460-50320B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71460-50330B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71460-50350G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71460-50350A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71460-50350B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-50070A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71470-50080B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71470-50090G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71470-50070B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71470-50070G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71470-50090A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71470-50100A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71470-50100B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71470-50100G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-50470A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50300G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50470G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50300A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50490B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480-50500G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50290B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480-50480G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71480-50480A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50500A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71480-50470B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71480-50480B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-50100A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71490-50130B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71490-50130G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71490-50100B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71490-50120G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71490-50150G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71490-50100G0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71490-50140B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71490-50110B0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71490-50120A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71490-50130A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71490-50150A0 |
UCF21 ***,ｱﾘ(ｼ-ﾄﾋ-ﾀ & ﾎﾝｶﾞﾜ ｼ-ﾄ & ﾘﾔ ﾊﾟﾜ-ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71503-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71503-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71504-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71504-50010 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71650B - SPRING ASSY, REAR SEAT CUSHION, RH | ||||
| 71650-50060 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71507-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71507-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71508-50010 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ) |
1 | ||
| 71508-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71660B - SPRING ASSY, REAR SEAT CUSHION, LH | ||||
| 71660-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71670S - SPRING ASSY, REAR SEAT BACK, RH(FOR SEPARATE SEAT) | ||||
| 71670-50070 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71680S - SPRING ASSY, REAR SEAT BACK, LH(FOR SEPARATE SEAT) | ||||
| 71680-50040 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020A0 |
UCF2#..B,C ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-32020G0 |
UCF2# ﾛｯｸ無,AGATE,TRIM6# |
2 | ||
| 71930-32020A0 |
UCF2#..B,C ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-32020B2 |
UCF2# ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-32020G0 |
UCF2# ﾛｯｸ付,AGATE,TRIM6# |
2 | ||
| 71931-32020B2 |
UCF2# ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71940B - HEADREST ASSY, REAR SEAT, RH | ||||
| 71940-50170A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71940-50170B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50160A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50170G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50200G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50150B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50200A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50210G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71940-50160G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50210A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71940-50161A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50190B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50210B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50151B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71940-50201G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50211A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71940-50211B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50211G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71940-50191B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50201A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50161G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950D - HEADREST ASSY, REAR SEAT, LH | ||||
| 71940-50150B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50151B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50170A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71950-50060A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71950-50060B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71940-50161A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50040B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71940-50161G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50160A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50050A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71950-50060G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71950-50051G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71940-50171G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 71940-50160G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950-50050G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 71950-50061B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 71950-50051A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 71940-50171B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 71940-50171A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 71950-50041B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 71950-50061A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 71950-50061G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 71970B - SUPPORT ASSY, REAR SEAT HEADREST, RH | ||||
| 71970-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 71990A - SUPPORT ASSY, REAR SEAT HEADREST, LH | ||||
| 71990-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72045 - COVER SUB-ASSY, RR SEAT TRACK, OUTER RH | ||||
| 72045-50010B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72045-50010G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72045-50010A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72046 - COVER SUB-ASSY, REAR SEAT TRACK, OUTER LH | ||||
| 72046-50010A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72046-50010B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72046-50010G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72047 - COVER SUB-ASSY, RR SEAT TRACK, INNER RH | ||||
| 72047-50020G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72047-50020A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72047-50020B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72048 - COVER SUB-ASSY, RR SEAT TRACK, INNER LH | ||||
| 72048-50020A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72048-50020B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72048-50020G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-50020 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72180 - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72180-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72190-50030 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50060 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72380A - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 | ||||
| 72380-50060 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
2 | ||
| 72803D - PANEL SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72803-50100 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 72803-50100 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72803-50101 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 72803-50101 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾚｻﾞ- ｼ-ﾄ) |
2 | ||
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-50030A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72805-50030G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72805-50060A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72805-50030B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72805-50060G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72805-50010A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72805-50060B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72805-50040B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50050A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72805-50061A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72805-50010G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72805-50031A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72805-50061B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72805-50061G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72805-50031B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72805-50040B0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50031G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72805-50070B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72805-50010G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72805-50050G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-50240B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50280G0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50360B0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50300A0 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72830-50340A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50300B0 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72830-50300G0 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72830-50280A0 |
UCF2#..B,C ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50340G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50341A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),IVORY,TRIM0# |
1 | ||
| 72830-50280G0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50301B1 |
UCF2#..B,C BLUE GRAY,TRIM1# |
1 | ||
| 72830-50350B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72830-50341G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72830-50351B1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72830-50351A1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72830-50360B0 |
UCF2# ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50301A1 |
UCF2#..B,C IVORY,TRIM0# |
1 | ||
| 72830-50350A0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,IVORY,TRIM0# |
1 | ||
| 72830-50350G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72830-50241B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72830-50301G1 |
UCF2#..B,C AGATE,TRIM6# |
1 | ||
| 72830-50351G1 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-50050G0 |
UCF21 AGATE,TRIM6# |
1 | ||
| 72868-50050A0 |
UCF21 IVORY,TRIM0# |
1 | ||
| 72868-50050B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,BLUE GRAY,TRIM1# |
1 | ||
| 72868-50070B0 |
UCF2# BLUE GRAY,TRIM1# |
1 | ||
| 72868-50050B0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),BLUE GRAY,TRIM1# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-50040G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾎﾝｶﾞﾜ ｼ-ﾄ),AGATE,TRIM6# |
1 | ||
| 72869-50040B0 |
UCF21 BLUE GRAY,TRIM1# |
1 | ||
| 72869-50040G0 |
UCF21 F ﾊﾟﾂｹ-ｼﾞ,AGATE,TRIM6# |
1 | ||
| 72869-50050G0 |
UCF2# AGATE,TRIM6# |
1 | ||
| 72869-50040A0 |
UCF21 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 82711-22270 | ||||
| 90119-08881 | ||||
| 90119-08A94 | ||||
| 90159-40197 | ||||
| 90159-80012 | ||||
| 90161-40023 | ||||
| 90168-40036 | ||||
| 90176-04015 | ||||
| 90179-05095 | ||||
| 90179-06129 | ||||
| 90201-08090 | ||||
| 90202-14008 | ||||
| 90205-07002 | ||||
| 90386-06035 | ||||
| 90560-10200 | ||||
| 91641-80822 | ||||
| 91645-80616 | ||||
| 93260-16025 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
| 8513 | ||||
(9410- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
