UCF20-AEPNK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

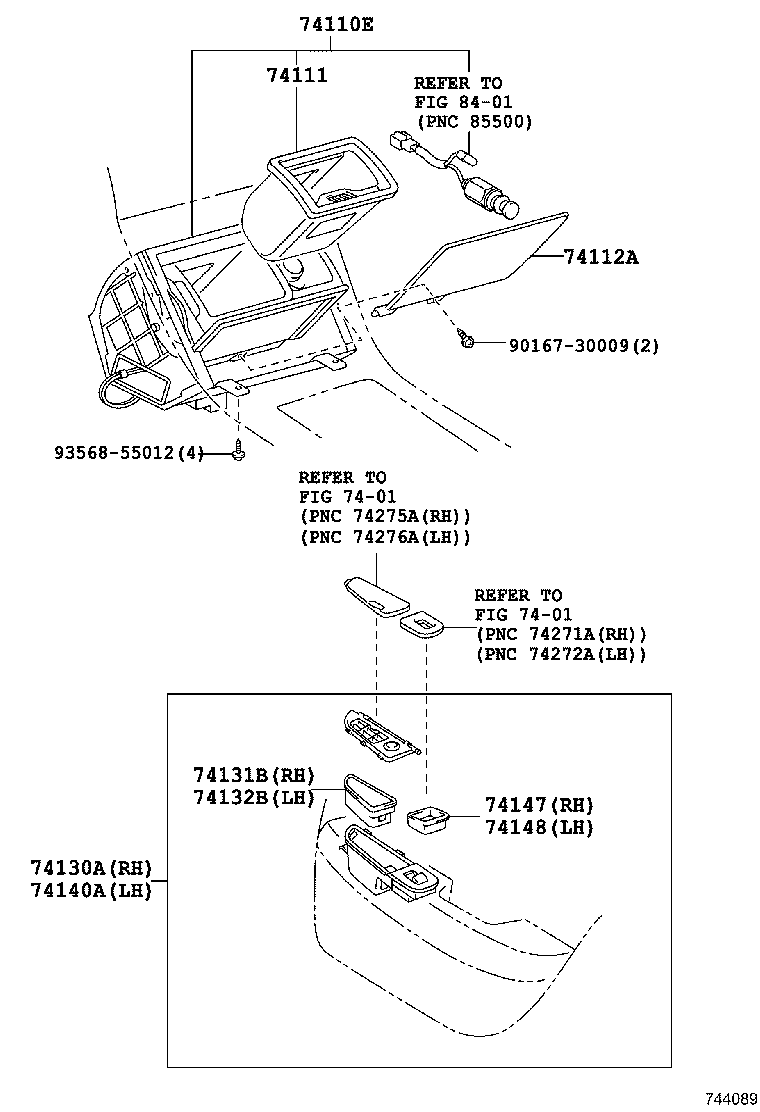

Click highlighted areas on diagram

diagram 7401 7401 74110E 74111 74112A 74130A 74131B 74132B 74140A 74147 74148 8401 9016730009 9356855012
Part # Description Qty Price
74110E - RECEPTACLE ASSY, FRONT ASH
74102-50030

UCF2#

 1
74111 - BOX, FRONT ASH RECEPTACLE
74111-50020

UCF2#

 1
74112A - DOOR, FRONT ASH RECEPTACLE
74112-50030

UCF2#

 1
74130A - RECEPTACLE ASSY, REAR ASH, RH
74130-50020

UCF2#

 1
74131B - BOX, REAR ASH RECEPTACLE, RH
74131-50020

UCF2#

 1
74132B - BOX, REAR ASH RECEPTACLE, LH
74132-50020

UCF2#

 1
74140A - RECEPTACLE ASSY, REAR ASH, LH
74140-50020

UCF2#

 1
74147 - GARNISH, REAR ASH RECEPTACLE
74147-50010

UCF2#

 1
74148 - GARNISH, REAR ASH RECEPTACLE, NO.2
74148-50010

UCF2#

 1
Common parts
90167-30009
93568-55012
Linked diagrams
7401
8401
