UCF20-AEPNK (1994)
Toyota Celsior
ILLUST NO. 1 OF 2(9410-9707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50100 |
1UZFE..UCF2# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50071 |
1UZFE..UCF2# |
1 | ||
| 16261-50070 |
1UZFE..UCF2# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13059 |
1UZFE..UCF2# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13059 |
1UZFE..UCF2# |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
1UZFE..UCF2# |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-50011 |
1UZFE..UCF2# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 90445-16039 |
1UZFE..UCF2# 長さ=85 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-16037 |
1UZFE..UCF2# |
2 | ||
| 90467-15022 |
1UZFE..UCF2# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-16037 |
1UZFE..UCF2# |
2 | ||
| 90467-15022 |
1UZFE..UCF2# |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 16283-50011 |
1UZFE..UCF2# |
1 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-11056 |
1UZFE..UCF2# |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-11056 |
1UZFE..UCF2# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-50010 |
1UZFE..UCF2# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-50051 |
1UZFE..UCF2# |
1 | ||
| 16323A - GASKET(FOR WATER INLET HOUSING) | ||||
| 90430-20004 |
1UZFE..UCF2# |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20011 |
1UZFE..UCF2# |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
1UZFE..UCF2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1UZFE..UCF2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1UZFE..UCF2# *WAX 82−95 |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50030 |
1UZFE..UCF2# |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50010 |
1UZFE..UCF2# |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50010 |
1UZFE..UCF2# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50070 |
1UZFE..UCF2# |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50010 |
1UZFE..UCF2# |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50010 |
1UZFE..UCF2# |
2 | ||
| 16361 - FAN | ||||
| 16911-50030 |
1UZFE..UCF2# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50130 |
1UZFE..UCF2# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-50070 |
1UZFE..UCF2# 右側 |
1 | ||
| 16506-50040 |
1UZFE..UCF2# 左側 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1UZFE..UCF2# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-50080 |
1UZFE..UCF2# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41007 |
1UZFE..UCF2# NO.1 & NO.2 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41007 |
1UZFE..UCF2# NO.1 & NO.2 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-50090 |
1UZFE..UCF2# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-41007 |
1UZFE..UCF2# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-41007 |
1UZFE..UCF2# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-50070 |
1UZFE..UCF2# |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-46020 |
1UZFE..UCF2# ﾏｰｸ 2 |
1 | ||
| 16906-46030 |
1UZFE..UCF2# ﾏｰｸ 3 |
1 | ||
| 16906-46010 |
1UZFE..UCF2# ﾏｰｸ 1 |
1 | ||
| 16906-46040 |
1UZFE..UCF2# ﾏｰｸ 4 |
1 | ||
| 16906-46050 |
1UZFE..UCF2# ﾏｰｸ 5 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-50060 |
1UZFE..UCF2# |
1 | ||
| 16923 - HOSE, HYDRAULIC MOTOR SUCTION, NO.1 | ||||
| 16923-50070 |
1UZFE..UCF2# |
1 | ||
| 16923A - CLIP(FOR SUCTION HOSE NO.1) | ||||
| 90467-21005 |
1UZFE..UCF2# |
2 | ||
| 16923A - CLIP(FOR SUCTION HOSE NO.1) | ||||
| 90467-21005 |
1UZFE..UCF2# |
2 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-50060 |
1UZFE..UCF2# |
1 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
1UZFE..UCF2# |
2 | ||
| 16927A - BOLT, UNION(FOR PRESSURE HOSE) | ||||
| 90401-16015 |
1UZFE..UCF2# |
2 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-30030 |
1UZFE..UCF2# |
2 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-30030 |
1UZFE..UCF2# |
2 | ||
| 16930 - COOLER ASSY, HYDRAULIC MOTOR OIL | ||||
| 16930-50070 |
1UZFE..UCF2# |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-50060 |
1UZFE..UCF2# |
1 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16008 |
1UZFE..UCF2# |
2 | ||
| 16941A - CLIP(FOR RETURN NO.1) | ||||
| 90467-16008 |
1UZFE..UCF2# |
2 | ||
| 16942 - HOSE, HYDRAULIC MOTOR RETURN, NO.2 | ||||
| 16942-50070 |
1UZFE..UCF2# |
1 | ||
| 16942A - CLIP(FOR RETURN HOSE NO.2) | ||||
| 90467-16008 |
1UZFE..UCF2# |
2 | ||
| 16942A - CLIP(FOR RETURN HOSE NO.2) | ||||
| 90467-16008 |
1UZFE..UCF2# |
2 | ||
| 16950 - TANK ASSY, HYDRAULIC MOTOR RESERVE | ||||
| 16950-50060 |
1UZFE..UCF2# |
1 | ||
| 16953 - CAP, HYDRAULIC MOTOR RESERVE TANK | ||||
| 16953-50020 |
1UZFE..UCF2# |
1 | ||
| 16954 - STRAINER, HYDRAULIC MOTOR RESERVE TANK | ||||
| 16954-50010 |
1UZFE..UCF2# |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-50030 |
1UZFE..UCF2# |
1 | ||
| 16960A - SEAL, OIL(FOR HYDRAULIC GEAR MOTOR) | ||||
| 90029-21019 |
1UZFE..UCF2# |
1 | ||
| 16960B - RING, SNAP(FOR HYDRAULIC GEAR MOTOR) | ||||
| 90029-20040 |
1UZFE..UCF2# |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50030 |
1UZFE..UCF2# |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-46030 |
1UZFE..UCF2# |
1 | ||
| 16962A - RING, O(FOR HYDRAULIC GEAR MOTOR COVER) | ||||
| 90029-10004 |
1UZFE..UCF2# |
2 | ||
| 16962A - RING, O(FOR HYDRAULIC GEAR MOTOR COVER) | ||||
| 90029-10004 |
1UZFE..UCF2# |
2 | ||
| Common parts | ||||
| 90029-02303 | ||||
| 90029-07009 | ||||
| 90029-46002 | ||||
| 90119-06560 | ||||
| 90179-06263 | ||||
| 90179-08153 | ||||
| 90179-08199 | ||||
| 90179-08240 | ||||
| 91511-80825 | ||||
| 91511-J0822 | ||||
| 91621-60814 | ||||
| 91621-J0814 | ||||
| 91651-60614 | ||||
| 92122-B0822 | ||||
| 92122-B0828 | ||||
| 96151-02500 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1601 | ||||
| 2211 | ||||
| 8716 | ||||

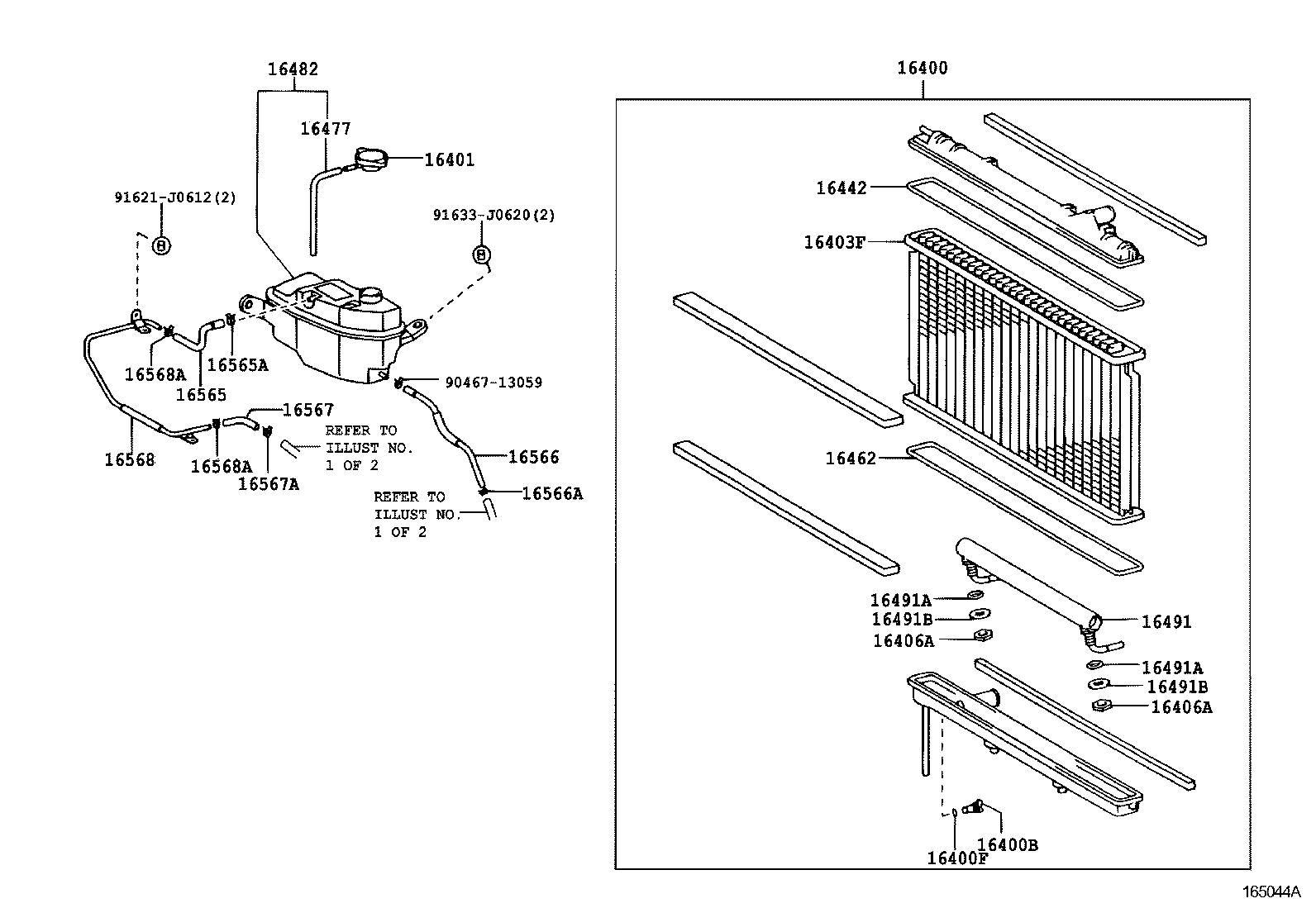

ILLUST NO. 2 OF 2(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-50130 |
1UZFE..UCF2# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1UZFE..UCF2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1UZFE..UCF2# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-50051 |
1UZFE..UCF2# |
1 | ||
| 16401-50050 |
1UZFE..UCF2# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-50130 |
1UZFE..UCF2# |
1 | ||
| 16403-50131 |
1UZFE..UCF2# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1UZFE..UCF2# |
2 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1UZFE..UCF2# |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-74760 |
1UZFE..UCF2# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-46040 |
1UZFE..UCF2# |
1 | ||
| 16477 - PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16477-50070 |
1UZFE..UCF2# |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-50080 |
1UZFE..UCF2# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-50130 |
1UZFE..UCF2# |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
1UZFE..UCF2# |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
1UZFE..UCF2# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1UZFE..UCF2# |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1UZFE..UCF2# |
2 | ||
| 16565 - HOSE, RESERVE TANK INLET | ||||
| 16565-50050 |
1UZFE..UCF2# |
1 | ||
| 16565A - CLIP | ||||
| 90467-17013 |
1UZFE..UCF2# |
1 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-50040 |
1UZFE..UCF2# |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 90467-11056 |
1UZFE..UCF2# |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-50040 |
1UZFE..UCF2# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-16037 |
1UZFE..UCF2# |
1 | ||
| 90467-16022 |
1UZFE..UCF2# |
1 | ||
| 16568 - PIPE, RADIATOR TO RESERVE TANK | ||||
| 16568-50040 |
1UZFE..UCF2# |
1 | ||
| 16568A - CLIP(FOR RADIATOR RESERVE TANK PIPE) | ||||
| 90467-16037 |
1UZFE..UCF2# |
2 | ||
| 90467-16022 |
1UZFE..UCF2# |
2 | ||
| 16568A - CLIP(FOR RADIATOR RESERVE TANK PIPE) | ||||
| 90467-16037 |
1UZFE..UCF2# |
2 | ||
| 90467-16022 |
1UZFE..UCF2# |
2 | ||
| Common parts | ||||
| 90467-13059 | ||||
| 91621-J0612 | ||||
| 91633-J0620 | ||||
