UCF20-AEPNK (1994)
Toyota Celsior
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410-9707)

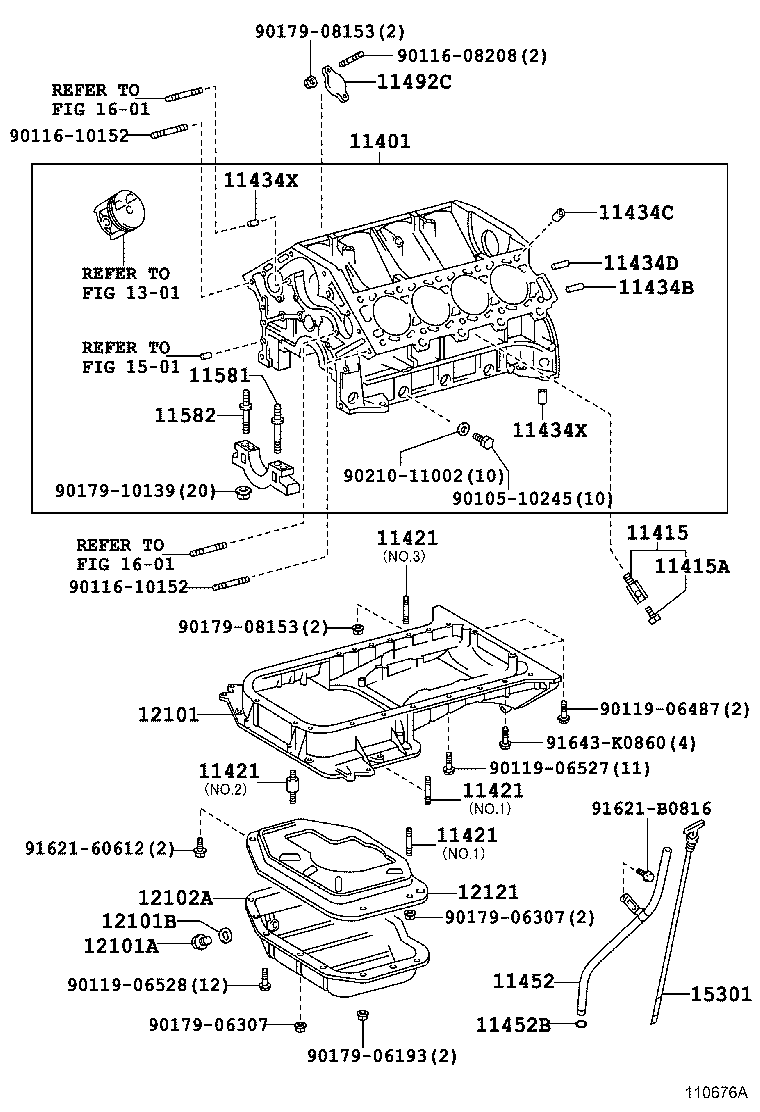

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59565 |
1UZFE..UCF2# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09095 |
1UZFE..UCF2# |
2 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1UZFE..UCF2# |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08299 |
1UZFE..UCF2# NO.3 |
2 | ||
| 90116-06110 |
1UZFE..UCF2# NO.2 |
1 | ||
| 90116-06098 |
1UZFE..UCF2# NO.1 |
2 | ||
| 90126-08031 |
1UZFE..UCF2# NO.3 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08299 |
1UZFE..UCF2# NO.3 |
2 | ||
| 90116-06110 |
1UZFE..UCF2# NO.2 |
1 | ||
| 90116-06098 |
1UZFE..UCF2# NO.1 |
2 | ||
| 90126-08031 |
1UZFE..UCF2# NO.3 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08299 |
1UZFE..UCF2# NO.3 |
2 | ||
| 90116-06110 |
1UZFE..UCF2# NO.2 |
1 | ||
| 90116-06098 |
1UZFE..UCF2# NO.1 |
2 | ||
| 90126-08031 |
1UZFE..UCF2# NO.3 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-08299 |
1UZFE..UCF2# NO.3 |
2 | ||
| 90116-06110 |
1UZFE..UCF2# NO.2 |
1 | ||
| 90116-06098 |
1UZFE..UCF2# NO.1 |
2 | ||
| 90126-08031 |
1UZFE..UCF2# NO.3 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1UZFE..UCF2# 長さ=22,外径=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-16001 |
1UZFE..UCF2# 長さ=20,外径=16 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 |
1UZFE..UCF2# 長さ=14,外径=6 |
2 | ||
| 11434X - PIN, RING(FOR CHAIN CACE) | ||||
| 90253-11021 |
1UZFE..UCF2# |
2 | ||
| 11434X - PIN, RING(FOR CHAIN CACE) | ||||
| 90253-11021 |
1UZFE..UCF2# |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-50061 |
1UZFE..UCF2# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96711-19010 |
1UZFE..UCF2# |
1 | ||
| 11492C - PLATE, WATER SEAL | ||||
| 11492-50010 |
1UZFE..UCF2# |
1 | ||
| 11581 - BOLT, CRANKSHAFT BEARING CAP, NO.1 | ||||
| 11581-50011 |
1UZFE..UCF2# |
10 | ||
| 11582 - BOLT, CRANKSHAFT BEARING CAP, NO.2 | ||||
| 11582-50011 |
1UZFE..UCF2# |
10 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12111-50020 |
1UZFE..UCF2# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12023 |
1UZFE..UCF2# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1UZFE..UCF2# |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-50010 |
1UZFE..UCF2# |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-50070 |
1UZFE..UCF2# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-50050 |
1UZFE..UCF2# |
1 | ||
| Common parts | ||||
| 90105-10245 | ||||
| 90116-08208 | ||||
| 90116-10152 | ||||
| 90119-06487 | ||||
| 90119-06527 | ||||
| 90119-06528 | ||||
| 90179-06193 | ||||
| 90179-06307 | ||||
| 90179-08153 | ||||
| 90179-10139 | ||||
| 90210-11002 | ||||
| 91621-60612 | ||||
| 91621-B0816 | ||||
| 91643-K0860 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
| 1601 | ||||
