UCF20-AEPGK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

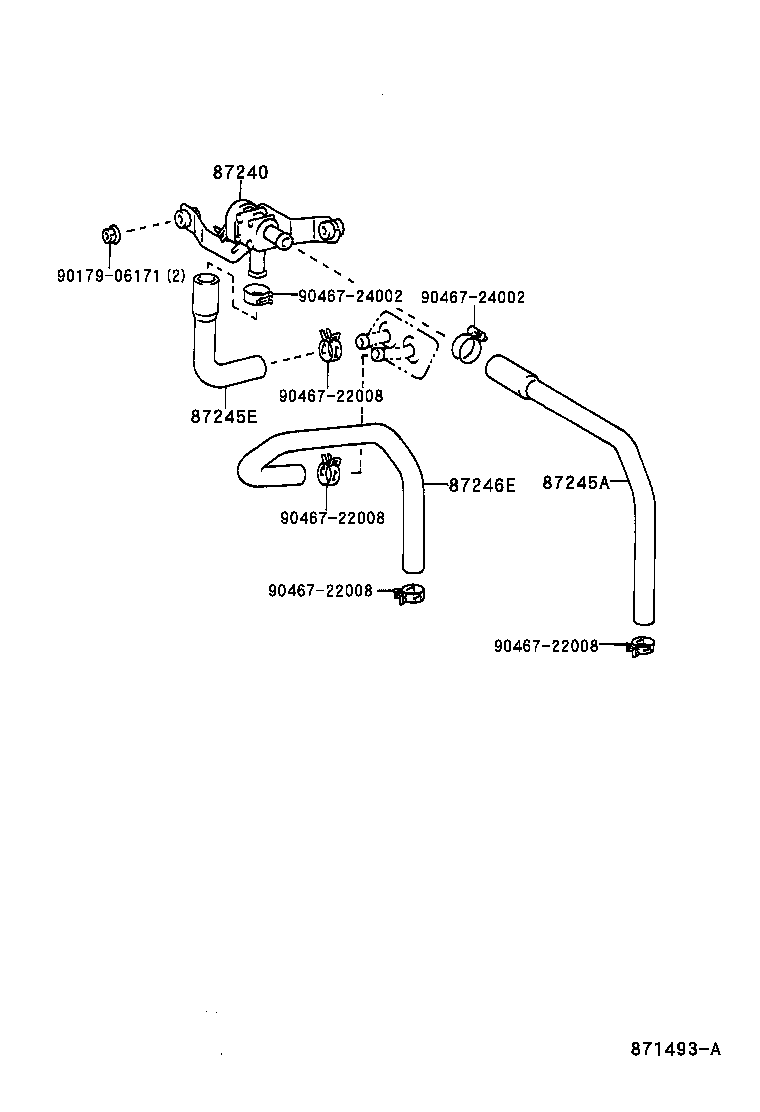

ILLUST NO. 1 OF 2(9410- )

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246E 9017906171 9046722008 9046722008 9046722008 9046722008 9046724002 9046724002
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-50070

UCF2#

 1
87240-50080

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-50150

UCF2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-50220

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245-50210

UCF2#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-50160

UCF2#

 1
87245-50250

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245-50330

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
Common parts
90179-06171
90467-22008
90467-24002

ILLUST NO. 2 OF 2(9410- )

Click highlighted areas on diagram

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 5503 8712850010 87240 87245A 87245E 87245X 87245Y 87246A 87246E 87248A 9017906171 9046713050 9046713050 9046713050 9046713050 9046722008 9046722008 9046722008 9046722008 9046722011 9046724002 9046724002
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-50070

UCF2#

 1
87240-50080

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-50150

UCF2#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-50220

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245-50210

UCF2#

 1
87245X - HOSE, HEATER WATER
87242-50010

UCF2#

 1
87245Y - HOSE, HEATER WATER
87243-50010

UCF2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-50260

UCF2#

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-50160

UCF2#

 1
87245-50250

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87245-50330

UCF2#

ｱﾘ(ｵﾝｽｲ ﾊﾟﾈﾙ ﾋ-ﾀ)

 1
87248A - PIPE, HEATER WATER INLET, A
87248-30260

UCF2#

 1
Common parts
87128-50010
90179-06171
90467-13050
90467-22008
90467-22011
90467-24002
Linked diagrams
5503
