UCF20-AEPGK (1994)
Toyota Celsior
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

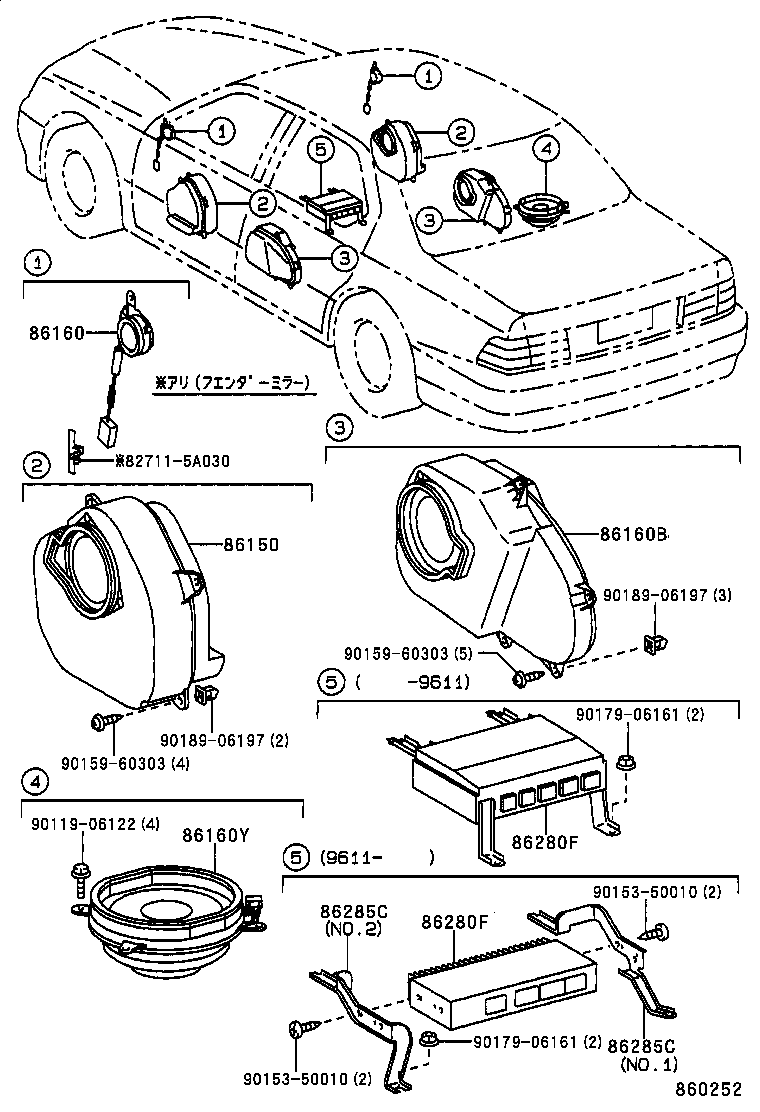

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-50170 |
UCF2# 右側 |
1 | ||
| 86150-50180 |
UCF2# 左側 |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-50120 |
UCF2# 右側 |
1 | ||
| 86160-50130 |
UCF2# 左側 |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86150-50220 |
UCF2# 左側 |
1 | ||
| 86150-50221 |
UCF2# 左側 |
1 | ||
| 86150-50210 |
UCF2# 右側 |
1 | ||
| 86150-50211 |
UCF2# 右側 |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-50100 |
UCF2# |
1 | ||
| 86280F - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-50182 |
UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280-50171 |
UCF2#..4FC;UCF20..A..5FC |
1 | ||
| 86280-50181 |
UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280-50170 |
UCF2# |
1 | ||
| 86280-50180 |
UCF2#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280F - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-50182 |
UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280-50171 |
UCF2#..4FC;UCF20..A..5FC |
1 | ||
| 86280-50181 |
UCF2# ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86280-50170 |
UCF2# |
1 | ||
| 86280-50180 |
UCF2#..B,C ｱﾘ(ｴﾚｸﾄﾛ ﾏﾙﾁﾋﾞｼﾞﾖﾝ) |
1 | ||
| 86285C - BRACKET, AMPLIFIER, NO.1 | ||||
| 86286-50010 |
UCF2# NO.2 |
1 | ||
| 86285-50010 |
UCF2#..4FC;UCF20..A..5FC NO.1 |
1 | ||
| 86285C - BRACKET, AMPLIFIER, NO.1 | ||||
| 86286-50010 |
UCF2# NO.2 |
1 | ||
| 86285-50010 |
UCF2#..4FC;UCF20..A..5FC NO.1 |
1 | ||
| Common parts | ||||
| 82711-5A030 | ||||
| 90119-06122 | ||||
| 90153-50010 | ||||
| 90159-60303 | ||||
| 90179-06161 | ||||
| 90189-06197 | ||||
