UCF20-AEPGK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

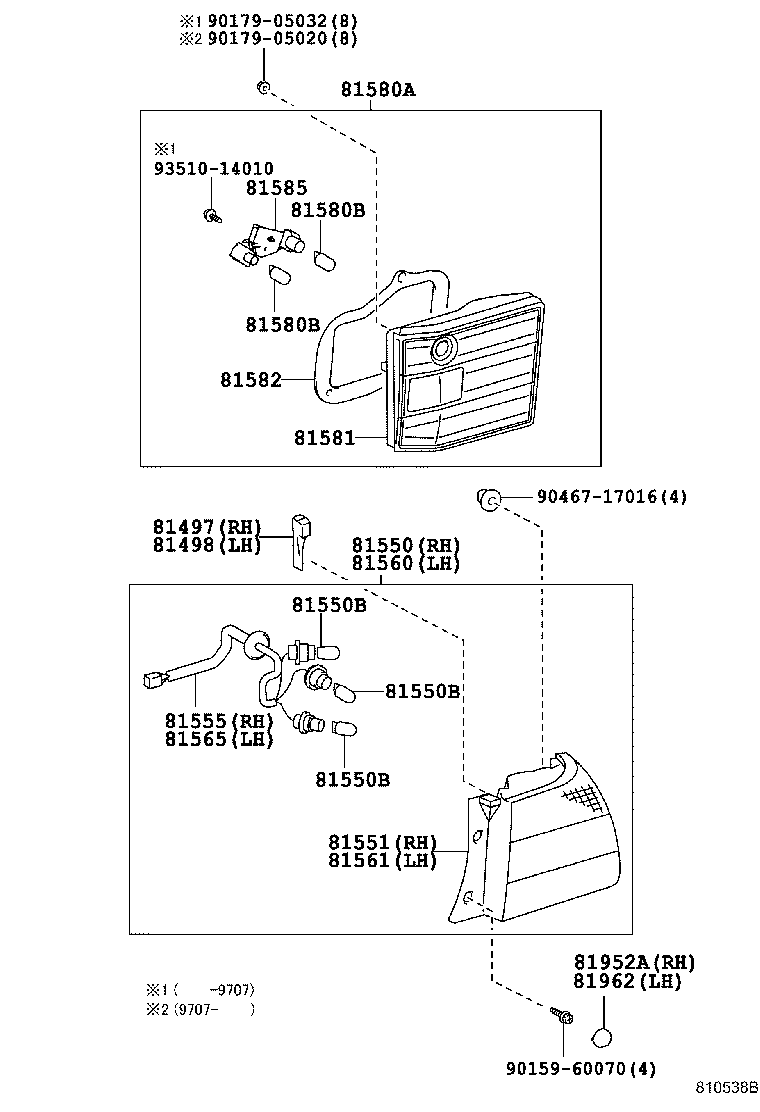

Click highlighted areas on diagram

diagram 81497 81498 81550 81550B 81550B 81550B 81551 81555 81560 81561 81565 81580A 81580B 81580B 81581 81582 81585 81952A 81962 9015960070 9017905020 9017905032 9046717016 9351014010
Part # Description Qty Price
81497 - COVER, REAR COMBINATION LAMP, RH
81497-50020

UCF2#

 1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-50020

UCF2#

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-50050

UCF2#

 1
81550-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

UCF2#

12V 21W,ｶﾝﾚｲﾁ ｼﾖｳ

 2
99132-21210

UCF2#

12V 21/5W,ｶﾝﾚｲﾁ ｼﾖｳ

 4
90981-13050

UCF2#

12V 21W

 2
90981-13051

UCF2#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

UCF2#

12V 21W,ｶﾝﾚｲﾁ ｼﾖｳ

 2
99132-21210

UCF2#

12V 21/5W,ｶﾝﾚｲﾁ ｼﾖｳ

 4
90981-13050

UCF2#

12V 21W

 2
90981-13051

UCF2#

12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

UCF2#

12V 21W,ｶﾝﾚｲﾁ ｼﾖｳ

 2
99132-21210

UCF2#

12V 21/5W,ｶﾝﾚｲﾁ ｼﾖｳ

 4
90981-13050

UCF2#

12V 21W

 2
90981-13051

UCF2#

12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81551-50050

UCF2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81555-50050

UCF2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-50050

UCF2#

 1
81560-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-50050

UCF2#

 1
81561-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-50060

UCF2#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
81555-50050

UCF2#

 1
81580A - LAMP ASSY, REAR
81580-50040

UCF2#

右側

 1
81590-50070

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81590-50040

UCF2#

左側

 1
81580-50070

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81580B - BULB (FOR REAR LAMP)
99132-11210

UCF2#

12V 21W,ｶﾝﾚｲﾁ ｼﾖｳ

 4
90981-13050

UCF2#

12V 21W

 2
90981-13051

UCF2#

12V 21/5W

 2
81580B - BULB (FOR REAR LAMP)
99132-11210

UCF2#

12V 21W,ｶﾝﾚｲﾁ ｼﾖｳ

 4
90981-13050

UCF2#

12V 21W

 2
90981-13051

UCF2#

12V 21/5W

 2
81581 - LENS, REAR LAMP
81581-50070

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81591-50040

UCF2#

左側

 1
81581-50040

UCF2#

右側

 1
81591-50070

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81582 - GASKET, REAR LAMP
81582-50040

UCF2#

 2
81585 - SOCKET & WIRE, REAR LAMP
81585-50060

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),右側

 1
81595-50040

UCF2#

左側

 1
81595-50060

UCF2#

ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ),左側

 1
81585-50040

UCF2#

右側

 1
81952A - COVER, REAR LAMP, RH
81952-50010

UCF2#

 2
81962 - COVER, REAR LAMP, LH
81952-50010

UCF2#

 2
Common parts
90159-60070
90179-05020
90179-05032
90467-17016
93510-14010
