UCF20-AEPGK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

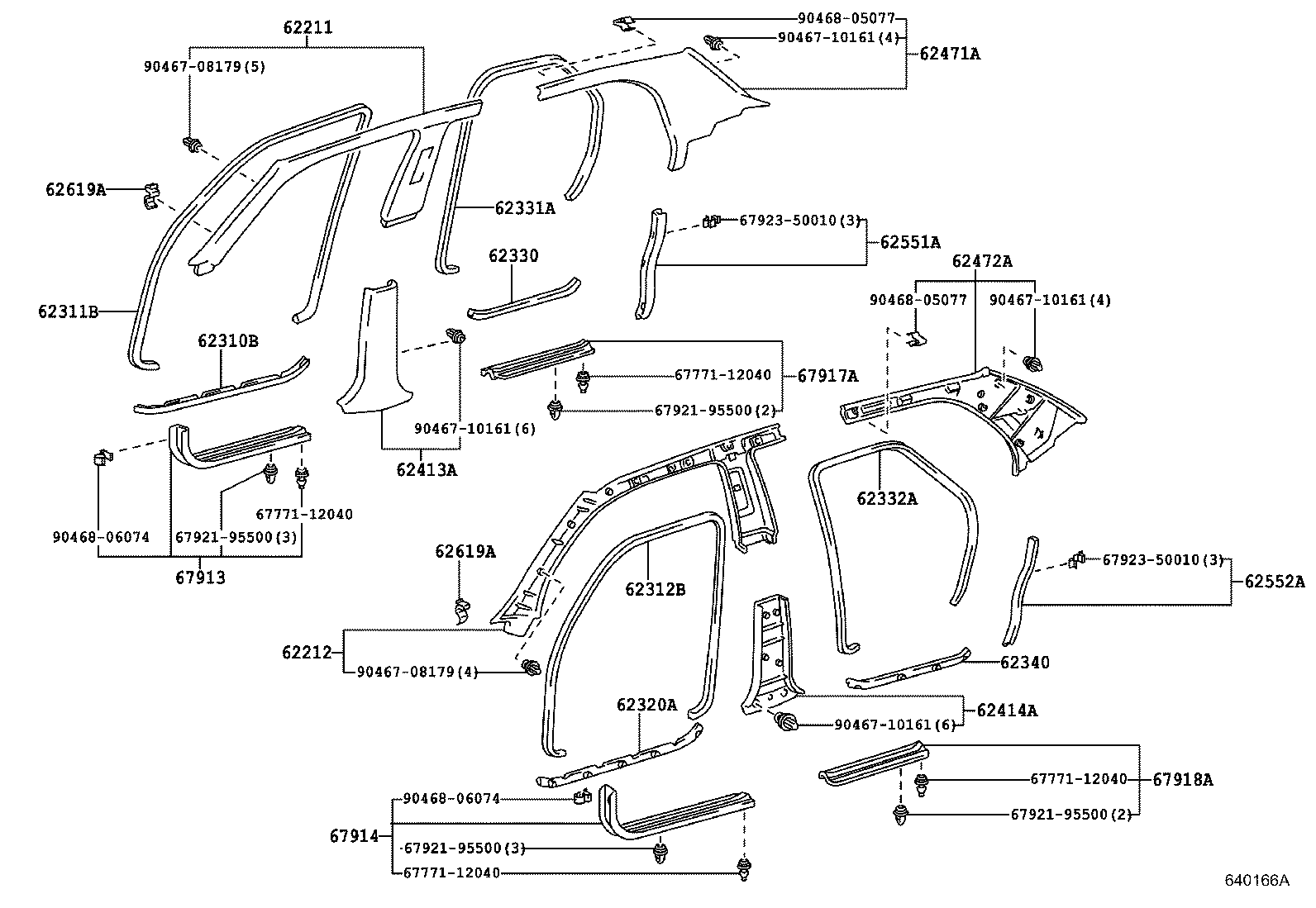

Click highlighted areas on diagram

diagram 62211 62212 62310B 62311B 62312B 62320A 62330 62331A 62332A 62340 62413A 62414A 62471A 62472A 62551A 62552A 62619A 62619A 6777112040 6777112040 6777112040 6777112040 67913 67914 67917A 67918A 6792195500 6792195500 6792195500 6792195500 6792350010 6792350010 9046708179 9046708179 9046710161 9046710161 9046710161 9046710161 9046805077 9046805077 9046806074 9046806074
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-50050G0

UCF2#

AGATE,TRIM6#

 1
62210-50050A0

UCF2#..B,C

IVORY,TRIM0#

 1
62210-50050B0

UCF20

BLUE GRAY,TRIM1#,2#

 1
62210-50050B0

UCF2#

BLUE GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62220-50050B0

UCF20

BLUE GRAY,TRIM1#,2#

 1
62220-50050A0

UCF2#..B,C

IVORY,TRIM0#

 1
62220-50050G0

UCF2#

AGATE,TRIM6#

 1
62220-50050B0

UCF2#

BLUE GRAY,TRIM1#

 1
62310B - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
62310-50020

UCF2#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
62311-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
62311-50020G0

UCF2#

AGATE,TRIM6#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
62312-50020G0

UCF2#

AGATE,TRIM6#

 1
62312-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
62320A - WEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
62320-50020

UCF2#

 1
62330 - WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, RH
62330-50020

UCF2#

 1
62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
62331-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
62331-50020G0

UCF2#

AGATE,TRIM6#

 1
62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
62332-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
62332-50020G0

UCF2#

AGATE,TRIM6#

 1
62340 - WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, LH
62340-50020

UCF2#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-50040B0

UCF2#

BLUE GRAY,TRIM1#

 1
62413-50040A0

UCF2#..B,C

IVORY,TRIM0#

 1
62413-50040G0

UCF2#

AGATE,TRIM6#

 1
62413-50041A0

UCF2#..B,C

IVORY,TRIM0#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-50040A0

UCF2#..B,C

IVORY,TRIM0#

 1
62414-50040B0

UCF2#

BLUE GRAY,TRIM1#

 1
62414-50040G0

UCF2#

AGATE,TRIM6#

 1
62414-50041A0

UCF2#..B,C

IVORY,TRIM0#

 1
62471A - GARNISH, ROOF SIDE, INNER RH
62470-50030G0

UCF2#

AGATE,TRIM6#

 1
62470-50030B0

UCF2#

BLUE GRAY,TRIM1#

 1
62470-50030B0

UCF20

BLUE GRAY,TRIM1#,2#

 1
62470-50030A0

UCF2#..B,C

IVORY,TRIM0#

 1
62472A - GARNISH, ROOF SIDE, INNER LH
62480-50030A0

UCF2#..B,C

IVORY,TRIM0#

 1
62480-50030B0

UCF20

BLUE GRAY,TRIM1#,2#

 1
62480-50030B0

UCF2#

BLUE GRAY,TRIM1#

 1
62480-50030G0

UCF2#

AGATE,TRIM6#

 1
62551A - COVER, REAR SEAT SIDE, RH
62551-50040A0

UCF2#..B,C

IVORY,TRIM0#

 1
62551-50040B0

UCF2#

BLUE GRAY,TRIM1#

 1
62551-50040G0

UCF2#

AGATE,TRIM6#

 1
62552A - COVER, REAR SEAT SIDE, LH
62552-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
62552-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
62552-50020G0

UCF2#

AGATE,TRIM6#

 1
62619A - PLATE, SIDE TRIM SET
62619-50010

UCF2#

 4
62619A - PLATE, SIDE TRIM SET
62619-50010

UCF2#

 4
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
67913-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
67913-50020C0

UCF20

BLACK,TRIM2#

 1
67913-50020G0

UCF2#

AGATE,TRIM6#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
67914-50020G0

UCF2#

AGATE,TRIM6#

 1
67914-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
67914-50020C0

UCF20

BLACK,TRIM2#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-50020G0

UCF2#

AGATE,TRIM6#

 1
67917-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
67917-50020C0

UCF20

BLACK,TRIM2#

 1
67917-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-50020G0

UCF2#

AGATE,TRIM6#

 1
67918-50020A0

UCF2#..B,C

IVORY,TRIM0#

 1
67918-50020C0

UCF20

BLACK,TRIM2#

 1
67918-50020B0

UCF2#

BLUE GRAY,TRIM1#

 1
Common parts
67771-12040
67921-95500
67923-50010
90467-08179
90467-10161
90468-05077
90468-06074
