UCF20-AEPGK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

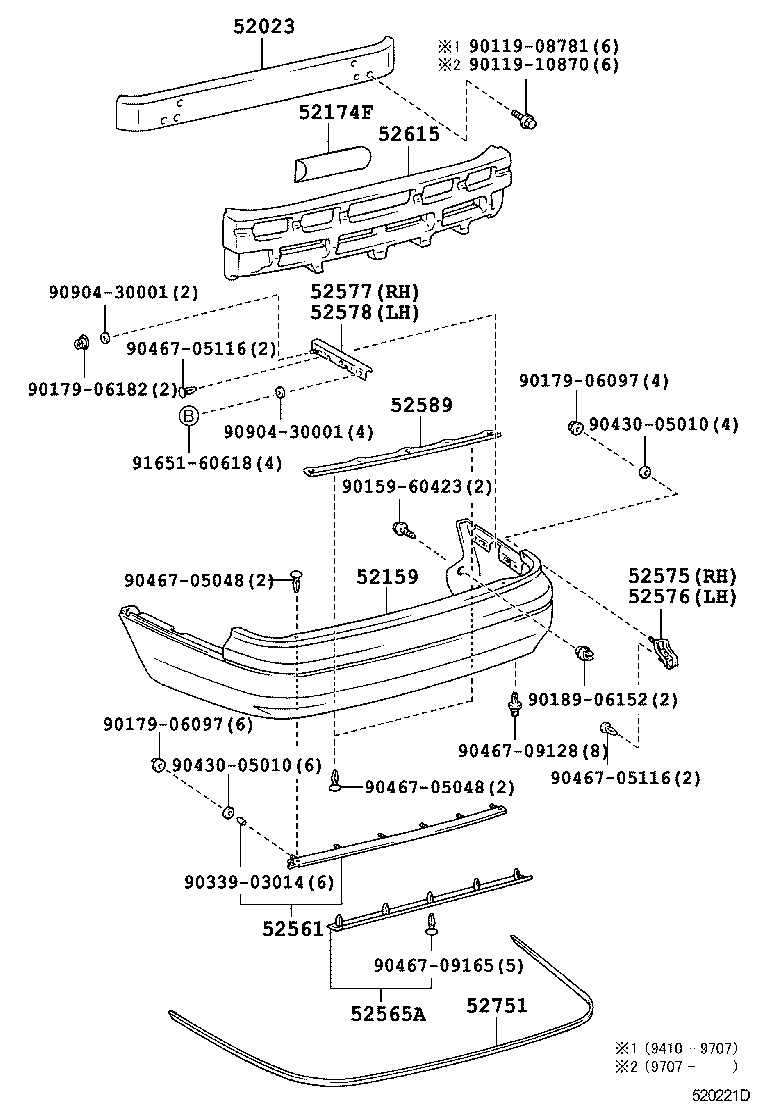

Click highlighted areas on diagram

diagram 52023 52159 52174F 52561 52565A 52575 52576 52577 52578 52589 52615 52751 9011908781 9011910870 9015960423 9017906097 9017906097 9017906182 9018906152 9033903014 9043005010 9043005010 9046705048 9046705048 9046705116 9046705116 9046709128 9046709165 9090430001 9090430001 9165160618
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52171-50030

UCF2#

 1
52159 - COVER, REAR BUMPER
52159-50030K0

UCF2#

DK.ROSE MC.,929

 1
52159-50030G0

UCF2#

GRAYISH GREEN M.M,6N0

 1
52159-50030E0

UCF2#..B,C

BEIGE ME,4M9

 1
52159-50030E1

UCF2#

GRAYISH BROWN ME,4N1

 1
52159-50030C0

UCF2#

BLACK,202

 1
52159-50030J1

UCF2#

DK.BLUE MC.,8L1

 1
52159-50030A0

UCF2#

SUPER WHITE PM,051

 1
52159-50030G1

UCF2#

DK.GREEN MC.P.I.O,6N9

 1
52159-50030B0

UCF2#

SILVER ME,199

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-50020

UCF2#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-50030

UCF2#

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-50020

UCF2#

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-50020

UCF2#

 1
52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH
52577-50020

UCF2#

 1
52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH
52578-50020

UCF2#

 1
52589 - RETAINER, REAR BUMPER END, NO.2
52589-50020

UCF2#

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-50020

UCF2#

 1
52751 - MOULDING, REAR BUMPER
52751-50020

UCF2#

 1
Common parts
90119-08781
90119-10870
90159-60423
90179-06097
90179-06182
90189-06152
90339-03014
90430-05010
90467-05048
90467-05116
90467-09128
90467-09165
90904-30001
91651-60618
