UCF20-AEPGK (1994)

Toyota Celsior

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

Click highlighted areas on diagram

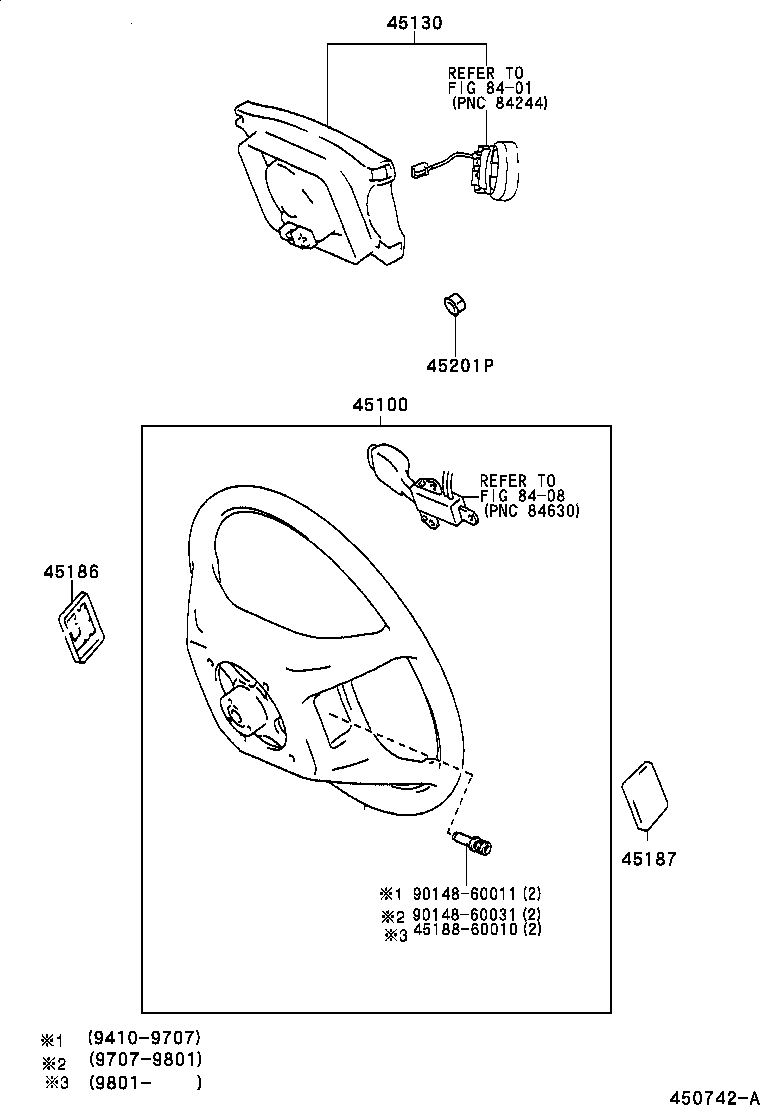

diagram 45100 45130 45186 45187 4518860010 45201P 8401 8408 9014860011 9014860031
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-50080E0

UCF2#..B,C

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,OAK,TRIM0#

 1
45100-50081C0

UCF20

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-50080B0

UCF2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. BLUE GRAY,TRIM1#

 1
45100-50081B0

UCF2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK. BLUE GRAY,TRIM1#

 1
45100-50080C0

UCF20

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#

 1
45100-50081G0

UCF2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.AGATE,TRIM6#

 1
45100-50080G0

UCF2#

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,DK.AGATE,TRIM6#

 1
45100-50081E0

UCF2#..B,C

4本ｽﾎﾟｰｸ,ﾚｻﾞｰ,OAK,TRIM0#

 1
45130 - BUTTON ASSY, HORN
45130-50110C0

UCF20

BLACK,TRIM2#

 1
45130-50110B0

UCF2#

DK.BLUE GRAY,TRIM1#

 1
45130-50110G0

UCF2#

DK.AGATE,TRIM6#

 1
45130-50110E0

UCF2#..B,C

OAK,TRIM0#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-50030G0

UCF2#

DK.AGATE,TRIM6#

 1
45186-50030C0

UCF2#

BLACK,TRIM2#

 1
45186-50030B0

UCF2#

DK.BLUE GRAY,TRIM1#

 1
45186-50030E0

UCF2#..B,C

OAK,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030G0

UCF2#

DK.AGATE,TRIM6#

 1
45187-50030E0

UCF2#..B,C

OAK,TRIM0#

 1
45187-50030B0

UCF2#

DK.BLUE GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

UCF2#

 1
Common parts
45188-60010
90148-60011
90148-60031
Linked diagrams
8401
8408
