UCF20-AEPGK (1994)
Toyota Celsior
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

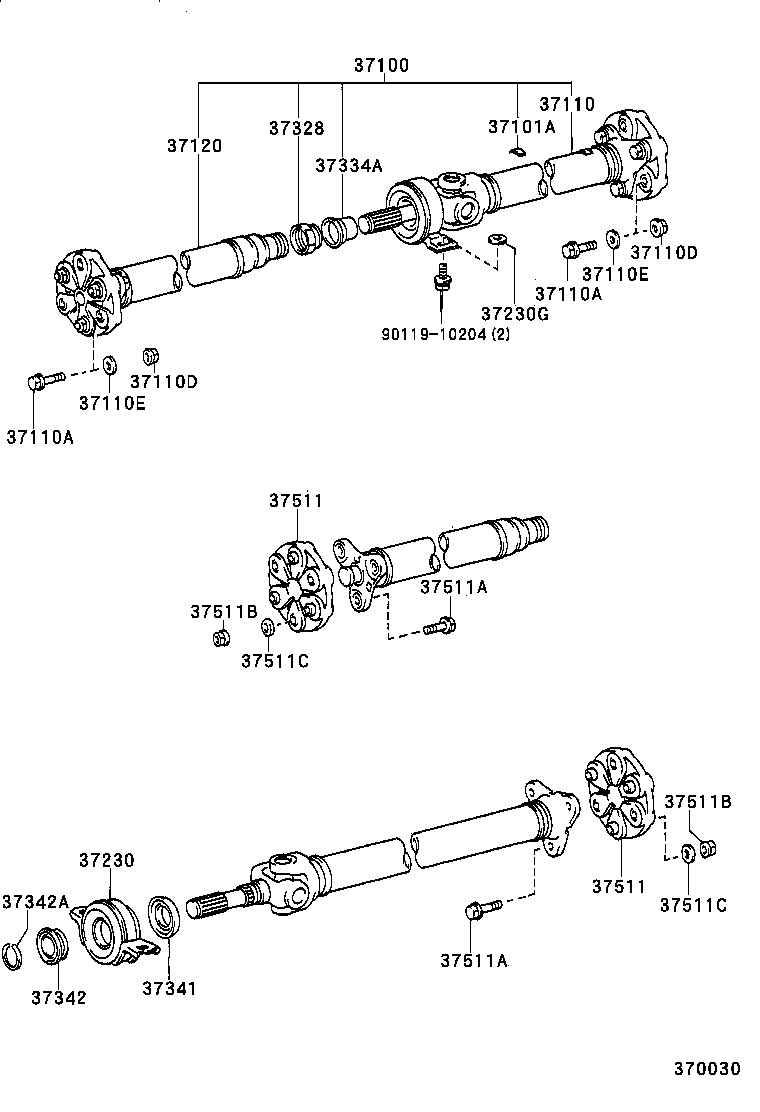

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-50030 |
UCF2# |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01342 |
UCF2# 1G |
1 | ||
| 90937-01347 |
UCF2# 6G |
1 | ||
| 90937-01353 |
UCF2# 18G |
1 | ||
| 90937-01343 |
UCF2# 2G |
1 | ||
| 90937-01344 |
UCF2# 3G |
1 | ||
| 90937-01351 |
UCF2# 14G |
1 | ||
| 90937-01345 |
UCF2# 4G |
1 | ||
| 90937-01350 |
UCF2# 12G |
1 | ||
| 90937-01444 |
UCF2# 9G |
1 | ||
| 90937-01366 |
UCF2# 7G |
1 | ||
| 90937-01349 |
UCF2# 10G |
1 | ||
| 90937-01449 |
UCF2# 19G |
1 | ||
| 90937-01448 |
UCF2# 17G |
1 | ||
| 90937-01473 |
UCF2# 1.5G |
1 | ||
| 90937-01445 |
UCF2# 11G |
1 | ||
| 90937-01352 |
UCF2# 16G |
1 | ||
| 90937-01354 |
UCF2# 20G |
1 | ||
| 90937-01346 |
UCF2# 5G |
1 | ||
| 90937-01475 |
UCF2# 3.5G |
1 | ||
| 90937-01476 |
UCF2# 4.5G |
1 | ||
| 90937-01348 |
UCF2# 8G |
1 | ||
| 90937-01446 |
UCF2# 13G |
1 | ||
| 90937-01447 |
UCF2# 15G |
1 | ||
| 90937-01474 |
UCF2# 2.5G |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-12249 |
UCF2# ﾏｰｸ 11 3 |
1 | ||
| 90105-12250 |
UCF2# ﾏｰｸ 11 8 |
1 | ||
| 90105-12248 |
UCF2# ﾏｰｸ 11 4 |
1 | ||
| 90105-12247 |
UCF2# ﾏｰｸ 11 2 |
1 | ||
| 90105-12264 |
UCF2# ﾏｰｸ 11 |
3 | ||
| 90105-12246 |
UCF2# ﾏｰｸ 11 1 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-12249 |
UCF2# ﾏｰｸ 11 3 |
1 | ||
| 90105-12250 |
UCF2# ﾏｰｸ 11 8 |
1 | ||
| 90105-12248 |
UCF2# ﾏｰｸ 11 4 |
1 | ||
| 90105-12247 |
UCF2# ﾏｰｸ 11 2 |
1 | ||
| 90105-12264 |
UCF2# ﾏｰｸ 11 |
3 | ||
| 90105-12246 |
UCF2# ﾏｰｸ 11 1 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-12128 |
UCF2# |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-12128 |
UCF2# |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90560-12059 |
UCF2# |
3 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90560-12059 |
UCF2# |
3 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-50030 |
UCF2# |
1 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10035 |
UCF2# 厚さ=13.5 |
2 | ||
| 90201-10034 |
UCF2# 厚さ=11.0 |
2 | ||
| 90201-10017 |
UCF2# 厚さ=9.0 |
2 | ||
| 90201-10106 |
UCF2# 厚さ=2.0 |
2 | ||
| 90201-10033 |
UCF2# 厚さ=6.5 |
2 | ||
| 90201-10008 |
UCF2# 厚さ=4.5 |
2 | ||
| 37328 - NUT, PROPELLER SHAFT ADJUSTING | ||||
| 37328-50010 |
UCF2# |
1 | ||
| 37334A - BOOT, SLIDING SHAFT | ||||
| 37334-50010 |
UCF2# |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
UCF2# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
UCF2# |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
UCF2# |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-50040 |
UCF2# |
2 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-50040 |
UCF2# |
2 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12264 |
UCF2# |
6 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12264 |
UCF2# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
UCF2# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
UCF2# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
UCF2# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
UCF2# |
6 | ||
| Common parts | ||||
| 90119-10204 | ||||
