UCF20-AEANK (1997)

Toyota Celsior

Production Jul 1997 - Aug 2000
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 7(9707- )

Click highlighted areas on diagram

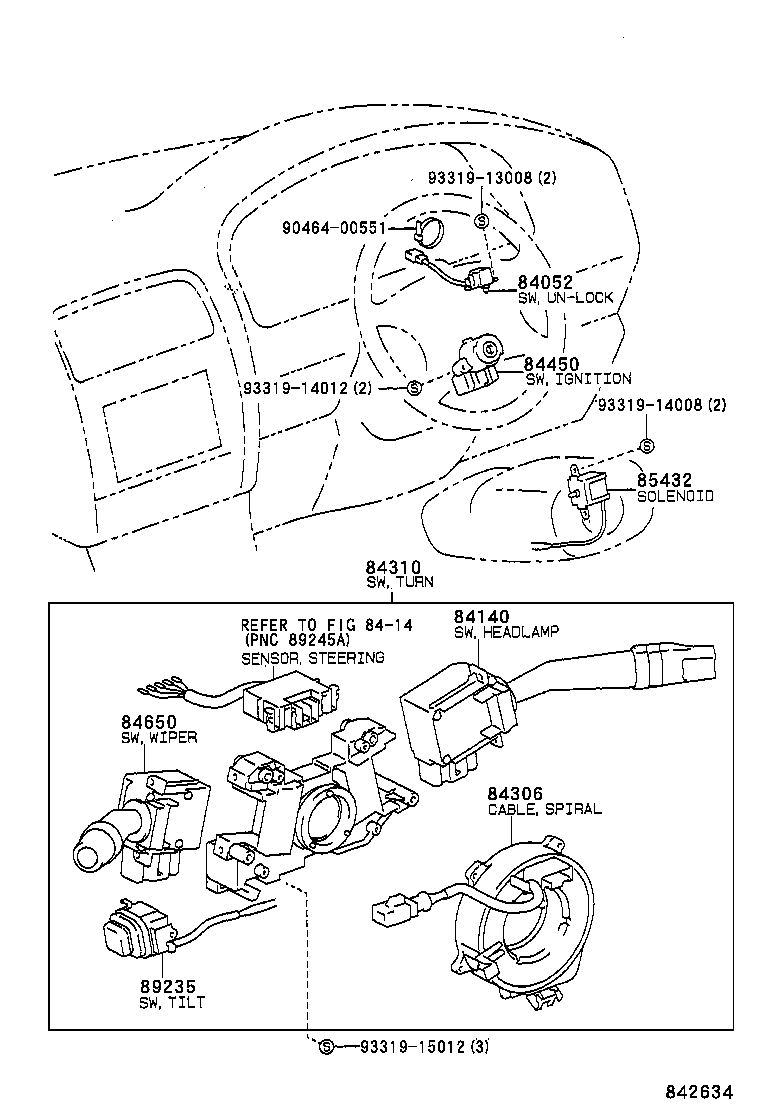

COMBINATION SWITCH

diagram 84052 8414 84140 84306 84310 84450 84650 85432 89235 9046400551 9331913008 9331914008 9331914012 9331915012
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070

UCF2#

 1
84052-35020

UCF2#

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-50110

UCF2#

 1
84140-50060

UCF2#

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-50130

UCF2#

 1
84306-50150

UCF2#

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-50441

UCF2#

 1
84310-50440

UCF2#

 1
84310-50420

UCF2#

ｱﾘ(ｳﾃｷｶﾝﾁ ｾﾐｵ-ﾄ ｶﾝｹﾂﾜｲﾊﾟ)

 1
84310-50390

UCF2#

 1
84310-50421

UCF2#

ｱﾘ(ｳﾃｷｶﾝﾁ ｾﾐｵ-ﾄ ｶﾝｹﾂﾜｲﾊﾟ)

 1
84310-50330

UCF20

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16080

UCF2#

 1
84450-50050

UCF2#

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-50130

UCF2#

ｱﾘ(ｳﾃｷｶﾝﾁ ｾﾐｵ-ﾄ ｶﾝｹﾂﾜｲﾊﾟ)

 1
84652-50060

UCF2#

 1
84652-50100

UCF2#

 1
85432 - SOLENOID, KEY INTER LOCK
85432-50020

UCF2#

 1
85432-50030

UCF2#

 1
89235 - SWITCH, TILT STEERING
89235-50070

UCF2#

 1
Common parts
90464-00551
93319-13008
93319-14008
93319-14012
93319-15012
Linked diagrams
8414
