UCF20-AEAGK (1997)
Toyota Celsior
ILLUST NO. 1 OF 2(9707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-50060 |
UCF2# |
1 | ||
| 83110-50430 |
UCF2# |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF2# ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｻｲﾄﾞ |
1 | ||
| 83119-50130 |
UCF2# ﾀｺﾒ-ﾀ ｻｲﾄﾞ |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF2# ｽﾋﾟ-ﾄﾞﾒ-ﾀ ｻｲﾄﾞ |
1 | ||
| 83119-50130 |
UCF2# ﾀｺﾒ-ﾀ ｻｲﾄﾞ |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-5A310 |
UCF2#..B,C |
1 | ||
| 83131-5A330 |
UCF20..A |
1 | ||
| 83131-5A310 |
UCF20..A ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) |
1 | ||
| 83225-50060 |
UCF2# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50290 |
UCF2# |
1 | ||
| 83841-50060 |
UCF2# |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50150 |
UCF2# |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-50050 |
UCF2# |
1 | ||
| 83134-50370 |
UCF2# |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-50050 |
UCF2# |
1 | ||
| 83134-50410 |
UCF2# |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83823-50010 |
UCF2# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50110 |
UCF2# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-50010 |
UCF2# |
1 | ||
| 83242-50070 |
UCF2# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-50050 |
UCF2# |
1 | ||
| 83243-50130 |
UCF2# |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-50050 |
UCF2# |
1 | ||
| 83244-50170 |
UCF2# |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-5A510 |
UCF2# |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83277-50240 |
UCF2# |
1 | ||
| 83277-50241 |
UCF2# |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-50240 |
UCF2# |
1 | ||
| 83291B - COMPUTER ASSY | ||||
| 83247-5A490 |
UCF2# |
1 | ||
| 83862-50010 |
UCF2# |
1 | ||
| 83864 - PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER) | ||||
| 83864-50010 |
UCF2# |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
UCF2# |
1 | ||
| Common parts | ||||
| 83134-50070 | ||||
| 83814-30710 | ||||
| 90099-00182 | ||||
| 90099-00230 | ||||
| 90099-00262 | ||||
| 90099-00929 | ||||
| 93540-13008 | ||||
| 93540-13014 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

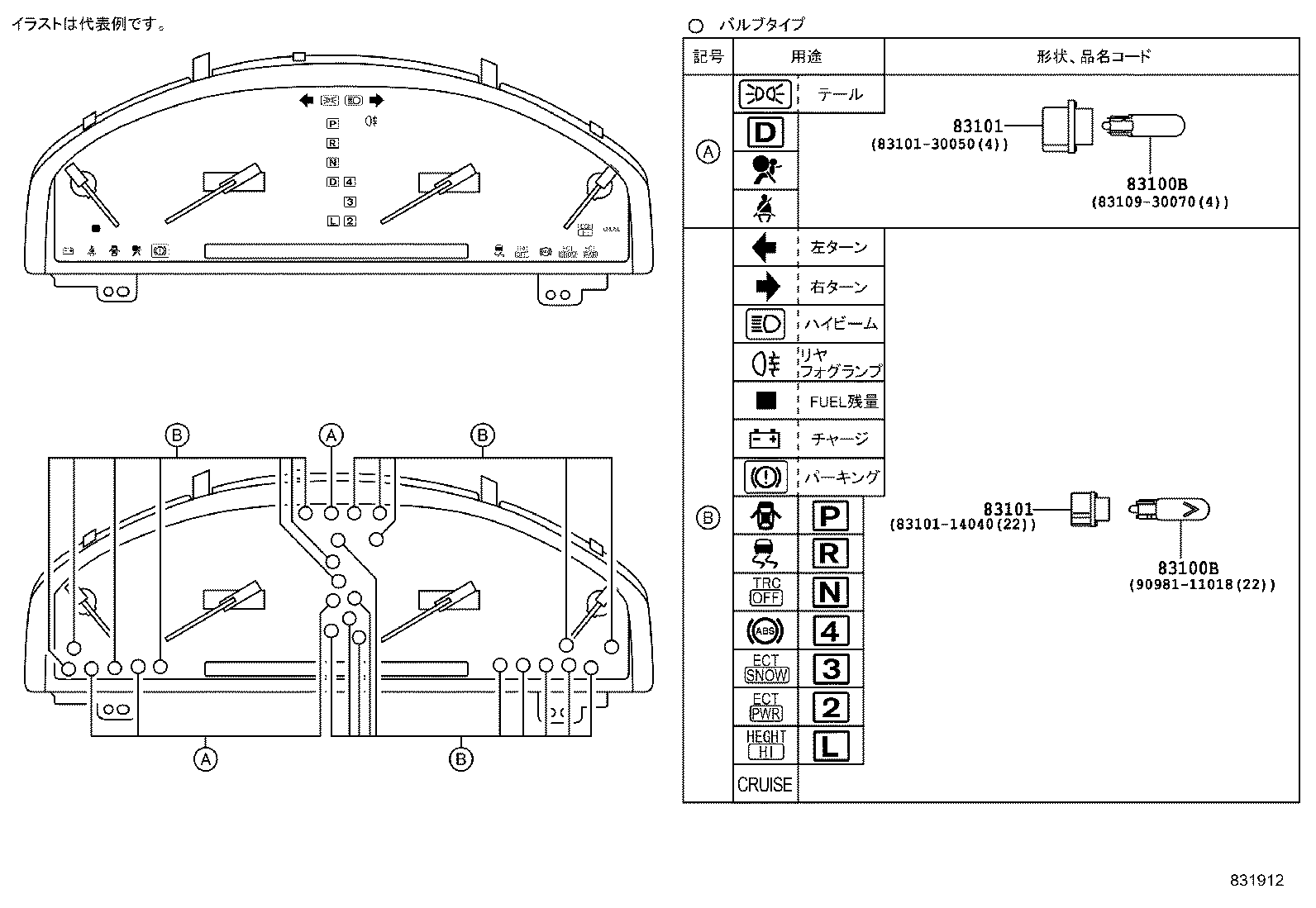

ILLUST NO. 2 OF 2(9707- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF2# 14V 2.0W,ｿｹｯﾄなし,D,ｼ-ﾄﾍﾞﾙﾄ,ｴｱﾊﾞｯｸﾞ,ﾃｰﾙ ｲﾝｼﾞｹｰﾀ |
4 | ||
| 90981-11018 |
UCF2# 12V 1.2W ｿｹｯﾄ無し |
27 | ||
| 83109-30070 |
UCF2# 14V 2.0W,ｿｹｯﾄなし,NO.2 |
4 | ||
| 90981-11018 |
UCF2# 12V 1.2W ｿｹｯﾄ無し,NO.1 |
23 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF2# 14V 2.0W,ｿｹｯﾄなし,D,ｼ-ﾄﾍﾞﾙﾄ,ｴｱﾊﾞｯｸﾞ,ﾃｰﾙ ｲﾝｼﾞｹｰﾀ |
4 | ||
| 90981-11018 |
UCF2# 12V 1.2W ｿｹｯﾄ無し |
27 | ||
| 83109-30070 |
UCF2# 14V 2.0W,ｿｹｯﾄなし,NO.2 |
4 | ||
| 90981-11018 |
UCF2# 12V 1.2W ｿｹｯﾄ無し,NO.1 |
23 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF2# BULB:12V 1.4W |
27 | ||
| 83101-30050 |
UCF2# NO.2 |
4 | ||
| 83101-30050 |
UCF2# BULB:14V 2.0W |
4 | ||
| 83101-14040 |
UCF2# NO.1 |
23 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF2# BULB:12V 1.4W |
27 | ||
| 83101-30050 |
UCF2# NO.2 |
4 | ||
| 83101-30050 |
UCF2# BULB:14V 2.0W |
4 | ||
| 83101-14040 |
UCF2# NO.1 |
23 | ||
